Mounting

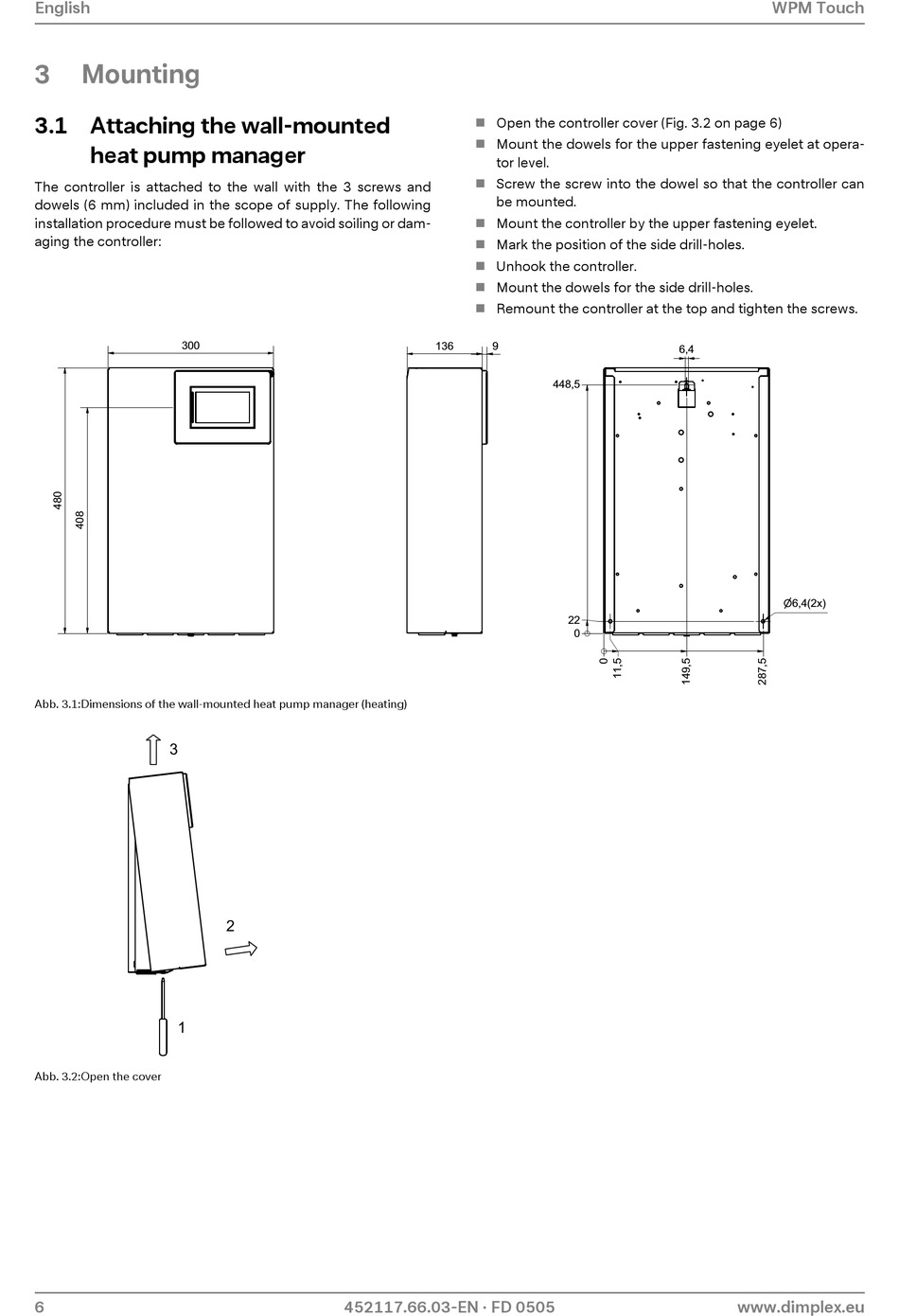

3.1 Attaching the wall-mounted
heat pump manager
The controller is attached to the wall with the 3 screws and
dowels (6 mm) included in the scope of supply. The following
installation procedure must be followed to avoid soiling or dam-
aging the controller:
300
Abb. 3.1:Dimensions of the wall-mounted heat pump manager (heating)
3
1
Abb. 3.2:Open the cover
6
2
452117.66.03-EN · FD 0505
Open the controller cover (Fig. 3.2 on page 6)

 Mount the dowels for the upper fastening eyelet at opera-
tor level.
 Screw the screw into the dowel so that the controller can
be mounted.
Mount the controller by the upper fastening eyelet.

 Mark the position of the side drill-holes.
Unhook the controller.

 Mount the dowels for the side drill-holes.
Remount the controller at the top and tighten the screws.

136 9
448,5
22
0
WPM Touch
6,4
6,4(2x)
