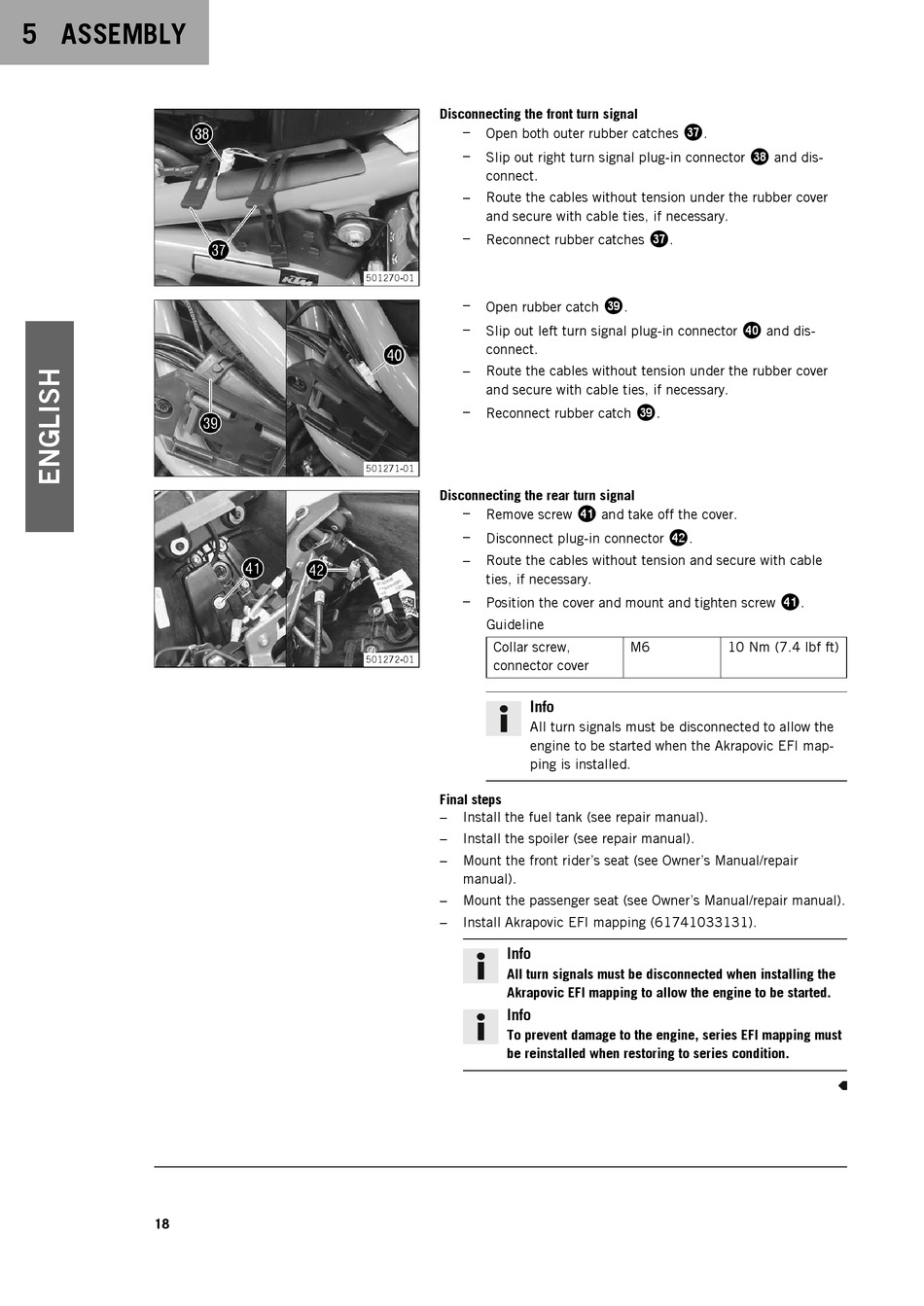

Disconnecting the front turn signal
–
Open both outer rubber catches
–
Slip out right turn signal plug-in connector
connect.
–
Route the cables without tension under the rubber cover
and secure with cable ties, if necessary.
–
Reconnect rubber catches
501270-01
–
Open rubber catch
–
Slip out left turn signal plug-in connector
connect.
–
Route the cables without tension under the rubber cover
and secure with cable ties, if necessary.
–
Reconnect rubber catch
501271-01
Disconnecting the rear turn signal
–
Remove screw
–
Disconnect plug-in connector
–
Route the cables without tension and secure with cable
ties, if necessary.
–
Position the cover and mount and tighten screw
Guideline
Collar screw,
501272-01
connector cover
Info
All turn signals must be disconnected to allow the
engine to be started when the Akrapovic EFI map-
ping is installed.
Final steps
–
Install the fuel tank (see repair manual).
–
Install the spoiler (see repair manual).
–
Mount the front rider's seat (see Owner's Manual/repair
manual).
–
Mount the passenger seat (see Owner's Manual/repair manual).
–
Install Akrapovic EFI mapping (61741033131).
Info
All turn signals must be disconnected when installing the
Akrapovic EFI mapping to allow the engine to be started.
Info
To prevent damage to the engine, series EFI mapping must
be reinstalled when restoring to series condition.
