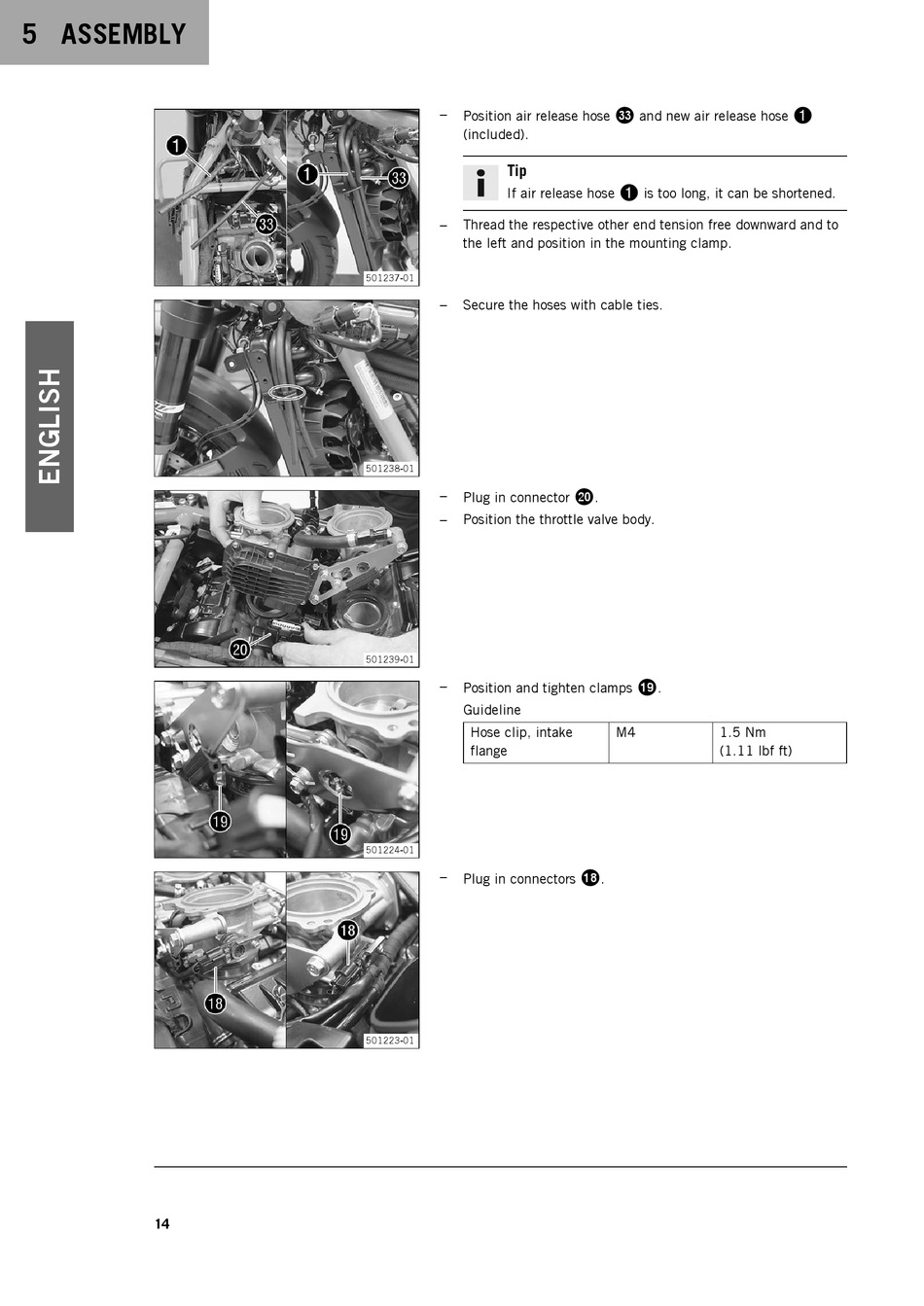

5 ASSEMBLY
14
–
Position air release hose
(included).
Tip
If air release hose
–
Thread the respective other end tension free downward and to
the left and position in the mounting clamp.
501237-01
–
Secure the hoses with cable ties.
501238-01
–
Plug in connector
–
Position the throttle valve body.
501239-01
–
Position and tighten clamps
Guideline
Hose clip, intake
flange
501224-01
–
Plug in connectors
501223-01
dn
and new air release hose
1
is too long, it can be shortened.
ck
.
bt
.
M4 1.5 Nm
(1.11 lbf ft)
bs
.
1
