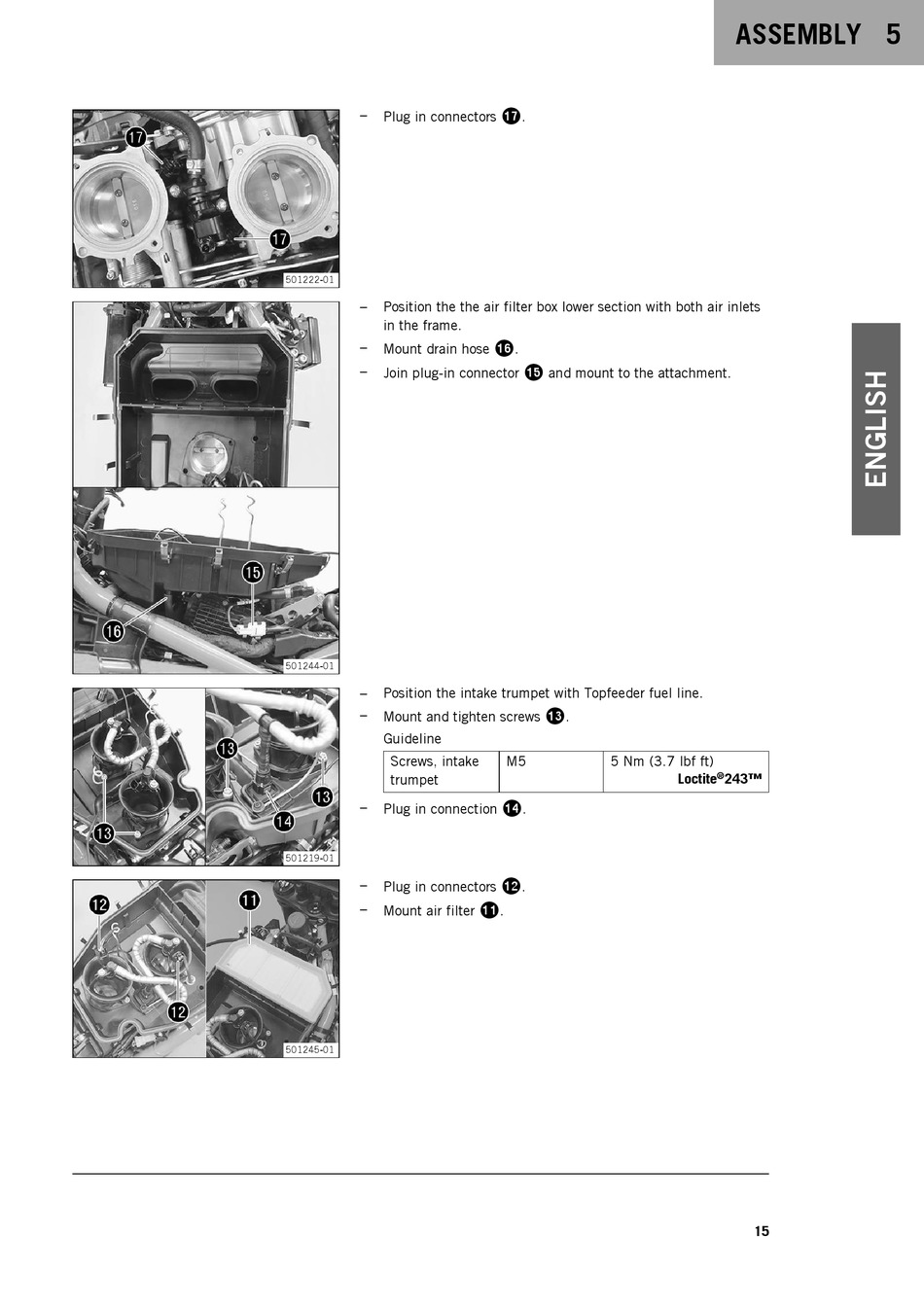

KTM AKRAPOVIC EVOLUTION LINE Montageanleitung Seite 37

–
Plug in connectors
501222-01
–
Position the the air filter box lower section with both air inlets
in the frame.
–
Mount drain hose
–
Join plug-in connector
501244-01
–
Position the intake trumpet with Topfeeder fuel line.
–
Mount and tighten screws
Guideline
Screws, intake
trumpet
–
Plug in connection
501219-01
–
Plug in connectors
–
Mount air filter
501245-01
br
.
bq
.
bp
and mount to the attachment.
bn
.
M5 5 Nm (3.7 lbf ft)
bo
.
bm
.
bl
.
ASSEMBLY 5
Loctite ® 243™
15
