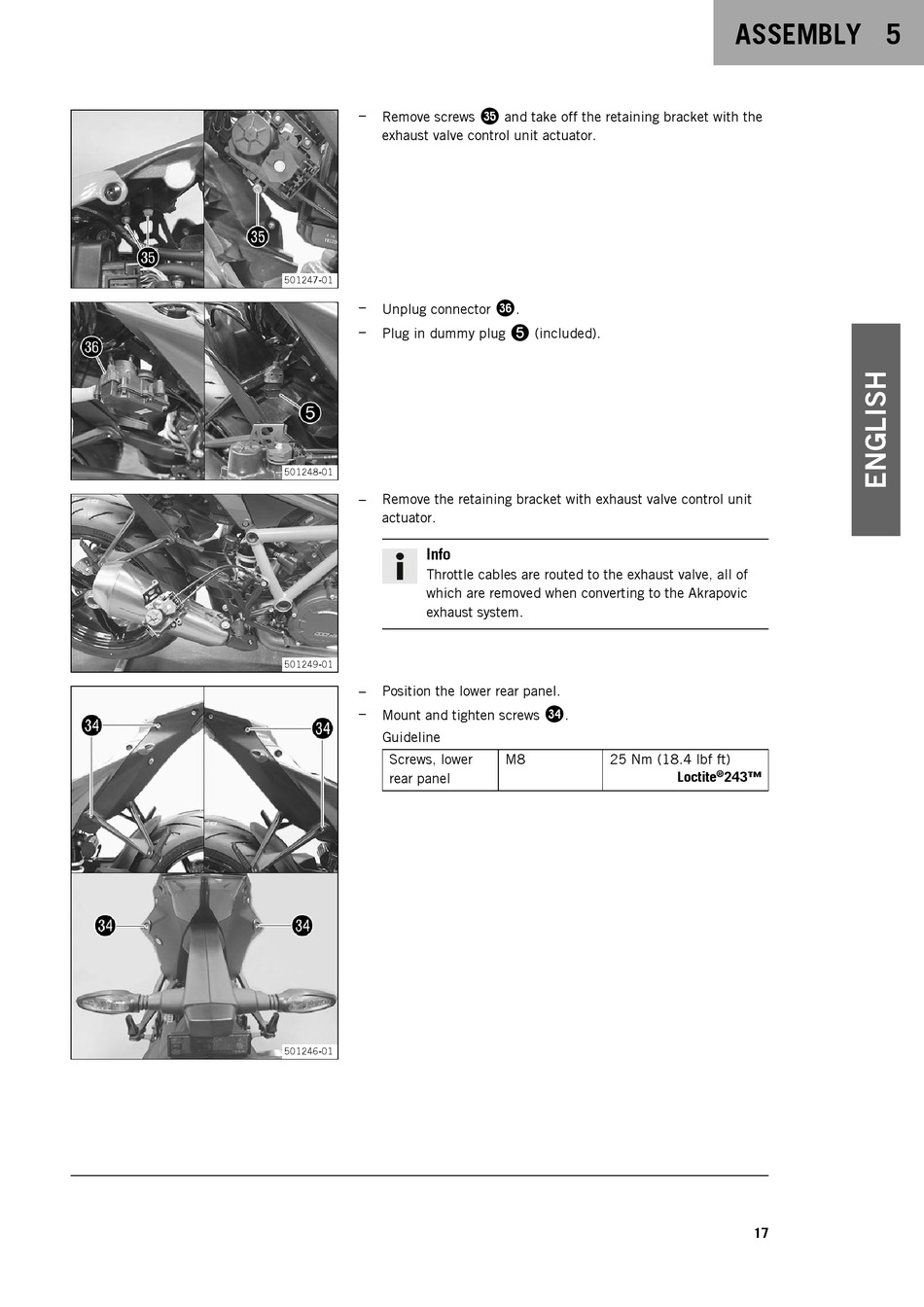

Remove screws
exhaust valve control unit actuator.
501247-01
–
Unplug connector
–
Plug in dummy plug
501248-01
–
Remove the retaining bracket with exhaust valve control unit
actuator.
Info
Throttle cables are routed to the exhaust valve, all of
which are removed when converting to the Akrapovic
exhaust system.
501249-01
–
Position the lower rear panel.
–
Mount and tighten screws
Guideline
Screws, lower
rear panel
501246-01
dp
and take off the retaining bracket with the
dq
.
5
(included).
do
.
M8 25 Nm (18.4 lbf ft)
ASSEMBLY 5
Loctite ® 243™
17
