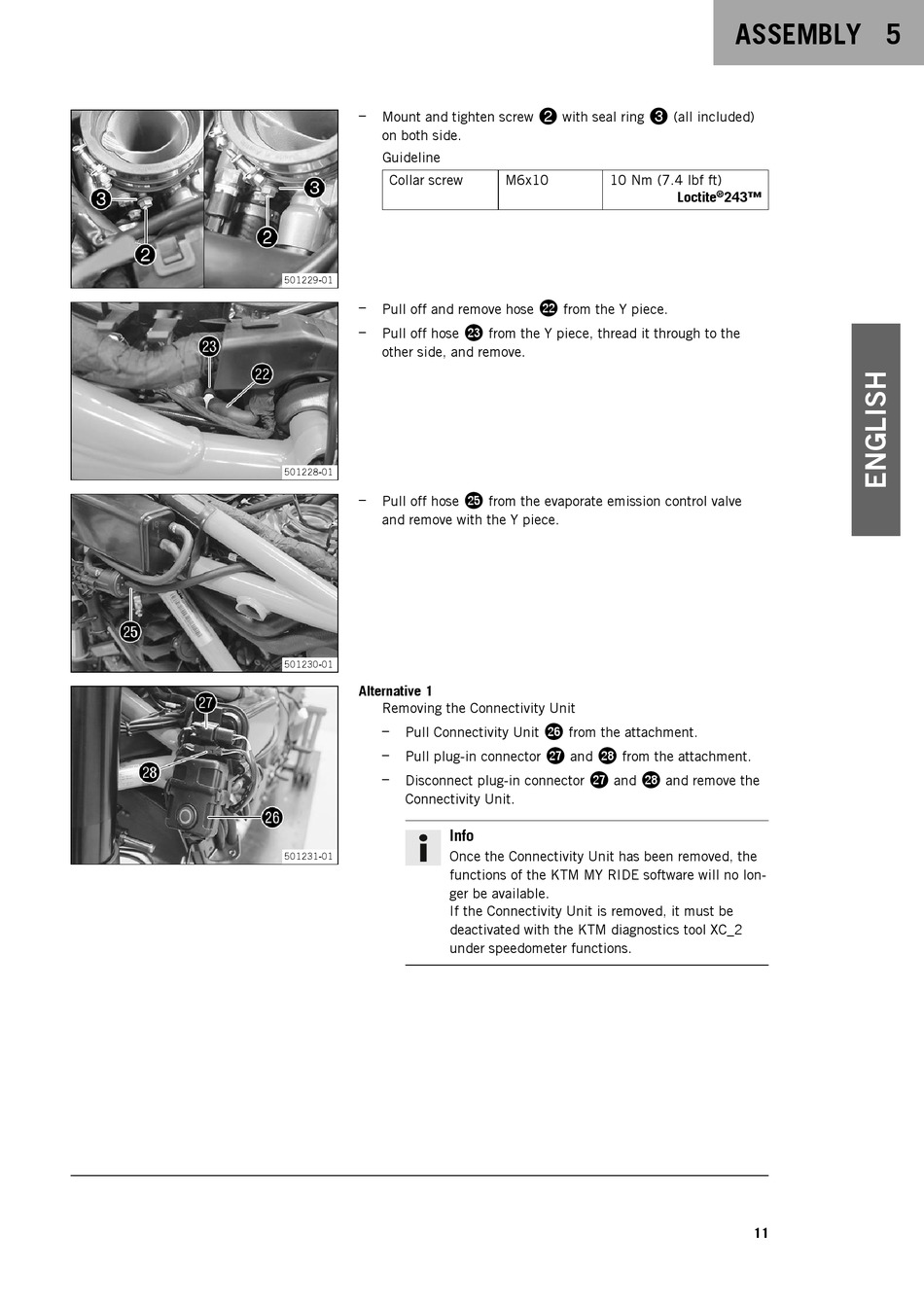

KTM AKRAPOVIC EVOLUTION LINE Montageanleitung Seite 33

–
Mount and tighten screw
on both side.
Guideline
Collar screw
501229-01
–
Pull off and remove hose
–
Pull off hose
other side, and remove.
501228-01
–
Pull off hose
and remove with the Y piece.
501230-01
Alternative 1
Removing the Connectivity Unit
–
Pull Connectivity Unit
–
Pull plug-in connector
–
Disconnect plug-in connector
Connectivity Unit.
Info
Once the Connectivity Unit has been removed, the
501231-01
functions of the KTM MY RIDE software will no lon-
ger be available.
If the Connectivity Unit is removed, it must be
deactivated with the KTM diagnostics tool XC_2
under speedometer functions.
2
with seal ring
M6x10 10 Nm (7.4 lbf ft)
cm
from the Y piece.
cn
from the Y piece, thread it through to the
cp
from the evaporate emission control valve
cq
from the attachment.
cr cs
and from the attachment.
cr
and
ASSEMBLY 5
3
(all included)
Loctite ® 243™
cs
and remove the
11
