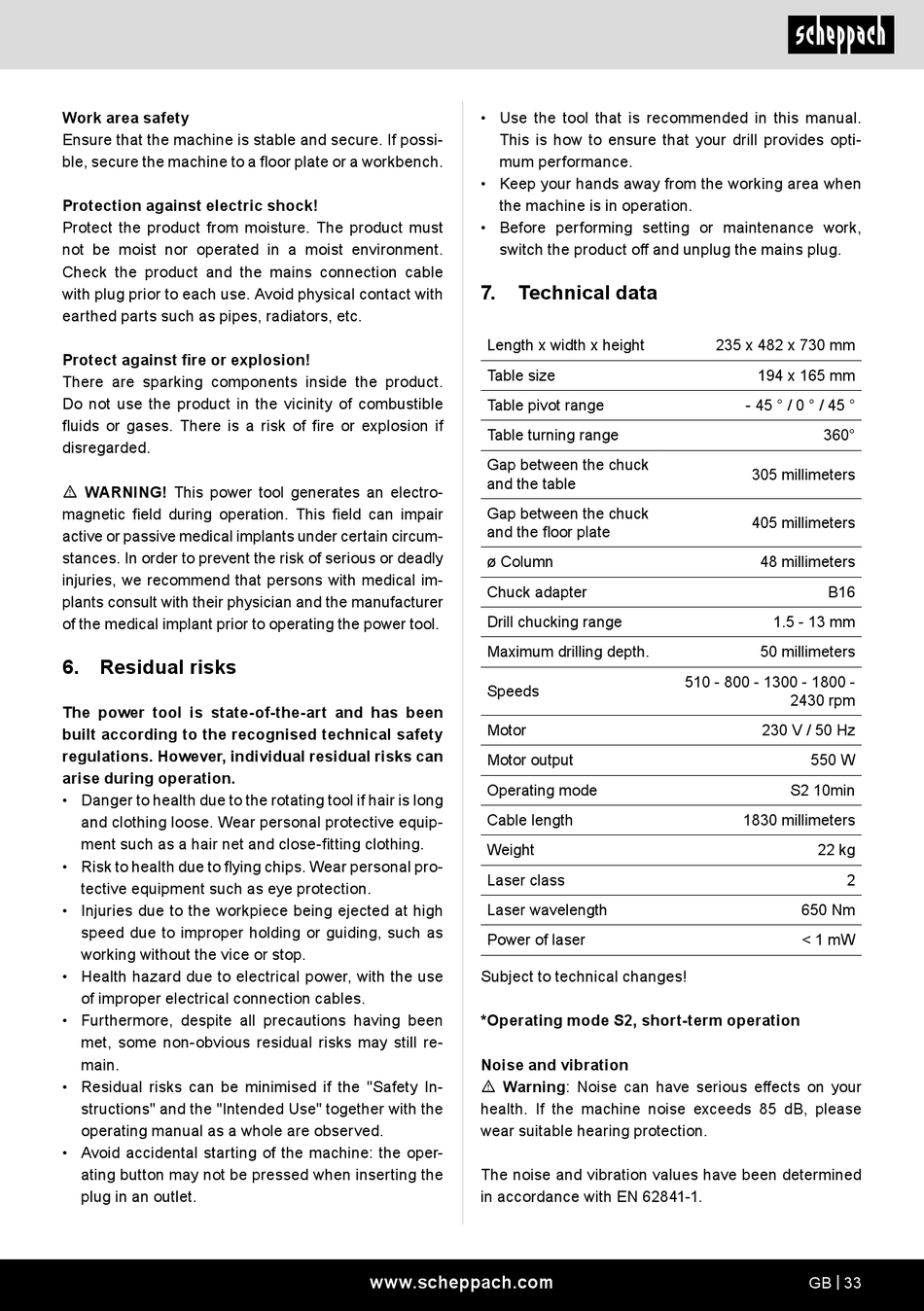

Work area safety
Ensure that the machine is stable and secure. If possi-
ble, secure the machine to a floor plate or a workbench.
Protection against electric shock!
Protect the product from moisture. The product must
not be moist nor operated in a moist environment.
Check the product and the mains connection cable
with plug prior to each use. Avoid physical contact with
earthed parts such as pipes, radiators, etc.
Protect against fire or explosion!
There are sparking components inside the product.
Do not use the product in the vicinity of combustible
fluids or gases. There is a risk of fire or explosion if
disregarded.
m WARNING! This power tool generates an electro-
magnetic field during operation. This field can impair
active or passive medical implants under certain circum-
stances. In order to prevent the risk of serious or deadly
injuries, we recommend that persons with medical im-
plants consult with their physician and the manufacturer
of the medical implant prior to operating the power tool.

6. Residual risks

The power tool is state-of-the-art and has been
built according to the recognised technical safety
regulations. However, individual residual risks can
arise during operation.
• Danger to health due to the rotating tool if hair is long
and clothing loose. Wear personal protective equip-
ment such as a hair net and close-fitting clothing.
• Risk to health due to flying chips. Wear personal pro-
tective equipment such as eye protection.
• Injuries due to the workpiece being ejected at high
speed due to improper holding or guiding, such as
working without the vice or stop.
• Health hazard due to electrical power, with the use
of improper electrical connection cables.
• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "Safety In-
structions" and the "Intended Use" together with the
operating manual as a whole are observed.
• Avoid accidental starting of the machine: the oper-
ating button may not be pressed when inserting the
plug in an outlet.
• Use the tool that is recommended in this manual.
This is how to ensure that your drill provides opti-
mum performance.
• Keep your hands away from the working area when
the machine is in operation.
• Before performing setting or maintenance work,
switch the product off and unplug the mains plug.
7.

Technical data

Length x width x height
Table size
Table pivot range
Table turning range
Gap between the chuck
and the table
Gap between the chuck
and the floor plate
ø Column
Chuck adapter
Drill chucking range
Maximum drilling depth.
Speeds
Motor
Motor output
Operating mode
Cable length
Weight
Laser class
Laser wavelength
Power of laser
Subject to technical changes!
*Operating mode S2, short-term operation
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
The noise and vibration values have been determined
in accordance with EN 62841-1.
www.scheppach.com
235 x 482 x 730 mm
194 x 165 mm
- 45 ° / 0 ° / 45 °
360°
305 millimeters
405 millimeters
48 millimeters
B16
1.5 - 13 mm
50 millimeters
510 - 800 - 1300 - 1800 -
2430 rpm
230 V / 50 Hz
550 W
S2 10min
1830 millimeters
22 kg
2
650 Nm
< 1 mW
GB | 33
