Implementierte Protokolle im UNIGATE® MB

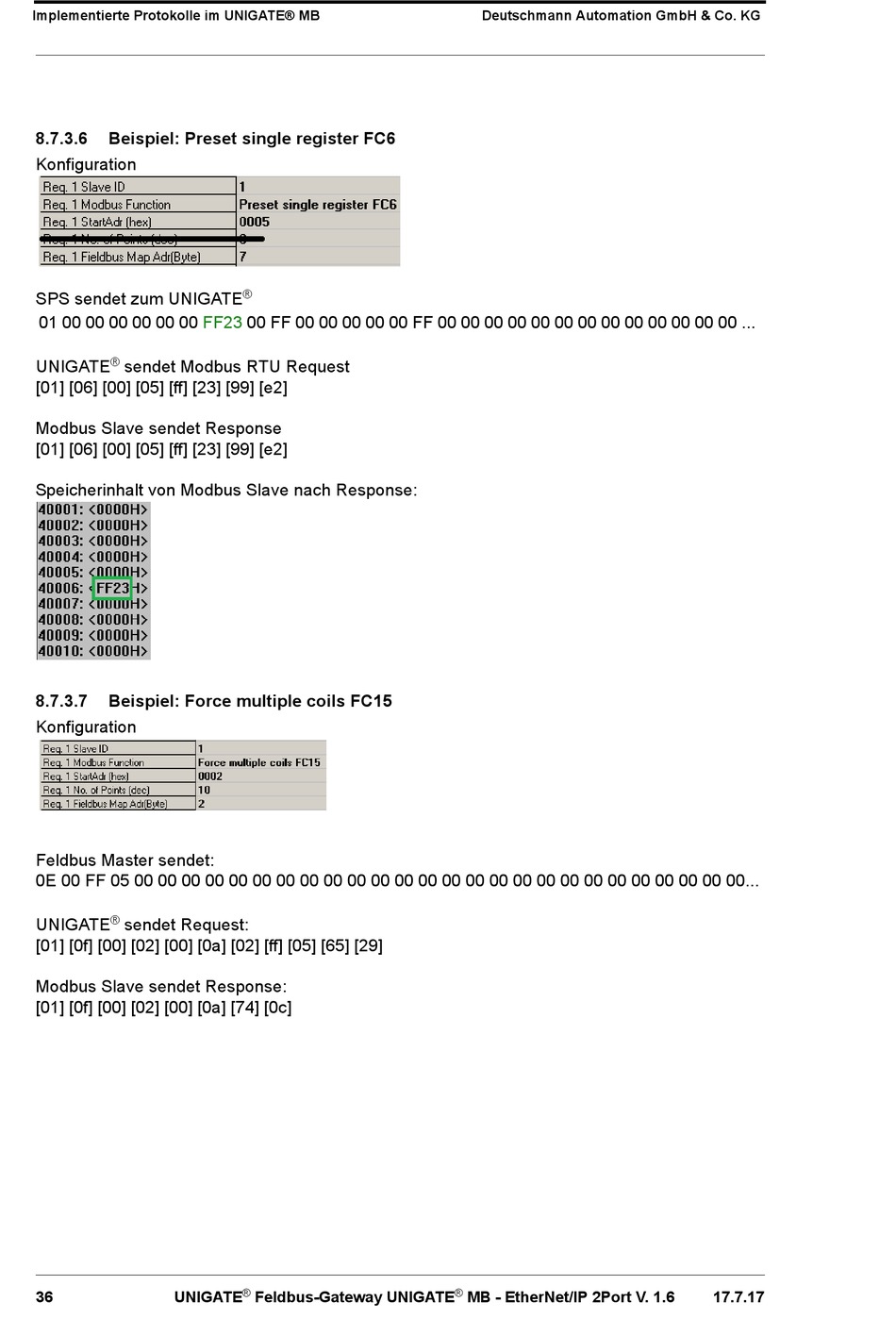

8.7.3.6

Beispiel: Preset single register FC6

Konfiguration
SPS sendet zum UNIGATE
01 00 00 00 00 00 00
®
UNIGATE sendet Modbus RTU Request
[01] [06] [00] [05] [ff] [23] [99] [e2] 
Modbus Slave sendet Response
[01] [06] [00] [05] [ff] [23] [99] [e2] 

Speicherinhalt von Modbus Slave nach Response:
8.7.3.7

Beispiel: Force multiple coils FC15

Konfiguration
Feldbus Master sendet:
0E 00 FF 05 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00...
®
UNIGATE sendet Request:
[01] [0f] [00] [02] [00] [0a] [02] [ff] [05] [65] [29]
Modbus Slave sendet Response:
[01] [0f] [00] [02] [00] [0a] [74] [0c]
36 UNIGATE
®
00 FF 00 00 00 00 00 FF 00 00 00 00 00 00 00 00 00 00 00 00 00 ... 
FF23
®
