the plunge saw only against the work
piece during operation.
•
With the correct forward speed you pre-
vent overheating of the saw blade, and
melting when cutting plastics.
STRAIGHT CUTS
1.
Set the desired plunge depth.
2.
To switch on the saw press the ON/OFF
switch (2a+b). Press the locking switch (1)
and push the motor down. Guide the saw
forward to cut.
PLUNGE CUTS
1.
Set the desired plunge depth.
2.
To switch on the saw press the ON/OFF
switch (2a+b). Press the locking switch (1)
and push the motor down. Guide the saw
forward to cut.
Note: To prevent the saw from kicking
back during plunge cuts follow these
steps:
•
Always place the plunge saw with the rear
edge of the base plate (4) against a fixed
limit stop.
•
Hold the plunge saw in both hands and
slowly lower the saw blade.
CHANGE SAW BLADE / DIAMOND BLADE
Before any maintenance work always switch
off the plunge saw and disconnect from mains
power.
1.
Press the locking switch (1) down and
push the motor down.
2.
Press and hold the spindle arrester (12)
down.
3.
Use a 5 mm Allen key (17) to turn the
screw (16) at the saw blade slightly clock-
wise or counter-clockwise until the spindle
clicks into place.
4.
Use the Allen key to loosen the screw
counter-clockwise. Remove the flange and
the saw blade.
5.
Clean the flange and replace the saw
blade.
Note: The rotation direction arrows of saw
blade and saw must be aligned!
7062348_T-Raxx-Compact_Ma_#1507-10.indb 19
6.
Press and hold the spindle arrester (12)
and tighten the screw.

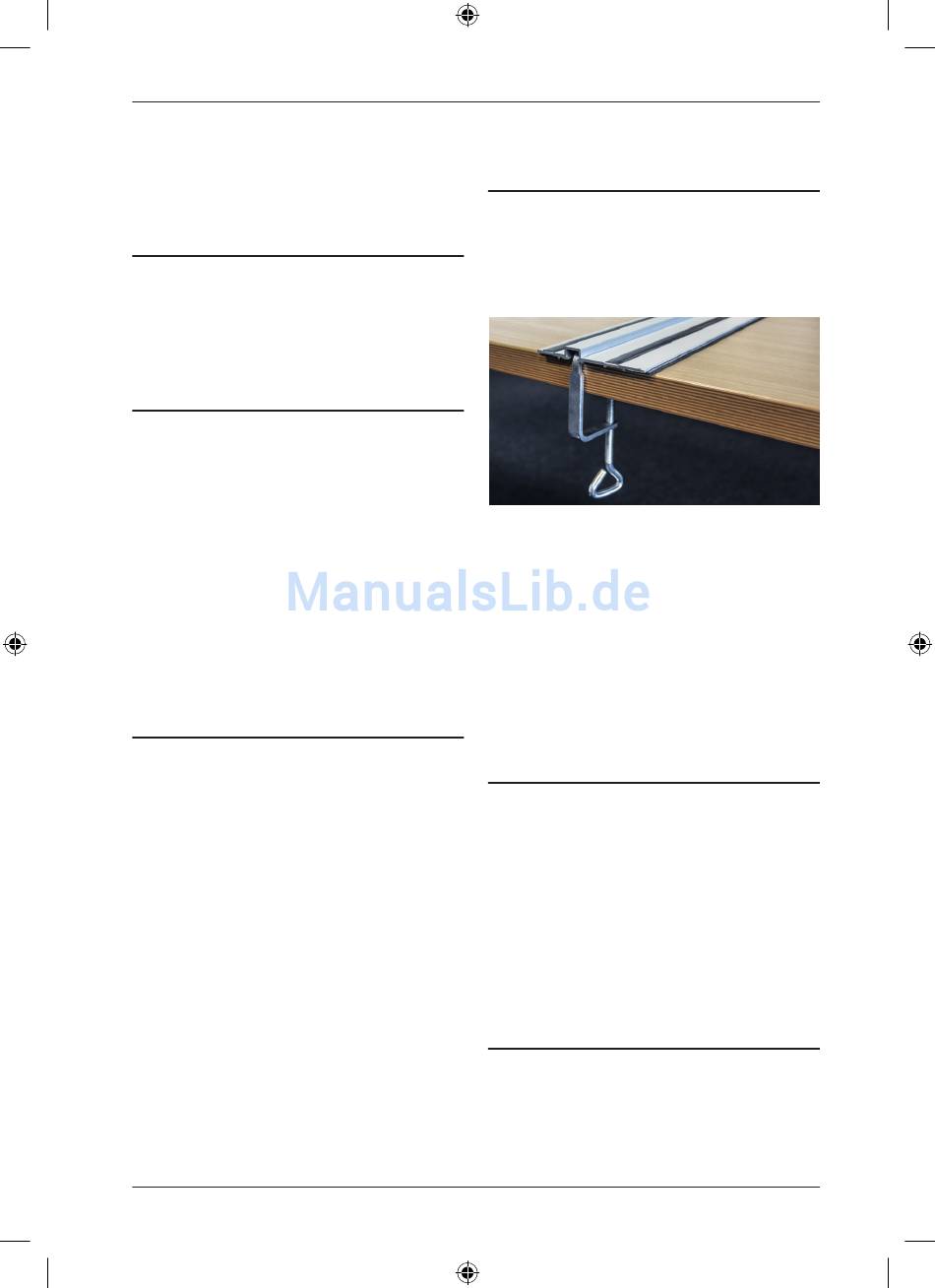

GUIDE RAIL(S) AND CLAMPS
The guide rails allow precise and clean straight
cuts, mitre cuts and fitting. The rails also pro-
tect the work piece surface from damages.
Fixing with the clamps ensures solid grip and
safe work.
1.
Place the guide rail on the work piece and
fix the guide rail with the clamps. Slide the
bar into the groove of the guide rail and
tighten the clamp with the lever.
Note: Place the guide rail with the black
foam strips on the work piece.
2.
Place the plunge saw on the guide rail.
The base plate has a groove (10), which
exactly fits into the guide ridge (14) of the
rail.
FINE ADJUSTMENT OF PLUNGE SAW
PLAY ON GUIDE RAIL
The play of the base plate on the guide rail can
be reduced to minimum with the fine adjust-
ment screws (5).
1.
Loosen the fine adjustment screws
counter-clockwise.
2.
Turn both fine adjustment screws (5)
clockwise to minimize the play between
base plate and guide rail, if necessary.
3.
Fasten the fine adjustment screws
clockwise.
CONNECTING RODS FOR GUIDE RAILS
1.
To connect both guide rails slide the first
connecting rod from the bottom into the
groove of the guide rail.
2.
Slide the other connecting rod into the
second groove.
.
English
19
01-09-15 10:03
