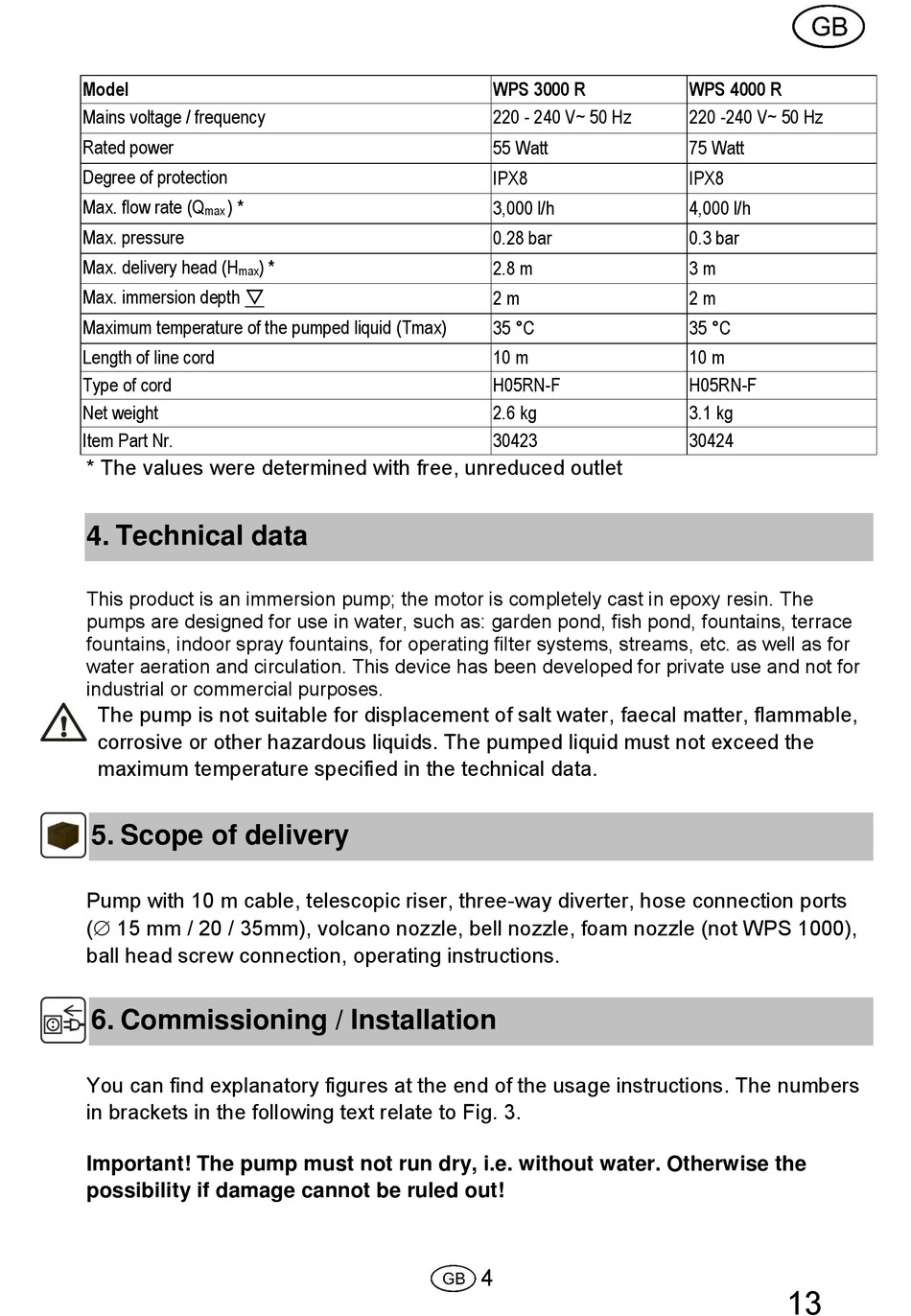

Technical Data; Scope Of Delivery; Commissioning / Installation - T.I.P. WPS 2000 R Gebrauchsanweisung

Model
Mains voltage / frequency
Rated power
Degree of protection
Max. flow rate (Q ) *
max
Max. pressure
Max. delivery head (H
max
Max. immersion depth 
Maximum temperature of the pumped liquid (Tmax)
Length of line cord
Type of cord
Net weight
Item Part Nr.
* The values were determined with free, unreduced outlet

4. Technical data

This product is an immersion pump; the motor is completely cast in epoxy resin. The
pumps are designed for use in water, such as: garden pond, fish pond, fountains, terrace
fountains, indoor spray fountains, for operating filter systems, streams, etc. as well as for
water aeration and circulation. This device has been developed for private use and not for
industrial or commercial purposes.
The pump is not suitable for displacement of salt water, faecal matter, flammable,
corrosive or other hazardous liquids. The pumped liquid must not exceed the
maximum temperature specified in the technical data.

5. Scope of delivery

Pump with 10 m cable, telescopic riser, three-way diverter, hose connection ports
( 15 mm / 20 / 35mm), volcano nozzle, bell nozzle, foam nozzle (not WPS 1000),
ball head screw connection, operating instructions.

6. Commissioning / Installation

You can find explanatory figures at the end of the usage instructions. The numbers
in brackets in the following text relate to Fig. 3.
Important! The pump must not run dry, i.e. without water. Otherwise the
possibility if damage cannot be ruled out!
) *
WPS 3000 R
220 - 240 V~ 50 Hz
55 Watt
IPX8
3,000 l/h
0.28 bar
2.8 m
2 m
35 °C
10 m
H05RN-F
2.6 kg
30423
4
WPS 4000 R
220 -240 V~ 50 Hz
75 Watt
IPX8
4,000 l/h
0.3 bar
3 m
2 m
35 °C
10 m
H05RN-F
3.1 kg
30424
13
