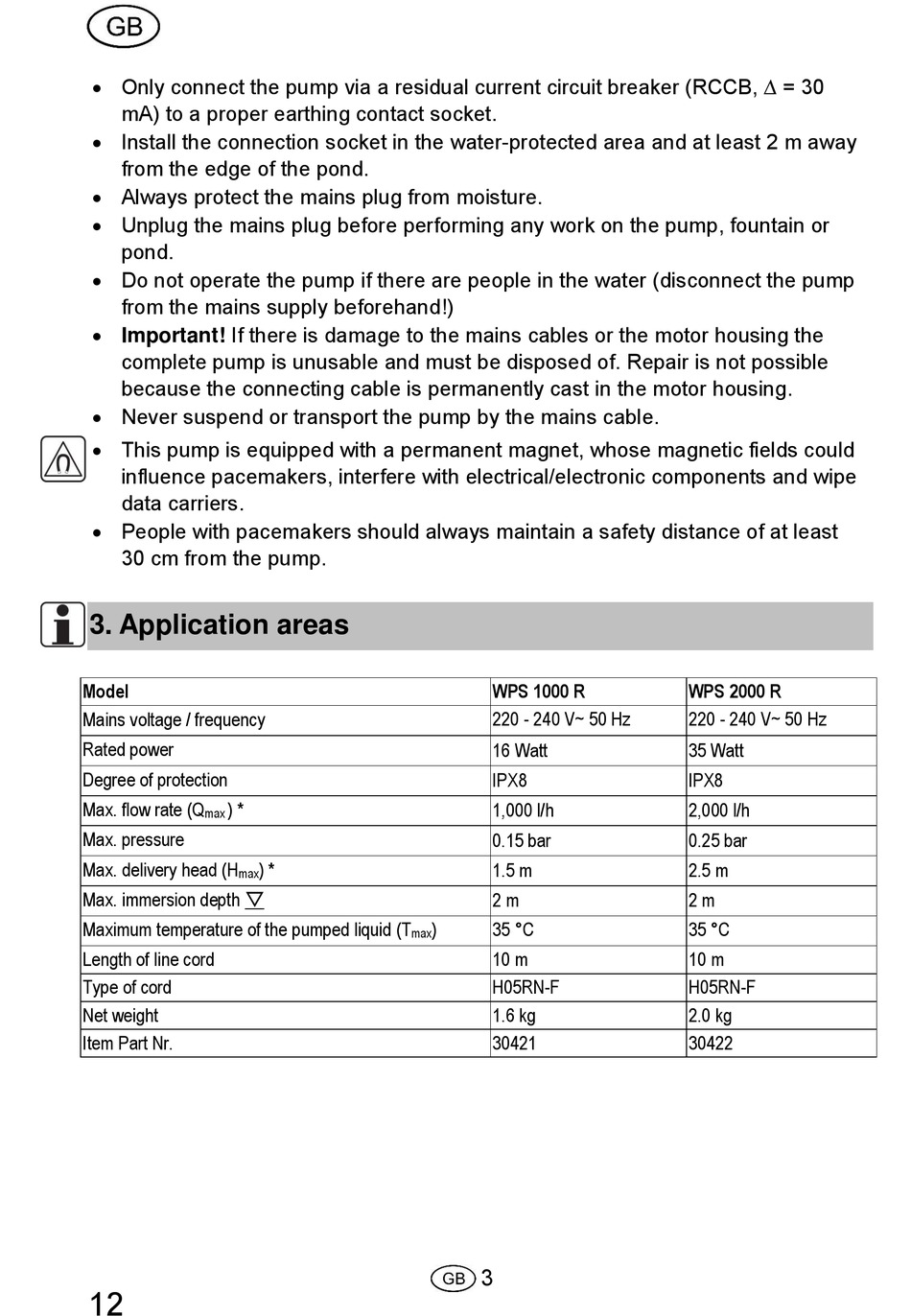

Application Areas - T.I.P. WPS 2000 R Gebrauchsanweisung

 Only connect the pump via a residual current circuit breaker (RCCB, ∆ = 30
mA) to a proper earthing contact socket.
 Install the connection socket in the water-protected area and at least 2 m away
from the edge of the pond.
 Always protect the mains plug from moisture.
 Unplug the mains plug before performing any work on the pump, fountain or
pond.
 Do not operate the pump if there are people in the water (disconnect the pump
from the mains supply beforehand!)
 Important! If there is damage to the mains cables or the motor housing the
complete pump is unusable and must be disposed of. Repair is not possible
because the connecting cable is permanently cast in the motor housing.
 Never suspend or transport the pump by the mains cable.
 This pump is equipped with a permanent magnet, whose magnetic fields could
influence pacemakers, interfere with electrical/electronic components and wipe
data carriers.
 People with pacemakers should always maintain a safety distance of at least
30 cm from the pump.

3. Application areas

Model
Mains voltage / frequency
Rated power
Degree of protection
Max. flow rate (Q ) *
max
Max. pressure
Max. delivery head (H
max
Max. immersion depth 
Maximum temperature of the pumped liquid (T
Length of line cord
Type of cord
Net weight
Item Part Nr.
12
) *
max
WPS 1000 R
220 - 240 V~ 50 Hz
16 Watt
IPX8
1,000 l/h
0.15 bar
1.5 m
2 m
35 °C
)
10 m
H05RN-F
1.6 kg
30421
3
WPS 2000 R
220 - 240 V~ 50 Hz
35 Watt
IPX8
2,000 l/h
0.25 bar
2.5 m
2 m
35 °C
10 m
H05RN-F
2.0 kg
30422
