Connection - Led2Work Systemled Evo Betriebsanleitung

5 | Connection

Suitable connection material, cables and accessories can be found in the accessory range of LED2WORK.
The light has an input for power supply via a connection jack Wieland GST 18/3. About this connector and with suitable
connection material the light is connected with a AC electric power supply system or at a same proper light for power
supply via electrical interlinking.
When the LED light has been correctly mounted and connected, it can be switched on using the switch on the housing
(C). The following accessories are optionally available for switching and dimming:
SYTEMLED EVO control device (dimming/switching), connection cable 3m
SYTEMLED EVO control device (dimming/switching), connecting cable 5m
SYSTEMLED EVO memory stick
A SYSTEMLED EVO control device is connected to the input (B). The control device can be used to switch the light and
dim it down to a light intensity of 10%. The control device can be disconnected during operation and used on a second
SYSTEMLED EVO.
If the brightness level set via the control device is to be saved on the first SYSTEMLED EVO, the SYSTEMLED EVO memo-
ry stick must be plugged into input (B) after removing the control device. Without an attached control unit or a memory
stick in input (B), a SYSTEMLED EVO always starts at 100% brightness after being switched off and on again.
12 | BA SYSTEMLED EVO . BA 11/2024
Do not connect a switched-on light to AC power. Hot plugging can destroy the LED chips.
Through-wiring (cascadable): With through-wiring you can electric-chain several lumin-
ares. The first luminare get the power supply connection and the following lights are linked
with Wieland GST18 cables via outputs and inputs.
Cascadable: The whole amperage of all chained lights may not exeed over the fuse
rating of the power supply system.

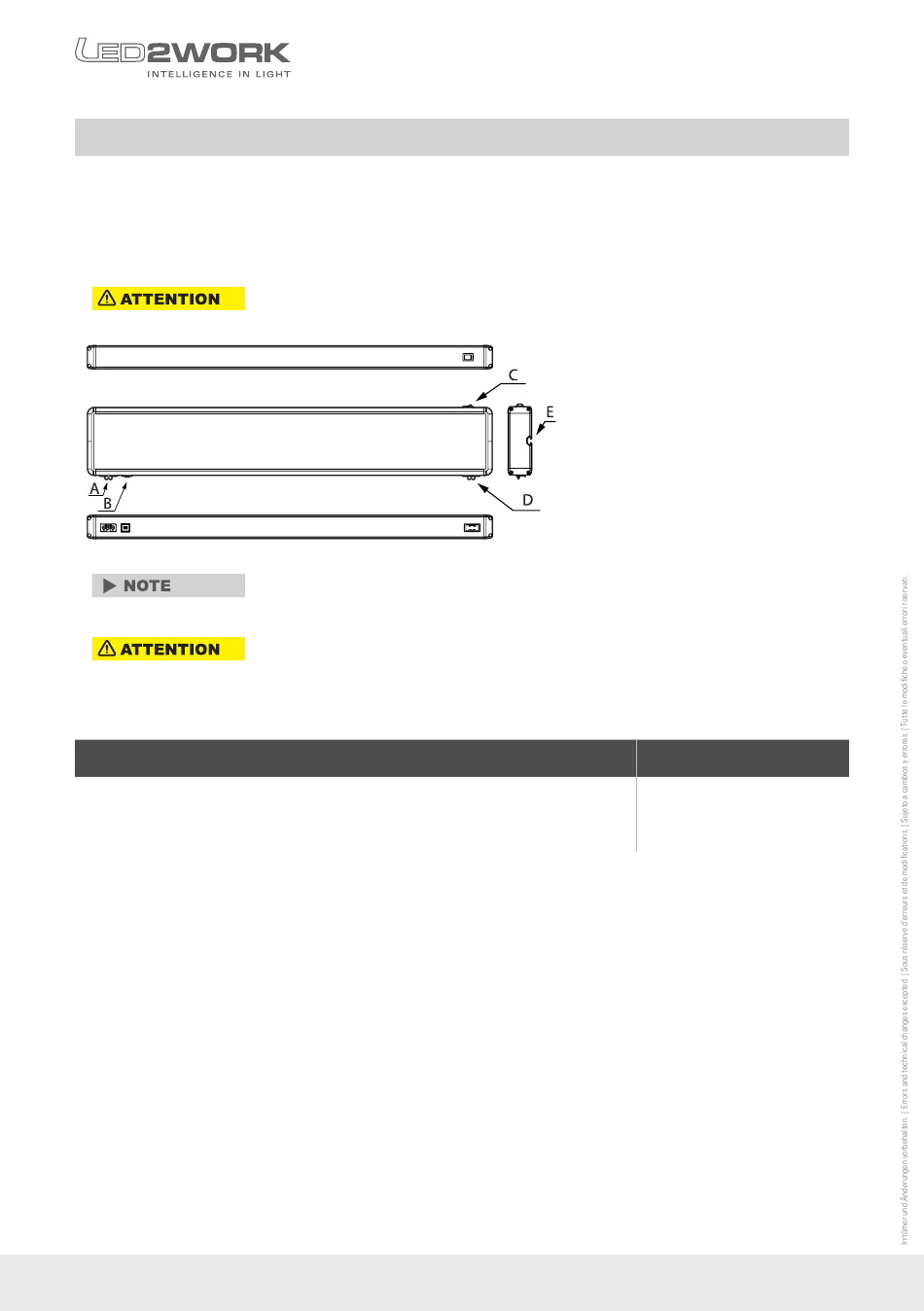

A input for power supply
B connection DIMMmodul
C switch ON/OFF
D output for through-wiring
E slot for T-nut-stone size 10
Product no.
240700-01
240700-03
240700-02
