led2work SYSTEMLED Betriebsanleitung Seite 11

BA SYSTEMLED

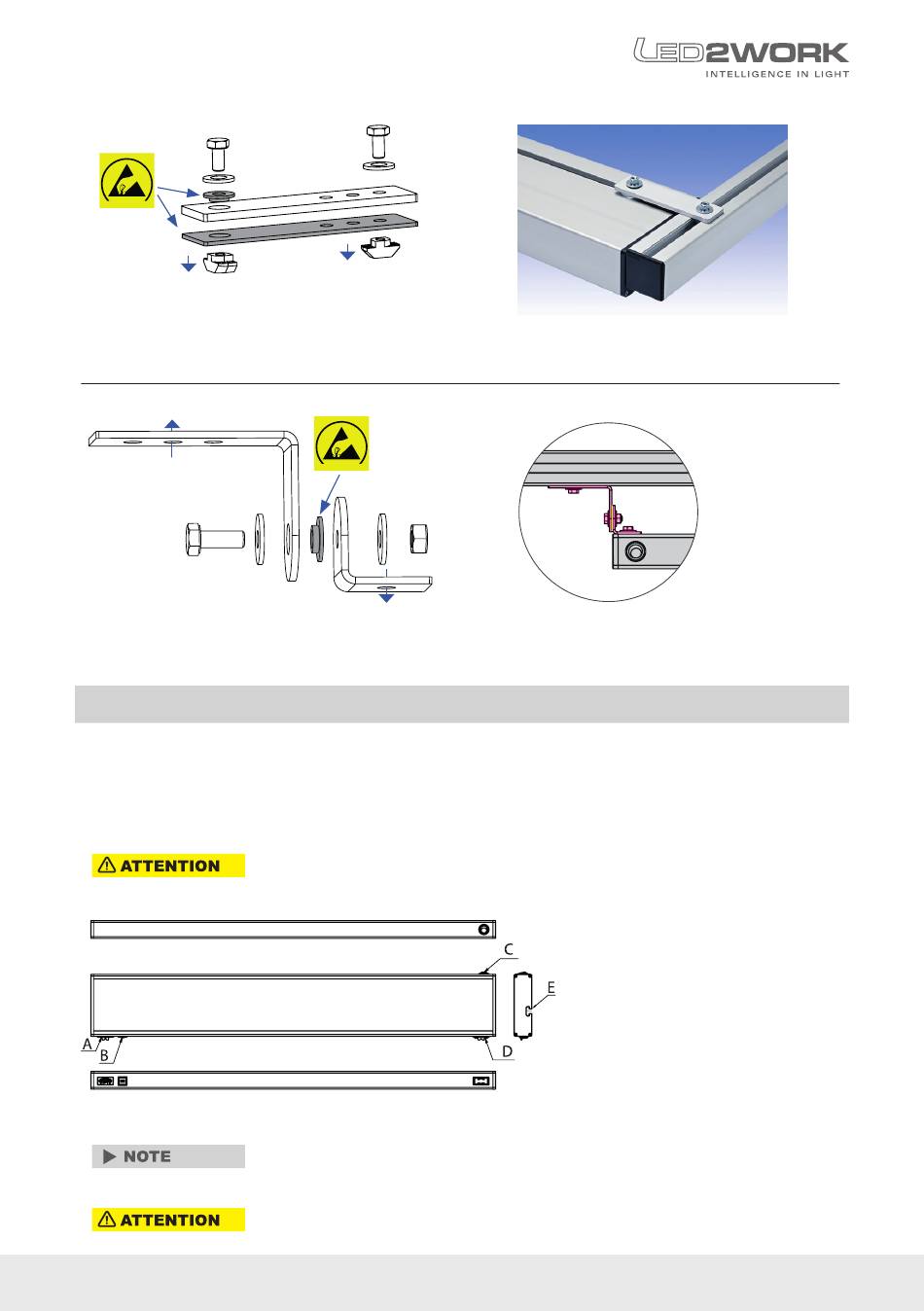

T-slot of luminaire
mounting kit, optional: 240400-01
system carrier
mounting kit, optional: 240400-02
5 | Connection
Suitable connection material, cables and accessories can be found in the accessory range of LED2WORK.
The light has an input for power supply via a connection jack Wieland GST 18/3. About this connector and with suitable
connection material the light is connected with a 230V AC electric power supply system or at a same proper light for
power supply via electrical interlinking.
M6
T-slot system carrier
M6
T-slot of luminaire
Do not connect a switched-on light to 230V AC power. Hot plugging can destroy the LED
chips.
Through-wiring (cascadable): With through-wiring you can electric-chain several lumin-
ares. The first luminare get the 230V AC power supply connection and the following lights
are linked with Wieland GST18 cables via outputs and inputs.
Cascadable: The whole amperage of all chained lights may not exeed over the fuse
rating of the power supply system.
M6
M6
system carrier
SYSTEMLED
A
input for power supply
B connection DIMMmodul
C switch ON/OFF
D output for through-wiring
E slot for T-nut-stone size 10
www.led2work.com | shop.led2work.com | 11
