Connection - Led2Work Profiled Dc Betriebsanleitung

Mounting kit, flat, 1 pair, including T-nuts and screws
Mounting kit, for fixing to the front of a light up to 500 mm long, 1 piece

5 | Connection

Power supply: double insulation between primary and secondary is required. Suitable connection material, cables and
accessories can be found in the accessory range of LED2WORK.
PIN assignment of the M12 connector is as follows:
PIN assignment
PIN 1 = 24V DC
PIN 2 = not used
PIN 3 = GND
PIN 4 = 24V DC
PIN 5 = not used
1
PROFILED DC, luminaire without dimming
To turn on the light, activate the switch on the side of the luminaire body and set it to [ I ].
2
PROFILED DC, luminaire with dimming
To turn on the light, activate the push button on the side of the luminaire body. Hold on the push button for setting of
the light intensity. A repeated pushing of the button turns the light off.
10 | BA PROFILED DC . BA 10/2025
When mounting the light, make sure that the luminaire is fastened securely and stably. If
the light falls down, its weight poses a risk of injury!
For USA / CAN: Use only with NEC class 2 power supply! Specification of Class 2 power
supply: Output voltage: Less than 60V DC | Output power: Less than 100 VA

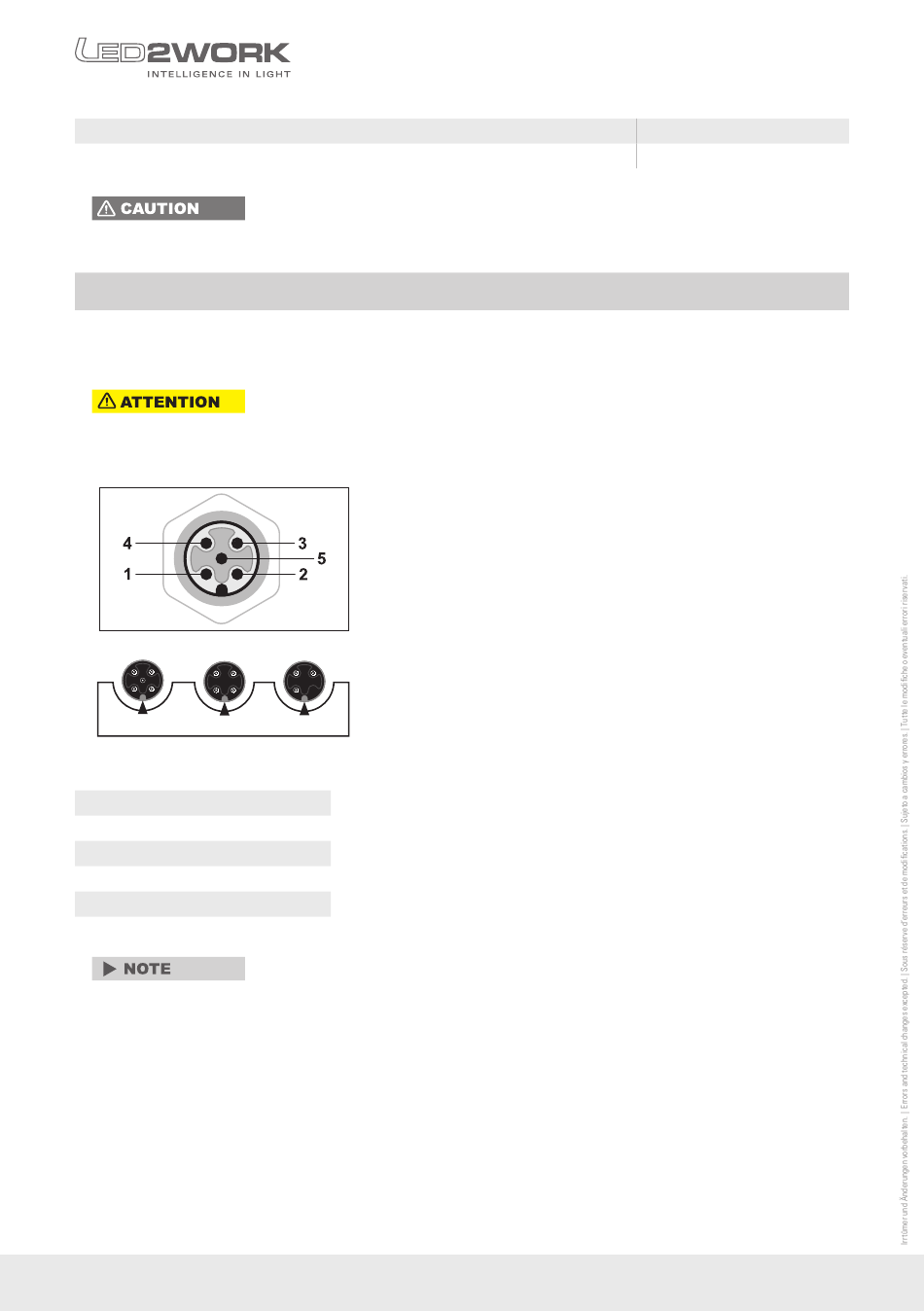

Schematic drawing of M12 plug
Possible variants of the M12 connector
PIN 3 = 0V DC. 24V DC for supply can be connected to PIN1 or PIN 4. It is not necessary to
assign both PINs (PIN 1 and PIN 4) at once!
240400-04
240400-06
