Connection - Led2Work Systemled Evo Pir Betriebsanleitung

5 | Connection

Suitable connection material, cables and accessories can be found in the accessory range of LED2WORK.
The light has an input for power supply via a connection jack Wieland GST 18/3. About this connector and with suitable
connection material the light is connected with a AC electric power supply system or at a same proper light for power
supply via electrical interlinking.
When the LED light has been correctly mounted and connected, it can be switched on using the switch on the housing
(C). The following accessories are optionally available for switching and dimming:
SYTEMLED EVO control device (dimming/switching), connection cable 3m
SYTEMLED EVO control device (dimming/switching), connecting cable 5m
SYSTEMLED EVO memory stick
14 | BA SYSTEMLED EVO PIR . BA 08/2025
Through-wiring (cascadable): With through-wiring you can electric-chain several lumin-
ares. The first luminare get the power supply connection and the following lights are linked
with Wieland GST18 cables via outputs and inputs.
Cascadable: The total amperage of all chained lights must not exceed the fuse rating of
the power supply system.
The cascade option is not covered by any ETL certification.

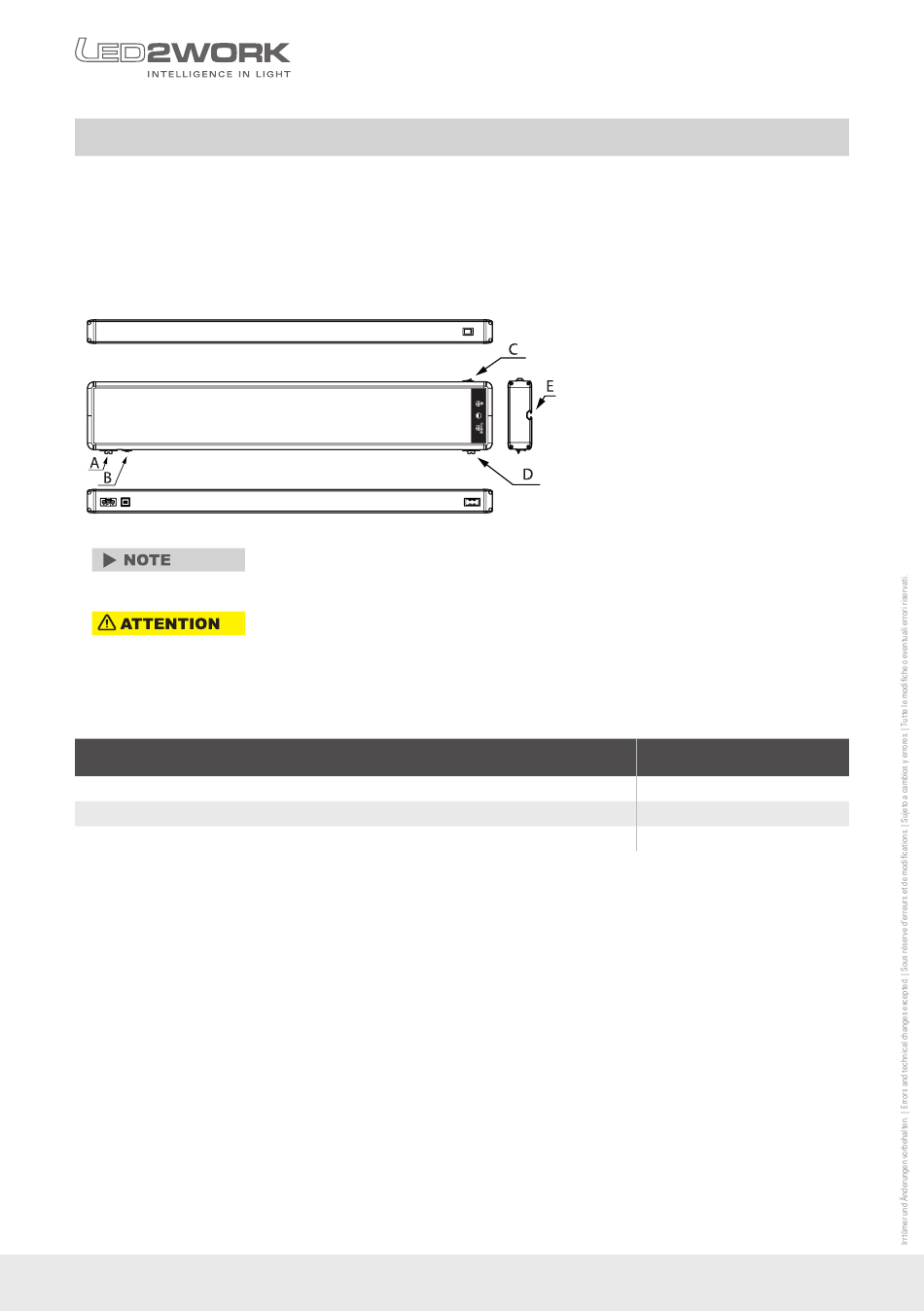

A
input for power supply
B connection DIMMmodul
C switch ON/OFF
D output for through-wiring
E slot for T-nut-stone size 10
Product no.
240700-01
240700-03
240700-02
