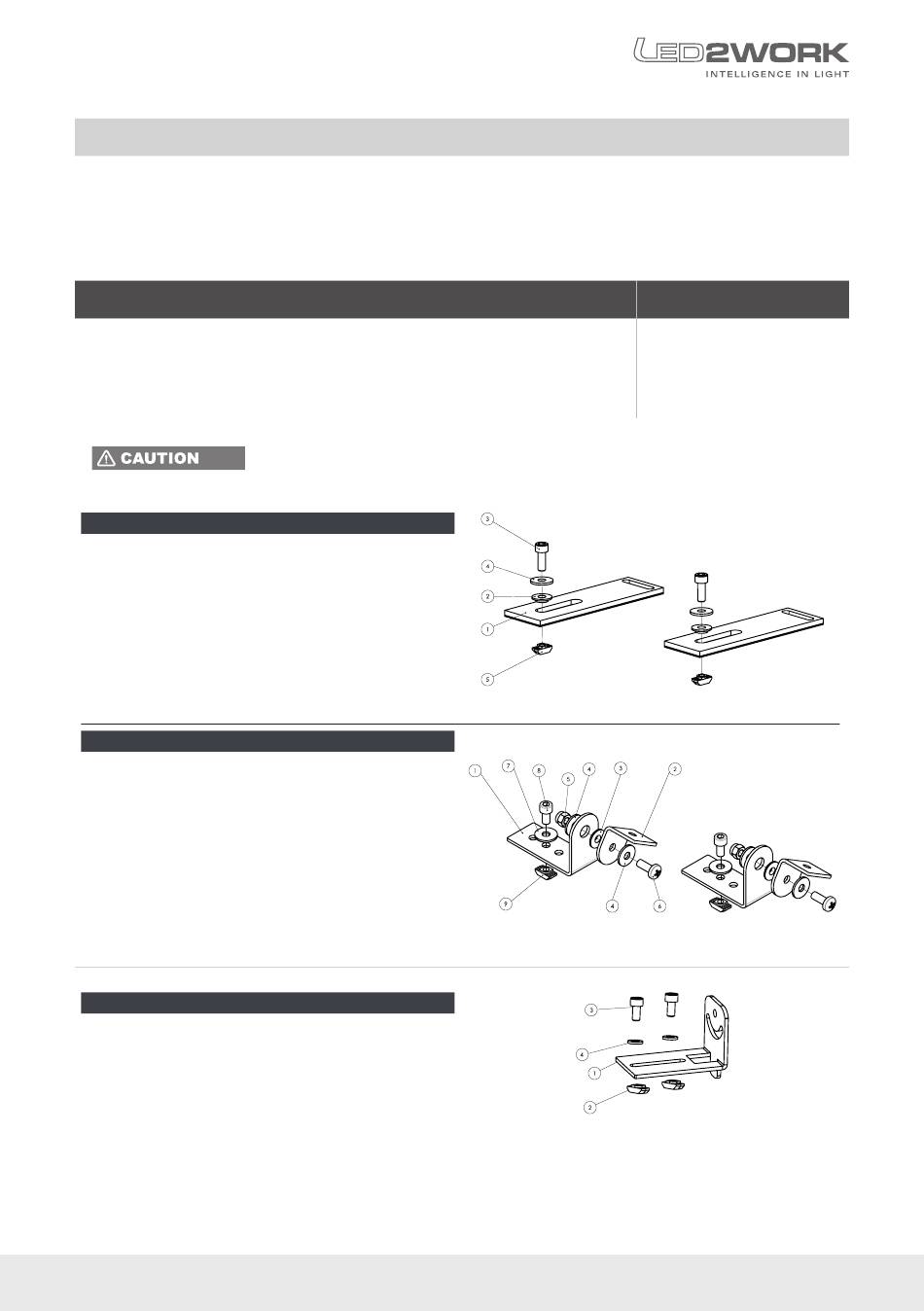

4 | Assembly / Mounting
Check the LED light before installation to ensure it is complete and shows no signs of damage. Do not use the light or
accessories if they are damaged, as there is a risk of injury.
The LED light comes fully assembled. On the backside of the light is a T-slot for a mounting via T-nuts 8. As option there
are this mounting accessories:
Mounting kit, pivotable, with ESD insulation (Electro Static Discharge), pair
Mounting kit, flat, with ESD insulation (Electro Static Discharge), pai
Mounting kit, front-end, for luminaire length up to 500 mm, 1 piece
Mounting kit, one pair of T-Slot Nuts with cheese-head screws
Parts for mounting
1 Mounting bracket, flat, insulated
2 Insulating bush M6
3 Cheese head screw M6x16
4 Washer DIN 9021 A2 6.4mm
5 Hammer nut N8 M6
Parts for mounting
1 Angle element long
2 Angle element short
3 Insulating bush M6
4 Washer DIN 9021, 6.4mm, polyamide
5 Lock nut M6
6 Screw M6x16 T40
7 Washer DIN 9021 A2 6.4mm
8 Cheese head screw M6x16
9 Hammer nut N8 M6
Parts for mounting
1 Mounting bracket for SYSTEMLED EVO < 500 mm
2 Hammer nut N8 M6
3 Screw DIN 912, M6x12
4 Washer DIN 125, 6.2 mm
When mounting the light, make sure that the luminaire is fastened securely and stably. If
the light falls down, its weight poses a risk of injury!
Quantity
2
2
2
2
2
Quantity
2
2
2
2
2
2
2
2
2
Quantity
1
2
2
2
Mounting kit, optional: 240400-05
Mounting kit, optional: 240400-02
Mounting kit, optional: 240400-06
www.led2work.com | shop.led2work.com
Product no.
240400-02
240400-05
240400-06
240400-07
