Only use the device if it is completely free of faults, and with safety
and awareness in mind.
If warnings or symbols are attached to the luminaire, they must not
be removed.
4 | Assembly / Mounting
Check the LED luminaire before installation to ensure it is complete and shows no
signs of damage. Do not use the luminaire or accessories if they are damaged, as
there is a risk of injury.
The LED luminaire comes fully assembled. The luminaire is attached via optional
mounting hardware:
VARILED magnet holder Set, pair incl. screws M5
When mounting the luminaire, make sure that the luminaire is
fastened securely and stably. If the luminaire falls down, its weight
poses a risk of injury!
5 | Connection
VARILED, 5200K-5700K is delivered with a preassembled 3m sensor cable, PUR, and
M12 connector, A coded, at the end. VARILED V4A, 5200K-5700K is directly connected
via the M12 connector, which ist firmly mounted in the luminaire.Suitable connection
material, cables and accessories can be found in the accessory range of LED2WORK.

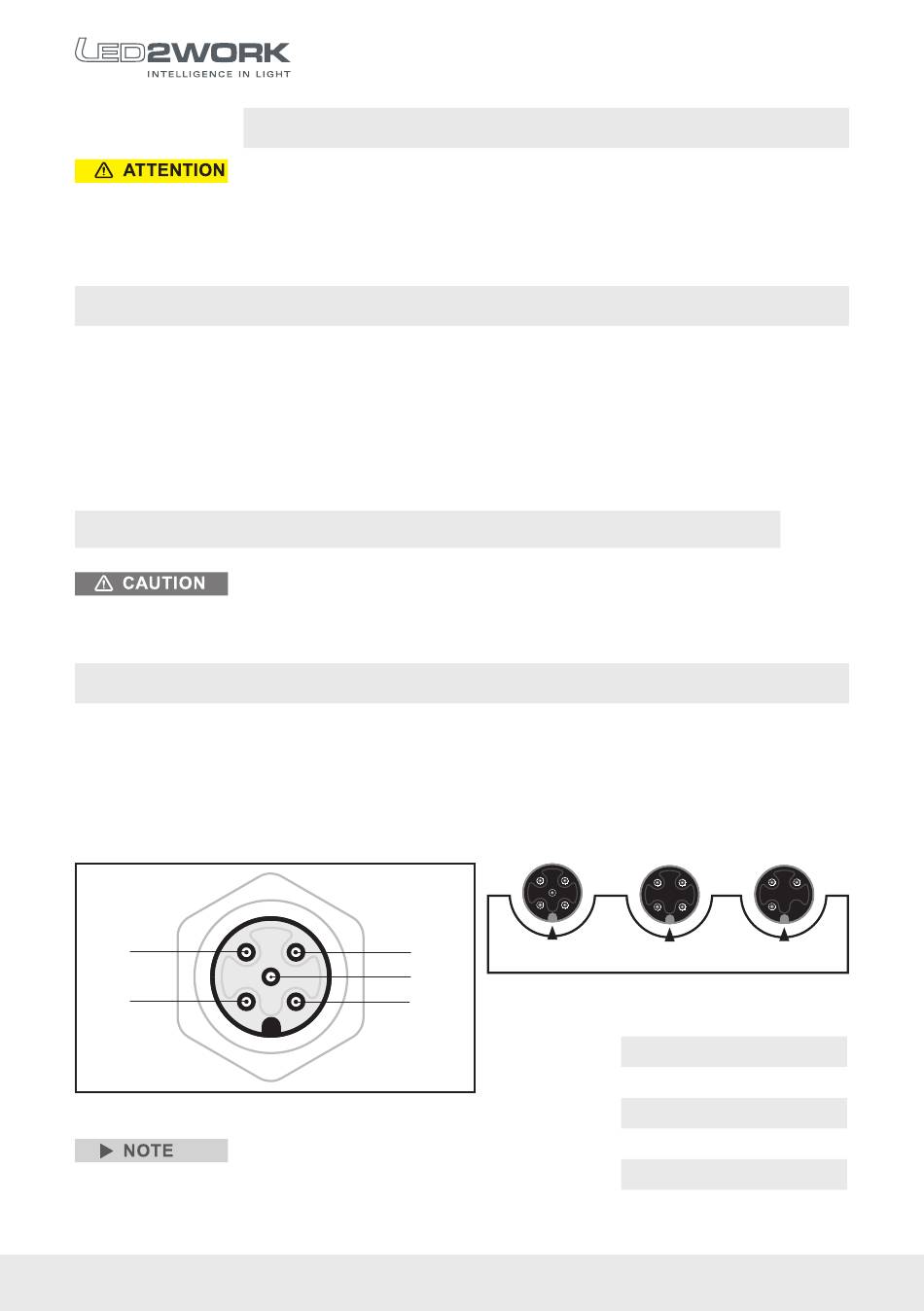

PIN assignment of the M12 connector is as follows:
4
1
Schematic drawing of M12 plug
24V DC for supply can be connected
to PIN1 or PIN 4. It is not necessary
to assign both PINs at once!
10 | BA VARILED Aufbau_Built-up . BA 11/2018
3 | Safety information
3
5
2
Item no.
210200-05
Possible variants of the M12 connector
PIN allocation
PIN 1
PIN 2
PIN 3
PIN 4
PIN 5
=
24V DC
=
not used
=
GND
=
24V DC
=
not used
