5.11 Assembly of cable guide

GB
12

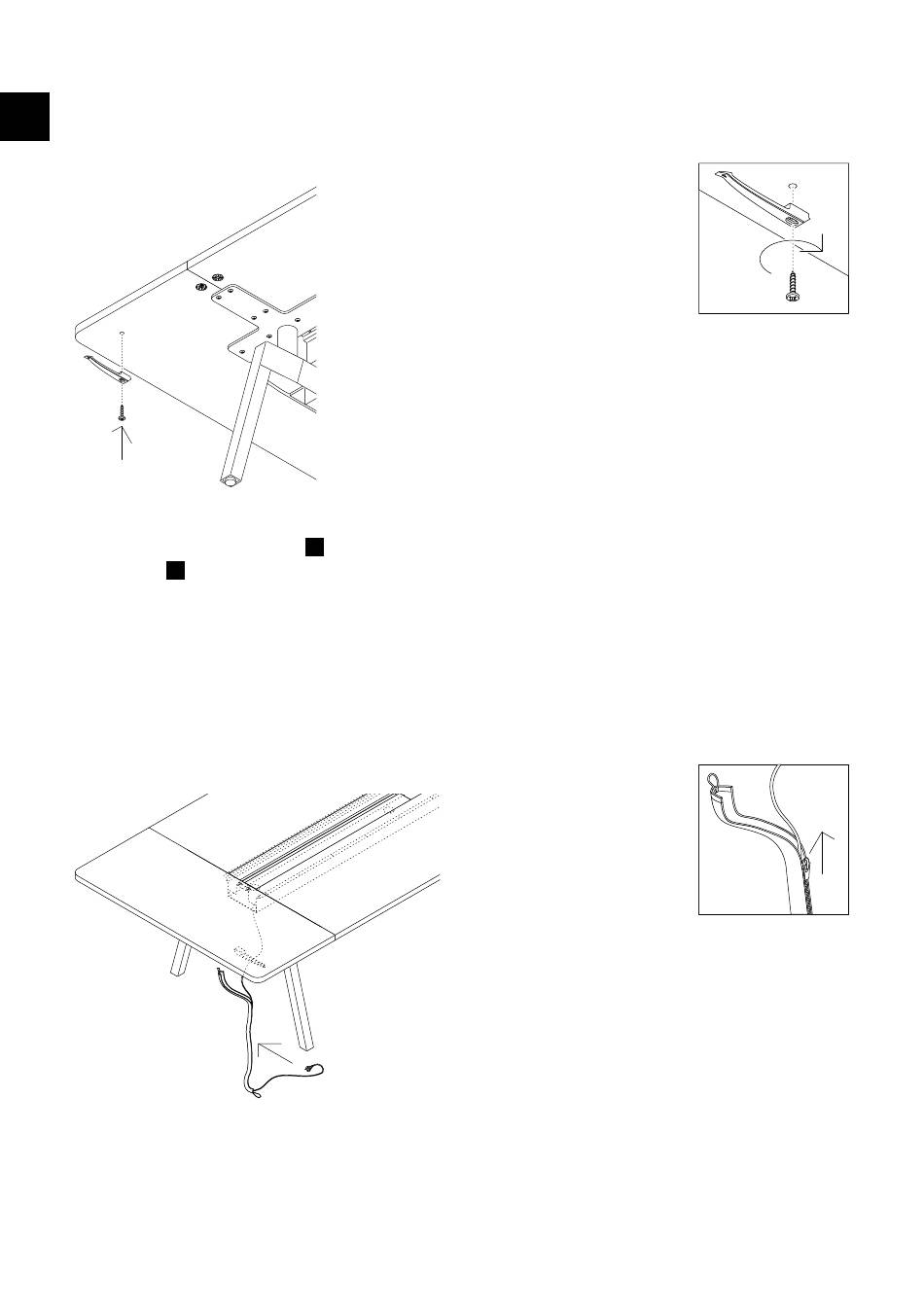

Both a horizontal cable guide , which is mounted under the tabletop, and a vertical cable guide
13
(sock tube) are supplied with the table. The horizontal cable guide is intended for routing cables
(e.g. mains cable, telephone cable, power cable, LAN cable, etc.) under the tabletop. This consists
of 3 clips incl. 3 screws, which you can screw on as required. Place these clips in a position of your
choice underneath the tabletop and screw them in place with the screw.
TIP: Position a clip plumb-vertically over the end of a leg where you can later attach the vertical
cable guide. You can now clip any cables into the cable guide.
The vertical cable guide has a zip that can be fully opened or closed. There are elasticated loops
at both ends of the sock tube. The larger loop is attached to the table leg on the floor and the
smaller loop is attached to the tabletop. Now insert any cables into the cable guide and pull the
zip fastener completely closed.
