Installing the REMOCON NET B

Types of possible installations

WARNING!
Installation should be performed
by a qualified technician.
Before installing, disable the power
supply to the boiler. The BUS BSB
cable is polarised: to avoid problems
when the system is started up, observe
the polarities (CL+ with CL+ and CL-
with CL-) between all system
components.
The product must be installed in a
controlled environment, such as a
technical or domestic room.

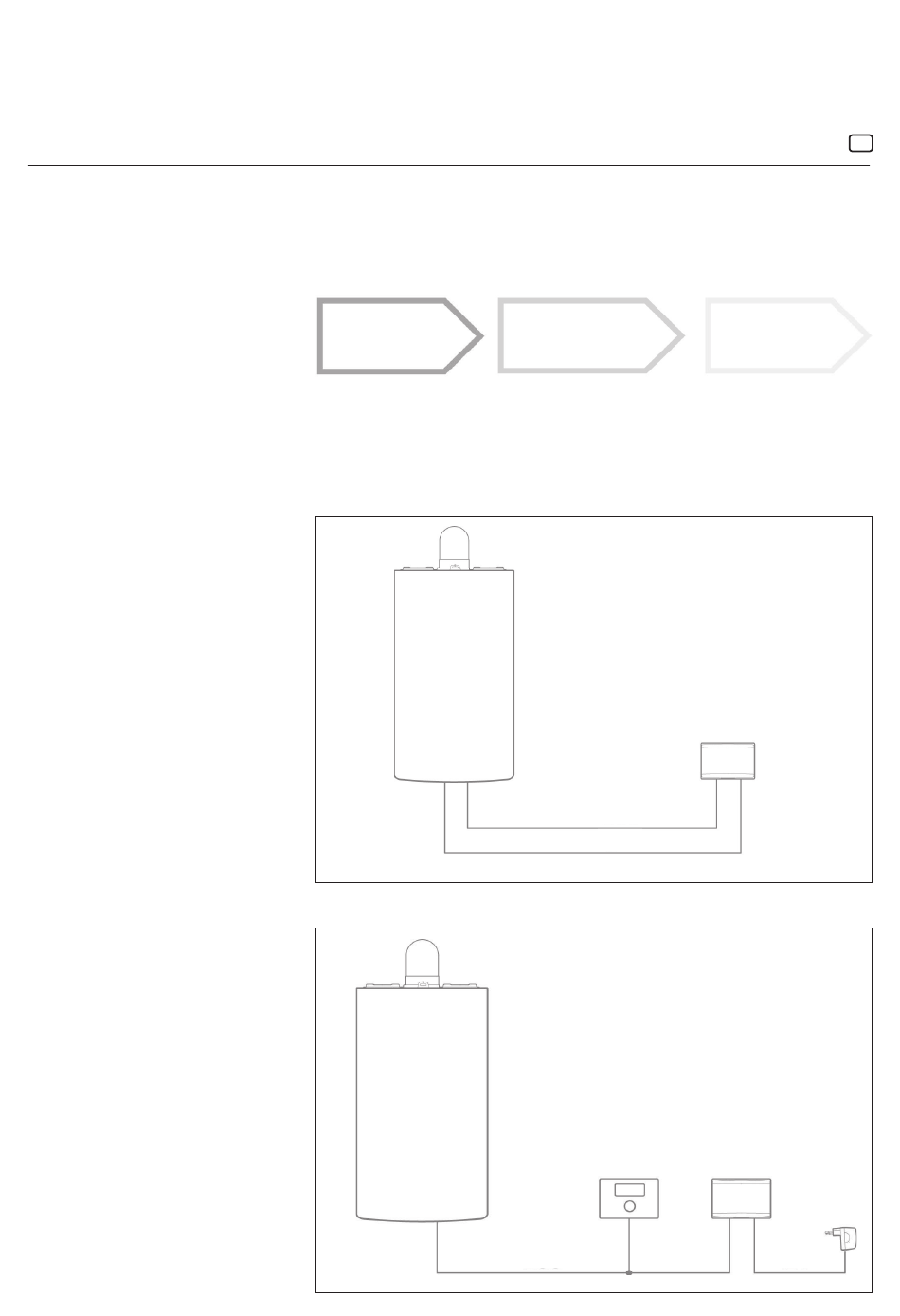

Type 1
TC activation in a basic heating system
with power supplied using a G+ cable:
· Connect the REMOCON NET B
Gateway to the boiler using the BSB
communication BUS (CL + and CL-) and
the G+ power supply cable
Warning!
This type is only available if
no room thermostat
has be connected to the G+ power
supply cable
Type 2
TC activation in a basic heating system
with an external power supply:
· Connect the REMOCON NET B
Gateway to the boiler using the BSB
communication BUS (CL + and CL-)
· Connect the external transformer to the
REMOCON NET B Gateway, then
connect it to the electrical mains
The term "Remote Control" (RC) means
the service directed to end user, through
which they can use the smartphone App or
web portal to monitor and set their ELCO
product.
INSTALLING THE
REMOCON NET B
The following paragraph lists some of the main system arrangements which are
possible using REMOCON NET B and other accessories already found in the ELCO
product range, as well as the types of service that can be activated using these
configurations. For more information and details about the installation configurations
shown below, we would ask you to contact the representative for your area.
Fig. 1
Fig. 2
45
Installing REMOCON NET B and activating
the REMOCON NET services is quick
and easy:
it takes just 3 steps!
ACCOUNT
REGISTRATION
REMOCON NET B
BUS
G+
ROOM DEVICE
BUS
CONNECTING
TO THE INTERNET
AND REGISTERING
THE PRODUCT
REMOCON NET B
12V
