Installation of REMOCON NET MINI

Types of possible installations

ATTENTION!
Installation should be performed by
a qualified technician.
Before installing, disable the power
supply to the boiler. The BUS
BridgeNet cable is polarised: to avoid
problems with system start-up, check
the polarities (T with T, and B with B)
between all system components.
The product must be installed in a
controlled environment, such as a
technical or domestic room.
Type 1
Activation of RC in a basic heating
system (fig.1)
Actions required:
· Install REMOCON NET MINI and
REMOCON PLUS, connecting them to
the heating product using the BUS
BridgeNet connection
Type 2
Activation of RC in a system with single-
zone heat pump (Fig. 2)
System in which the ELCO product is
connected exclusively to a single
temperature regulation accessory and in
which the REMOCON NET Remote Control
and Remote Assistance services must be
activated. It is possible to remotely control
the cooling function, if available.
Actions required:
· Install REMOCON NET MINI and
REMOCON PLUS, connecting them to
the heating product using the BUS
BridgeNet connection
The term "Remote Control" (RC) means,
conversely, the service directed to end
users, through which they can use the
smartphone App or web portal to monitor
and set their ELCO products.
INSTALLING THE
REMOCON NET MINI
The following paragraph includes some of the main possible system layouts using
REMOCON NET MINI and other accessories that are already within the ELCO product
range, as well as the types of services that can be activated using these configurations.
For more information and details about the installation diagrams shown below, we
would ask you to contact the Area Manager.

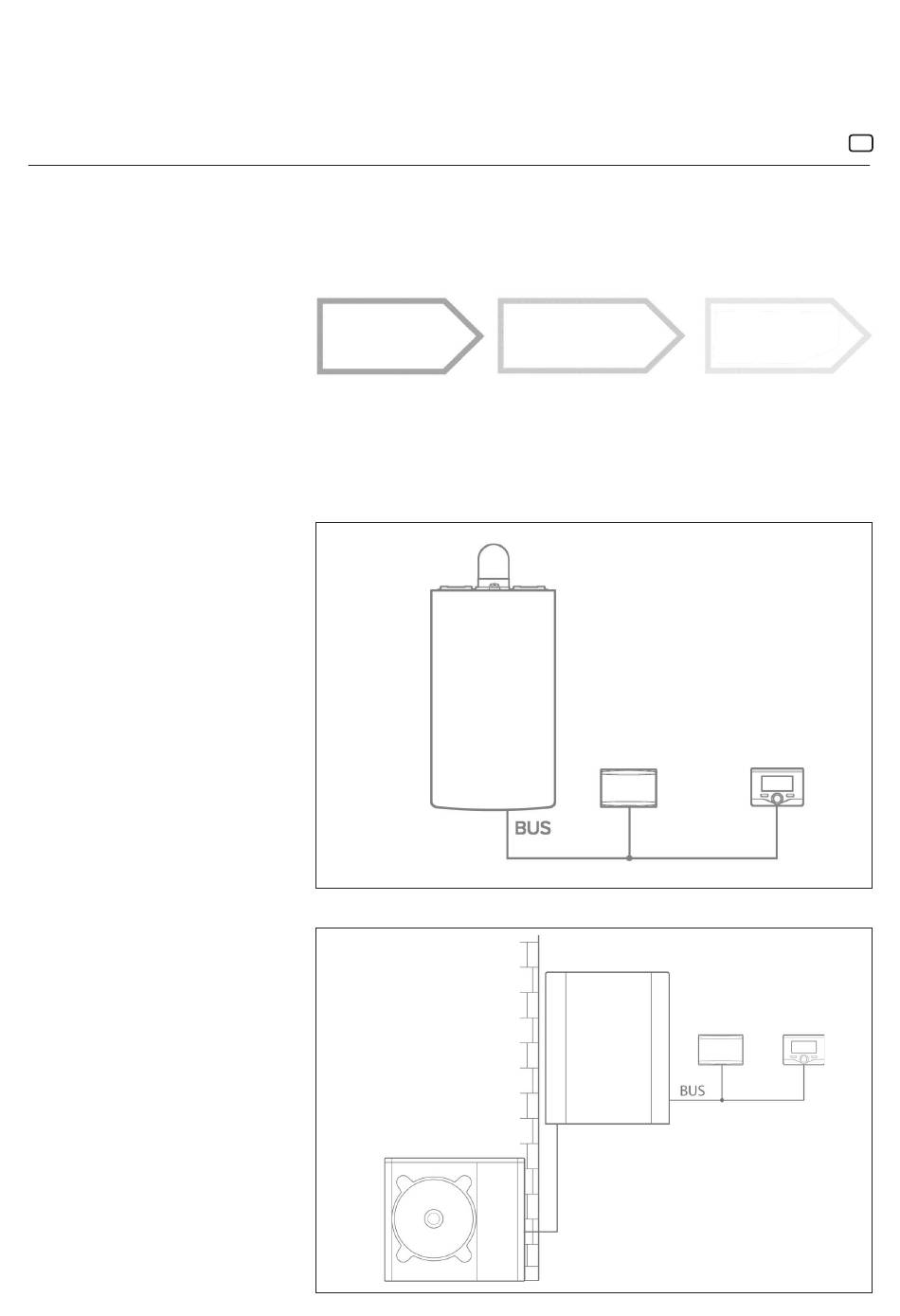

Fig. 1
Fig. 2
45
Installing REMOCON NET MINI and
activating REMOCON NET services is
quick and easy:
there are only 3 steps!
ACCOUNT
REGISTRATION
REMOCON
NET MINI
en
CONNECTING
TO THE INTERNET
AND REGISTERING
THE PRODUCT
REMOCON
PLUS
REMOCON REMOCON
NET MINI PLUS
