Installing the REMOCON NET B using a G+ power supply cable

Installing the REMOCON NET B using an external transformer

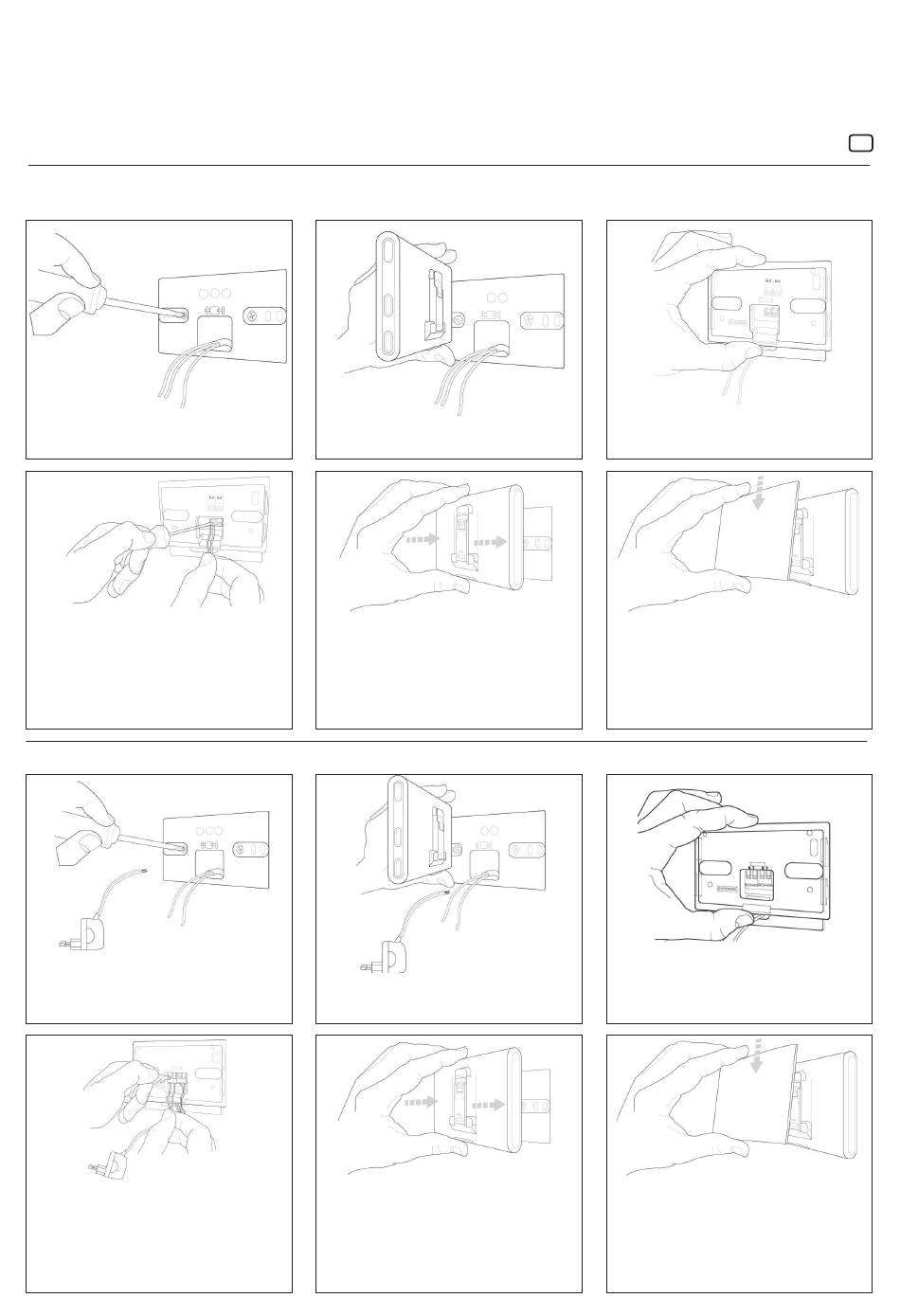

Installing the REMOCON NET B using a G+ power supply cable
Fig. 1
Fix the support plate to the wall using the
supplied screws.
Fig. 4
Connect the pair of BSB BUS wires to the
input labelled BSB, respecting the CL+ and
CL- polarities. Connect the G+ cable to the
input labelled SUPPLY (polarity not important).
Installing the REMOCON NET B using an external transformer
Fig. 1
Fix the support plate to the wall using the
supplied screws.
Fig. 4
Connect the pair of BSB BUS wires to the
input labelled BSB, respecting the CL+ and
CL- polarities. Connect pair of transformer
wires to the input labelled SUPPLY(polarity
not important).
Fig. 2
Rotate the REMOCON NET B.
Fig. 5
Remove the REMOCON NET B from the
temporary position (fig. 2) and attach it to the
plate, pressing along the sides until you hear
the four small side hooks click.
Fig. 2
Rotate the REMOCON NET B.
Fig. 5
Remove the REMOCON NET B from the
temporary position (fig. 2) and attach it to the
plate, pressing along the sides until you hear
the four small side hooks click.
46
Fig. 3
Fix the REMOCON NET B temporarily to the
plate using the dedicated hooks.
Fig. 6
Position the cover, pressing it carefully
downwards
Fig. 3
Fix the REMOCON NET B temporarily to the
plate using the dedicated hooks.
Fig. 6
Position the cover, pressing it carefully
downwards
Connect the external transformer to the
electrical mains
