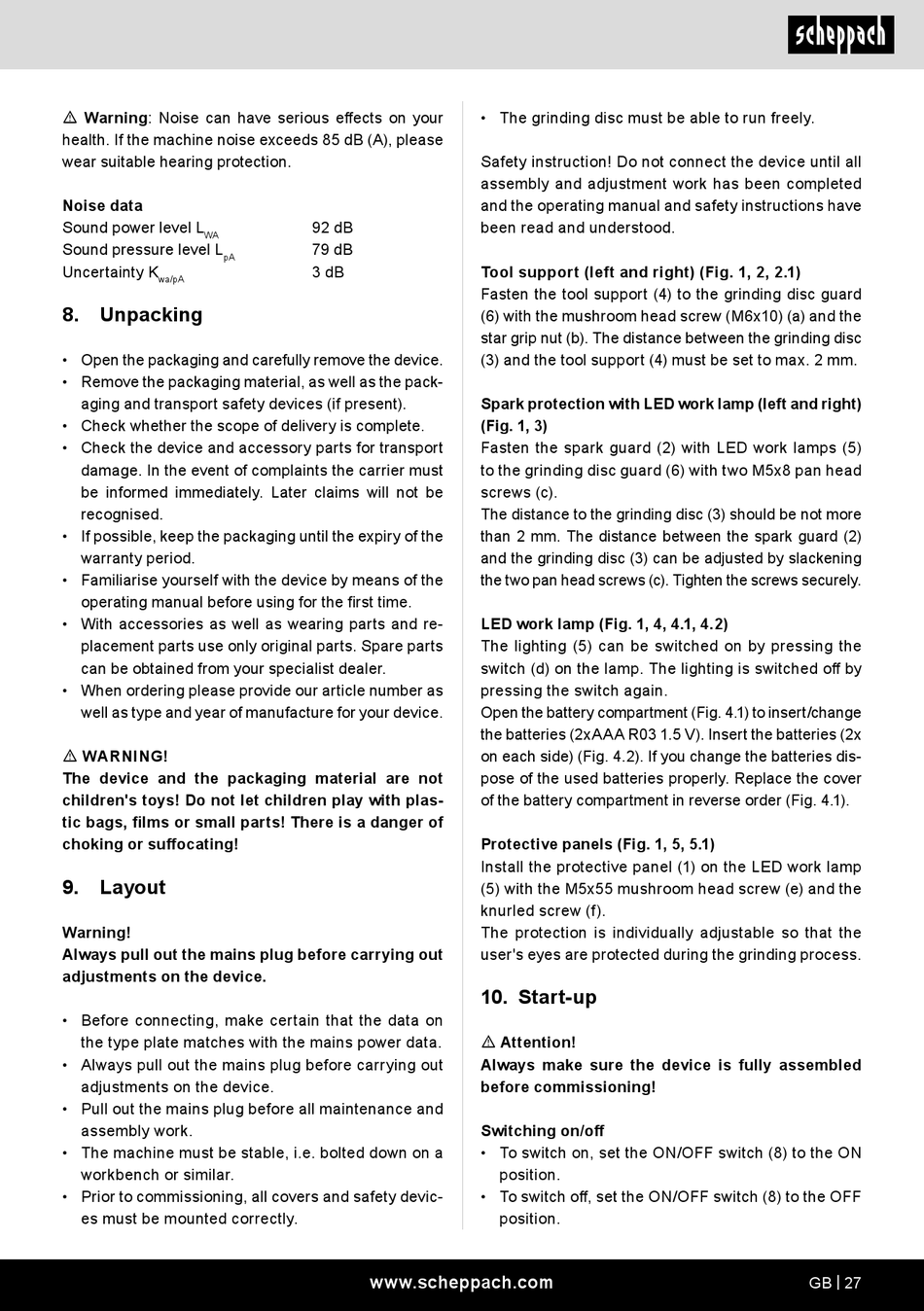

m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A), please
wear suitable hearing protection.
Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
8. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the device by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your device.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Layout
Warning!
Always pull out the mains plug before carrying out
adjustments on the device.
• Before connecting, make certain that the data on
the type plate matches with the mains power data.
• Always pull out the mains plug before carrying out
adjustments on the device.
• Pull out the mains plug before all maintenance and
assembly work.
• The machine must be stable, i.e. bolted down on a
workbench or similar.
• Prior to commissioning, all covers and safety devic-
es must be mounted correctly.
• The grinding disc must be able to run freely.
Safety instruction! Do not connect the device until all
assembly and adjustment work has been completed
and the operating manual and safety instructions have
92 dB been read and understood.
79 dB
3 dB Tool support (left and right) (Fig. 1, 2, 2.1)
Fasten the tool support (4) to the grinding disc guard
(6) with the mushroom head screw (M6x10) (a) and the
star grip nut (b). The distance between the grinding disc
(3) and the tool support (4) must be set to max. 2 mm.
Spark protection with LED work lamp (left and right)
(Fig. 1, 3)
Fasten the spark guard (2) with LED work lamps (5)
to the grinding disc guard (6) with two M5x8 pan head
screws (c).
The distance to the grinding disc (3) should be not more
than 2 mm. The distance between the spark guard (2)
and the grinding disc (3) can be adjusted by slackening
the two pan head screws (c). Tighten the screws securely.
LED work lamp (Fig. 1, 4, 4.1, 4.2)
The lighting (5) can be switched on by pressing the
switch (d) on the lamp. The lighting is switched off by
pressing the switch again.
Open the battery compartment (Fig. 4.1) to insert/change
the batteries (2xAAA R03 1.5 V). Insert the batteries (2x
on each side) (Fig. 4.2). If you change the batteries dis-
pose of the used batteries properly. Replace the cover
of the battery compartment in reverse order (Fig. 4.1).
Protective panels (Fig. 1, 5, 5.1)
Install the protective panel (1) on the LED work lamp
(5) with the M5x55 mushroom head screw (e) and the
knurled screw (f).
The protection is individually adjustable so that the
user's eyes are protected during the grinding process.
10. Start-up
m Attention!
Always make sure the device is fully assembled
before commissioning!
Switching on/off
• To switch on, set the ON/OFF switch (8) to the ON
• To switch off, set the ON/OFF switch (8) to the OFF
www.scheppach.com
position.
position.
