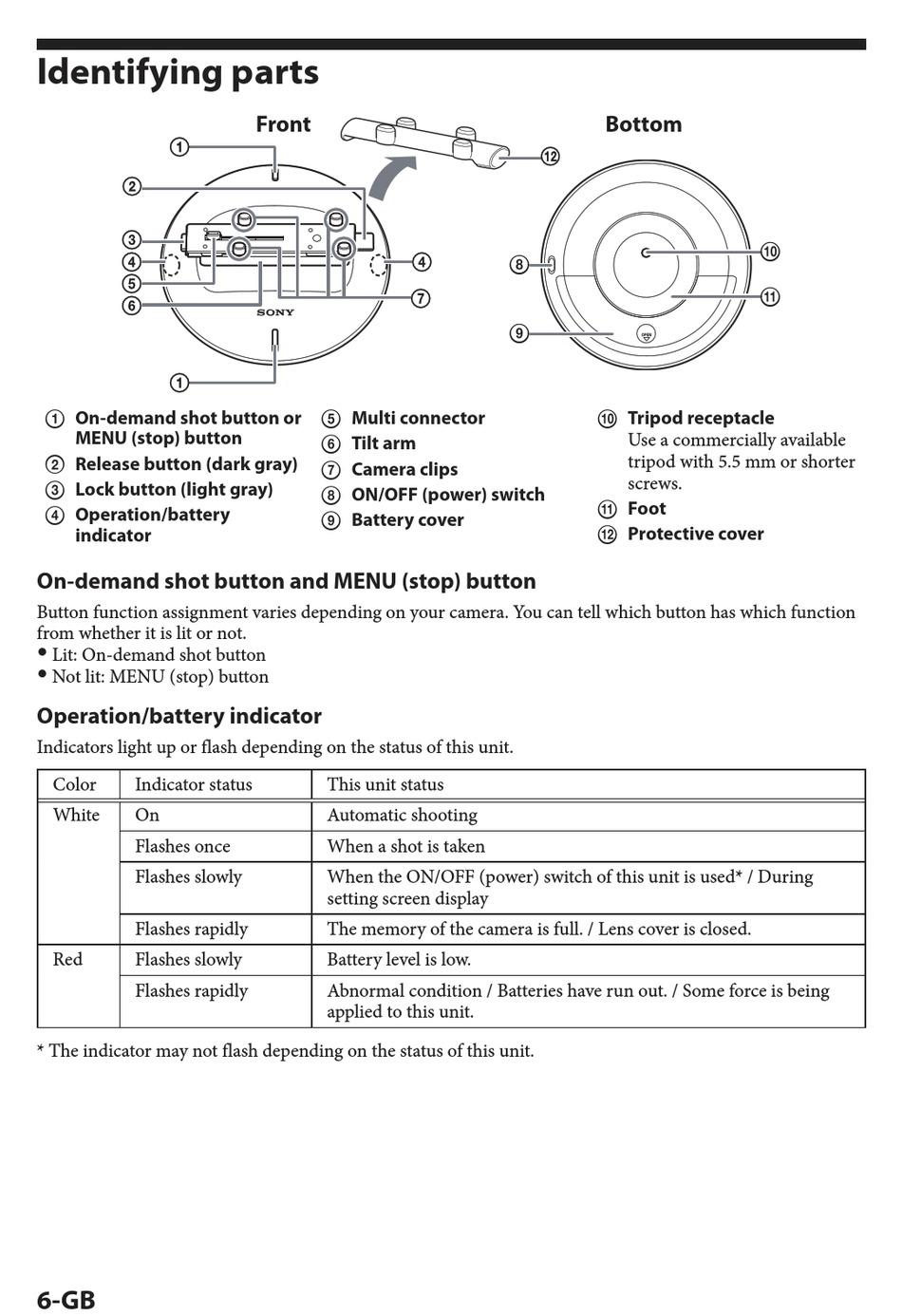

Identifying parts

 On-demand shot button or
MENU (stop) button
 Release button (dark gray)
 Lock button (light gray)
 Operation/battery
indicator
On-demand shot button and MENU (stop) button
Button function assignment varies depending on your camera. You can tell which button has which function
from whether it is lit or not.
ˎ
Lit: On-demand shot button
ˎ
Not lit: MENU (stop) button
Operation/battery indicator
Indicators light up or flash depending on the status of this unit.
Color Indicator status
White On
Flashes once
Flashes slowly
Flashes rapidly
Red Flashes slowly
Flashes rapidly
* The indicator may not flash depending on the status of this unit.
6-GB
Front
 Multi connector
 Tilt arm
 Camera clips
 ON/OFF (power) switch
 Battery cover
This unit status
Automatic shooting
When a shot is taken
When the ON/OFF (power) switch of this unit is used* / During
setting screen display
The memory of the camera is full. / Lens cover is closed.
Battery level is low.
Abnormal condition / Batteries have run out. / Some force is being
applied to this unit.
Bottom


 Tripod receptacle
Use a commercially available
tripod with 5.5 mm or shorter
screws.
 Foot
 Protective cover


