Quadrum DigiPlus / Quadrum DigiPlus Green

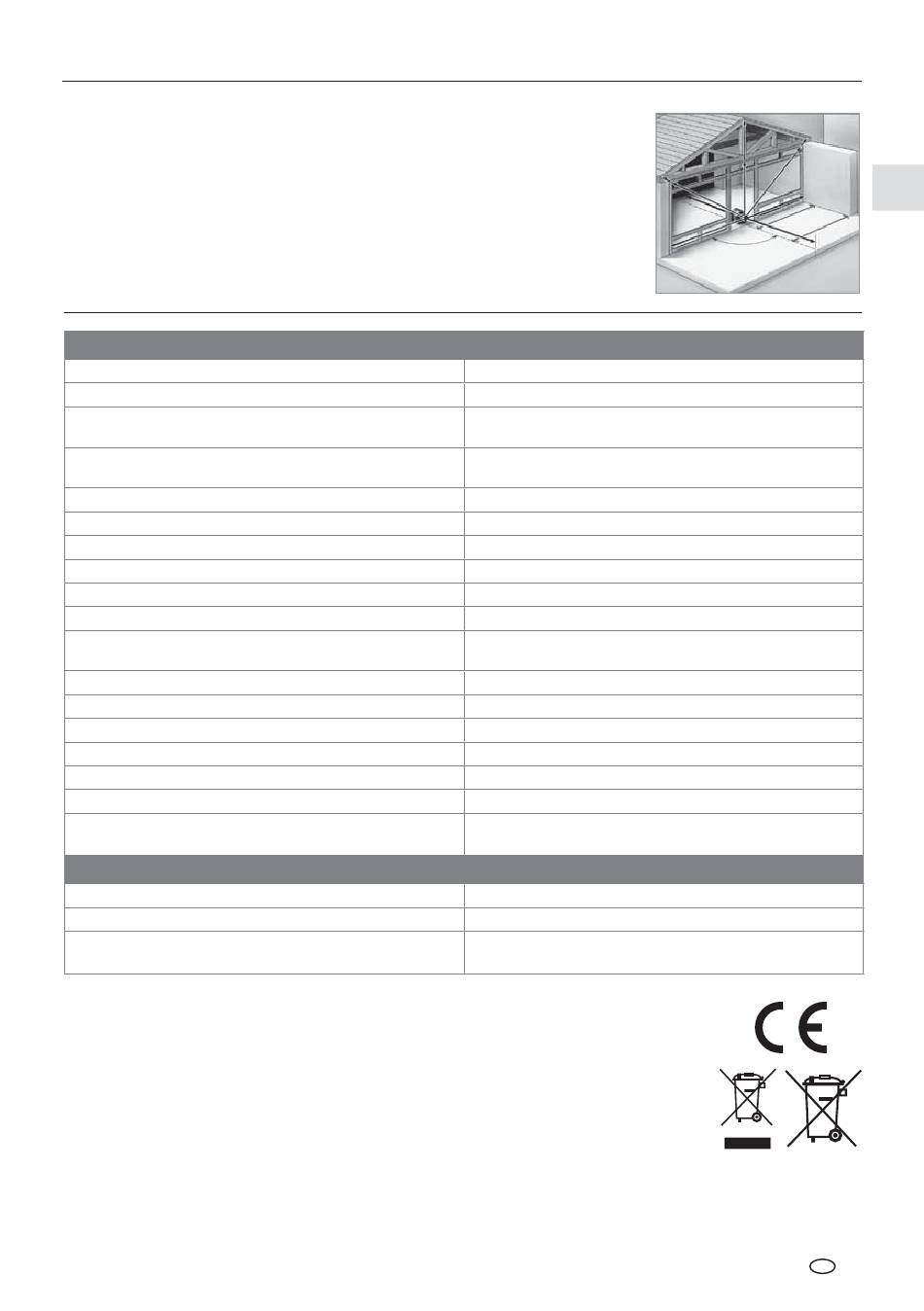

Working with the reference/plumb laser
The unit has two reference lasers. In horizontal operation these lasers
can be used to drop a perpendicular. In vertical operation these reference
lasers are used to align the unit. This is done by adjusting the reference
lasers parallel to the wall. This aligns the vertical laser plane at a right
angle to the wall, see illustration.
Technical data
(Subject to technical alterations)
Self-levelling range
Accurancy
Horizontal / vertical levelling
Self-levelling alignment time
Vertical reference beams
Rotation speed
Remote control
Laser wavelengths green / red
Laser class red / green
Laser output rating red / green
Power supply
Rechargeable battery life red / green
Non-rechargeable battery life red / green
Battery recharging time
Operating temperature red / green
Storage temperature
Protection class
Dimensions (W x H x D) /
Weight (incl. batteries)
Remote control
Power supply
Remote control range
Dimensions (W x H x D) /
Weight (incl. batteries)
EU directives and disposal
This device complies with all necessary standards for the free movement
of goods within the EU.
This product is an electric device and must be collected separately for disposal
according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at: www.laserliner.com/info
± 6°
± 0,75 mm / 10 m
Automatic with electronic sensors
and servo motors
Approx. 30 seconds over the entire
operating angle
90° to rotation plane
0, 60, 120, 300, 600 RPM
Infrared IR
635 nm / 532 nm
2 / 3R (EN60825-1:2007-10)
< 1 mW / < 5 mW
High-performance rechargeable
battery /batteries (4 x type C)
approx. 35 h / approx. 14 h
approx. 50 h / approx. 8 h
ca. 6 h
-10°C ... + 50°C / 0°C ... + 40°C
-10°C ... + 70°C
IP 66
215 x 205 x 165 mm /
2,6 kg
2 x type AAA
max. 40 m (IR-Control)
63 x 130 x 24 mm /
0,15 kg
