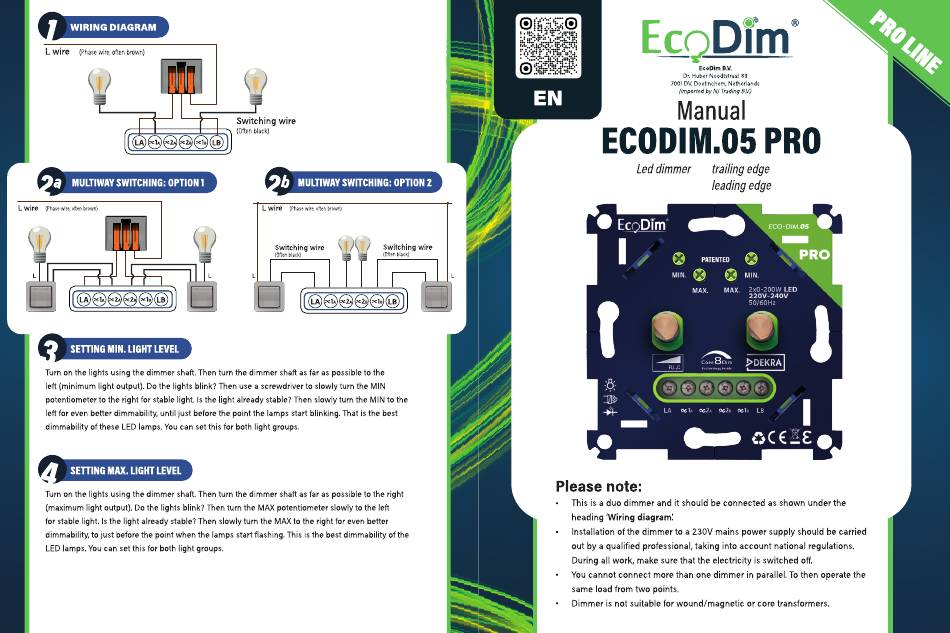

EcoDim .05 PRO Handbuch Seite 5

WIRING DIAGRAM
L wire (Phase w ire. o ften
a MULTIWAY S WITCHING: OPTION I
L Wire e (Phas *ire,otenbrown)
Switching wire
Switching wire
(Often black)
(Ottenblack)
SETTING MIN. LIGHT LEVEL
Turnon the lights using the dimmer shaft,Thenturn the dimmer shaftas far as possibleto the
eft (minimum light output). Do the lights blink? Then use a screwdriver to slowly turn the MIN
potentiometerto the right for stable light. Isthe light alreadystable? Thenslowlyturn the MIN to the
eft for even better dimmability,until just beforethe pointthe lamps start blinking.That is the best
dimmability of these LED lamps. You can set this for both light groups.
SETTING MAX. LIGHT LEVEL
Turnon the lights using the dimmer shaft,Thenturn the dimmer shaftas far as possibleto the right
(maximum light output). Do the lights blink? Then turn the MAX potentiometer slowly to the eft
for stable light. Is the light already stable? Then slowly turn the MAX to the right for even better
dimmability, to just beforethe point when the lamps start flashing,This is the bestdimmability Ofthe
LED lamps. You can set this for both light groups.
Switching wire
(Oftenblack)
b MULTIWAY SWITCHING: OPTION 2
L Wire (Phase ctenbow)
Switching wire Switching Wire
EcoDim BM
Dr. Huber Noodtstraat 89
7001 DVI Doetinchern Netherlands
(Imparted by Nj Trading 8.VJ
EN
Manual
ECODIM.05
Led dimmer trailingedge
leadingedge
EcoDim
MIN
MAX.
000000
LA
Please note:
This is a duo dimmer and it should be connected
heading 'Wiring diagram:
Installation of the dimmer to a 230V mains power supply should be carried
out by a qualified professional, taking into account national regulations.
During all work, make sure that the electricity is switched off,
You cannot connect more than one dimmer in parallel. To then operate the
same load from two points,
Dimmer is not suitable for wound/magnetic or core transformers.
PRO
PRO
2xo-200W LED
MAX.
220v•240V
50/60Ht
>DEKRA
LB
as shown under the
