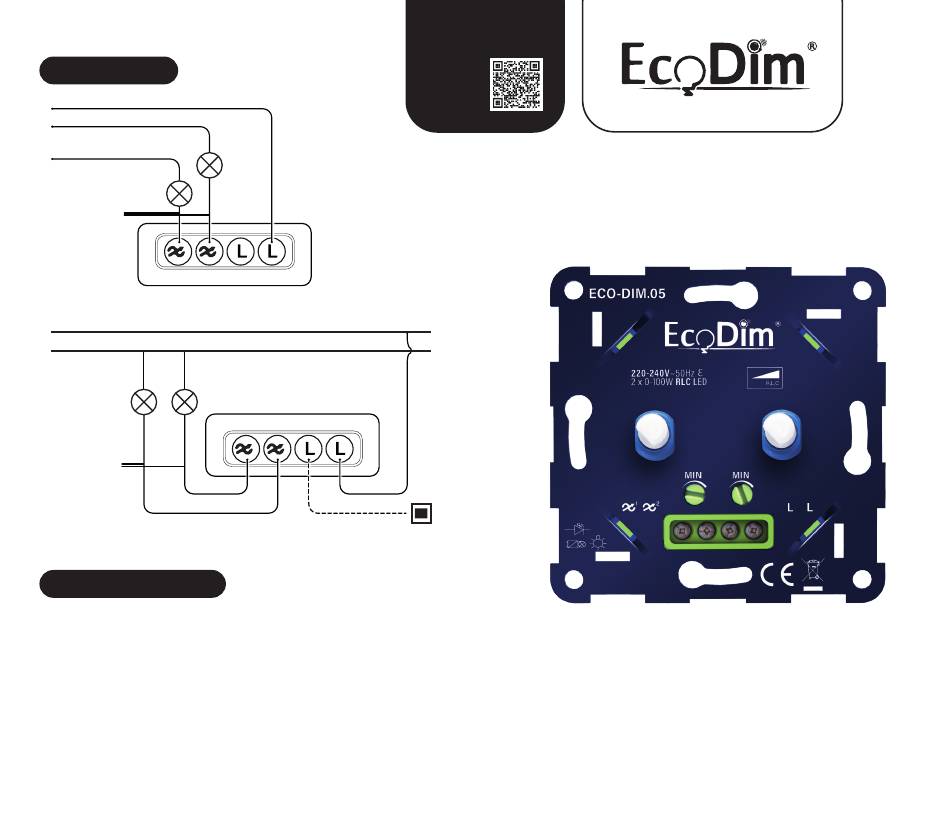

Wiring diagram

L wire
(Phase wire, often brown)
N draad
(Neutral wire, often blue)
LED
LED
LOAD
LOAD
(Switching wire, often
black)
1 2
DIMMER
L wire
(Phase wire, often brown)
N draad
(Neutral wire, often blue)
LED
LOAD
(Switching wire, often
black)
Setting min. light level
Turn on the lights using the dimmer shaft. Then turn the dimmer shaft as far as possible
to the left (minimum light output). If the lights blink, use a screwdriver to turn the MIN
potentiometer slowly to the right for stable light. Is the light already stable? Then slowly turn
the MIN to the left for even better dimmability, until just before the point where the lamps
start flashing. That is the best dimmability of these LED lamps. You can set this for both
light groups.
DIMMER
1 2
Loop-through possible to
adjacent socket/switch.
EN
Manual
ECO-DIM.05
Universal LED dimmer (R, L, C)
Note:
• This is a two-wire dimmer and it should be connected as shown under the heading
'Wiring diagram' .
• Installation of the dimmer on a 230V mains should be carried out by a qualified
professional, taking into account national regulations. Ensure that the electricity is
switched off during all work.
• Dimmers are not suitable for wound/magnetic or core transformers.
Dr. Huber Noodtstraat 89
7001 DV, Doetinchem, Netherlands
(Imported by NJ Trading B. V .)
EcoDim B.V.
Made in China
