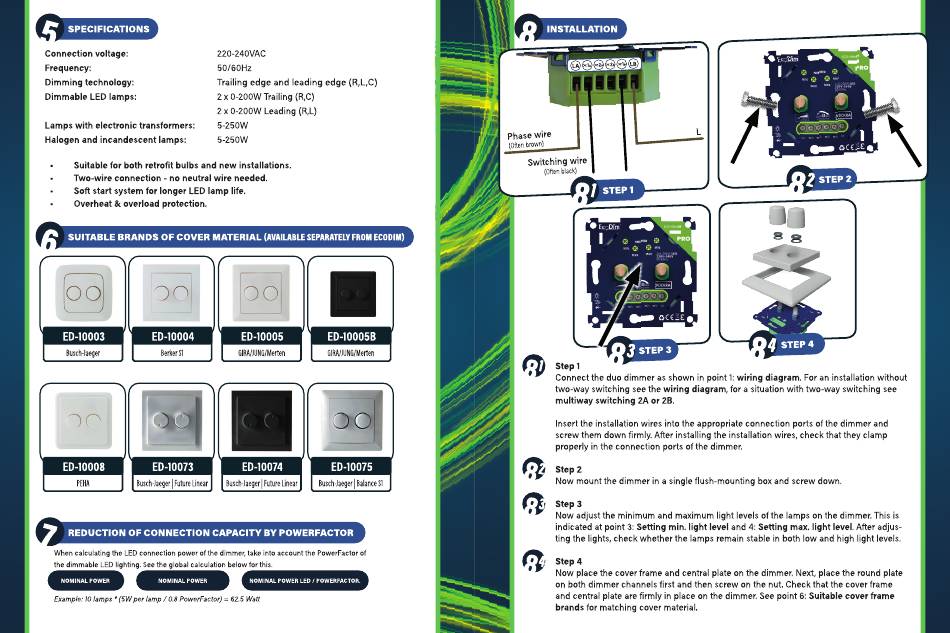

SPECIFICATIONS
Connection voltage:
220-240VAC
Frequency:
50/60Hz
Dimming technology:
Trailing edge and leading edge (R,L,C)
Dimmable LED lamps:
2 x 0-200W Trailing (R,C)
2 x 0-200W Leading (R,L)
Lamps with electronic transformers:
5-250W
Halogen and incandescent lamps:
5-250W
Suitable
for both retrofit
bulbs and new installations.
Two-wire
connection
- no neutral
wire
Soft start system for longer LED lamp life.
Overheat & overload protection.
SUITABLE
BRANDS
OF COVER
MATERIAL
oo
ED-10003
0-10004
Jaeger
Busch-
Berker S
ODOO
ED-10008
ED-10073
Busch-
Jaeger IFuture linear
REDUCTION
OF CONNECTION
CAPACITY
Whencalculating the LED connection power Ofthe dimmer,take into account the PowerFactorOf
the dimmable LED lighting. See the global calculation below for this,
=
NOMINAL
POWER
NOMINAL
POWER
Example:10lamps • (5Wper lamp / 08 PowerFactor)= 62.5 watt
needed.
(AVAILABLESEPARATELY F ROMECODIM)
oo
ED-10005
0-10005B
ED-10074
ED-10075
Busch-Jaeger
Future linear
dusch-laeger
Balance
Sl
BY POWERFACTOR
*
NOMINAL
POWER
LED / POWERFACTOR.
INSTALLATION
Phase wire
(Often bnw•n)
Switching wire
(Dften b lack)
STEP 1
3 STEP 3
step 1
Connect the duo dimmer as shown in point 1: wiring diagram. For an installation without
two-way switching see the wiring diagram, for a situation with two-way switching see
multiway switching 2A or 2B.
Insert the installation wires into the appropriate connection ports of the dimmer and
screw them down firmly. After installing the installation wires, check that they clamp
properly in the connection ports of the dimmer.
step 2
Now mount the dimmer in a single flush-mounting box and screw down.
Step 3
Now adjust the minimum and maximum light levels of the lamps on the dimmer. This is
indicated at point 3: Setting min. light level and 4: Setting max. light level. After adjus
ting the lights, check whether the lamps remain stable in both low and high light levels.
Step 4
Now place the cover frame and central plate on the dimmer, Next, place the round plate
on both
dimmer
channels
first
and then
and central plate are firmly in place on the dimmer. See point 6: Suitable cover frame
brands for matching cover material.
OCC
STEP 2
4 STEP 4
screw
on the nut.
Check
that
the cover
frame
