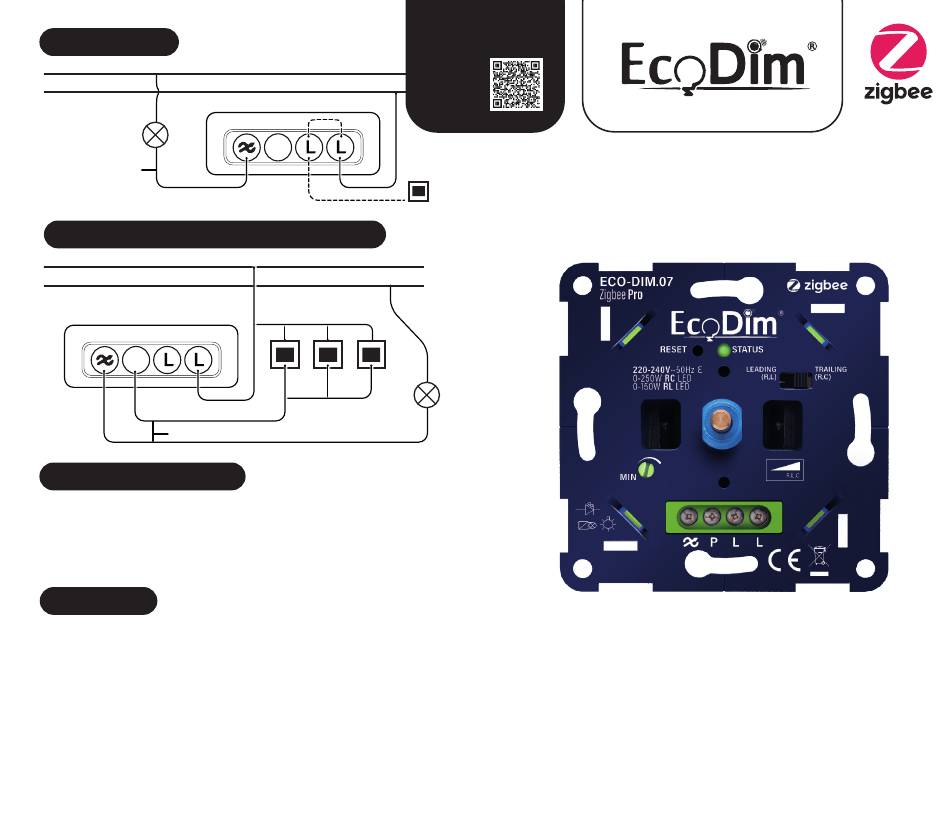

Wiring diagram
L wire
(Phase wire, often brown)
N wire
(Neutral wire, often blue)
LED
LOAD
(Switching wire, often black)
Wiring diagram for multiple pulse switches
L wire
(Phase wire, often brown)
N wire
(Neutral wire, often blue)
DIMMER
P
(Switching wire, often black)
Setting min. light level
Turn on the lights using the dimmer shaft. Then turn the dimmer shaft as far as possible to
the left (minimum light output). Do the lights blink? Then use a screwdriver to slowly turn
the MIN potentiometer to the right for stable light. Is the light already stable? Then slowly
turn the MIN to the left for even better dimmability, to just before the point where the lamps
start blinking. This is the best dimmability of the LED lamps.
Specifications
Connection voltage:
220-240 VAC
Frequency:
50Hz
Trailing edge and leading edge (R,L,C)
Dimming technology:
Dimmable LED lamps:
0-250W Trailing (R,C)
0-150W Leading (R,L)
Lamps with electronic transformers:
10-300W
Halogen and incandescent lamps:
10-300W
•
Suitable for both retrofit lamp bulbs and new installations.
•
Two-wire connection - no neutral wire required.
•
Soft start system for longer LED lamp life.
•
Built-in protection for temperature protection and overload.
DIMMER
P
Loop-through possible to adjacent socket/switch.
LED
LOAD
EN
Manual
ECO-DIM.07 Zigbee
Universal Zigbee Led dimmer (R,L,C)
Note:
•
This is a two-wire dimmer and it should be connected as shown under the heading
'Wiring diagram' .
•
Installation of the dimmer on a 230V mains should be carried out by a qualified
professional, taking into account national regulations. Ensure that the electricity is
switched off during all work.
•
You cannot connect more than one dimmer in parallel. To then control the same load
from two points.
•
Dimmer is not suitable for wound/magnetic or core transformers.
Dr. Huber Noodtstraat 89
7001 DV, Doetinchem, Netherlands
(Imported by NJ Trading B. V .)
PRO
EcoDim B.V.
Made in China
