GB
MT

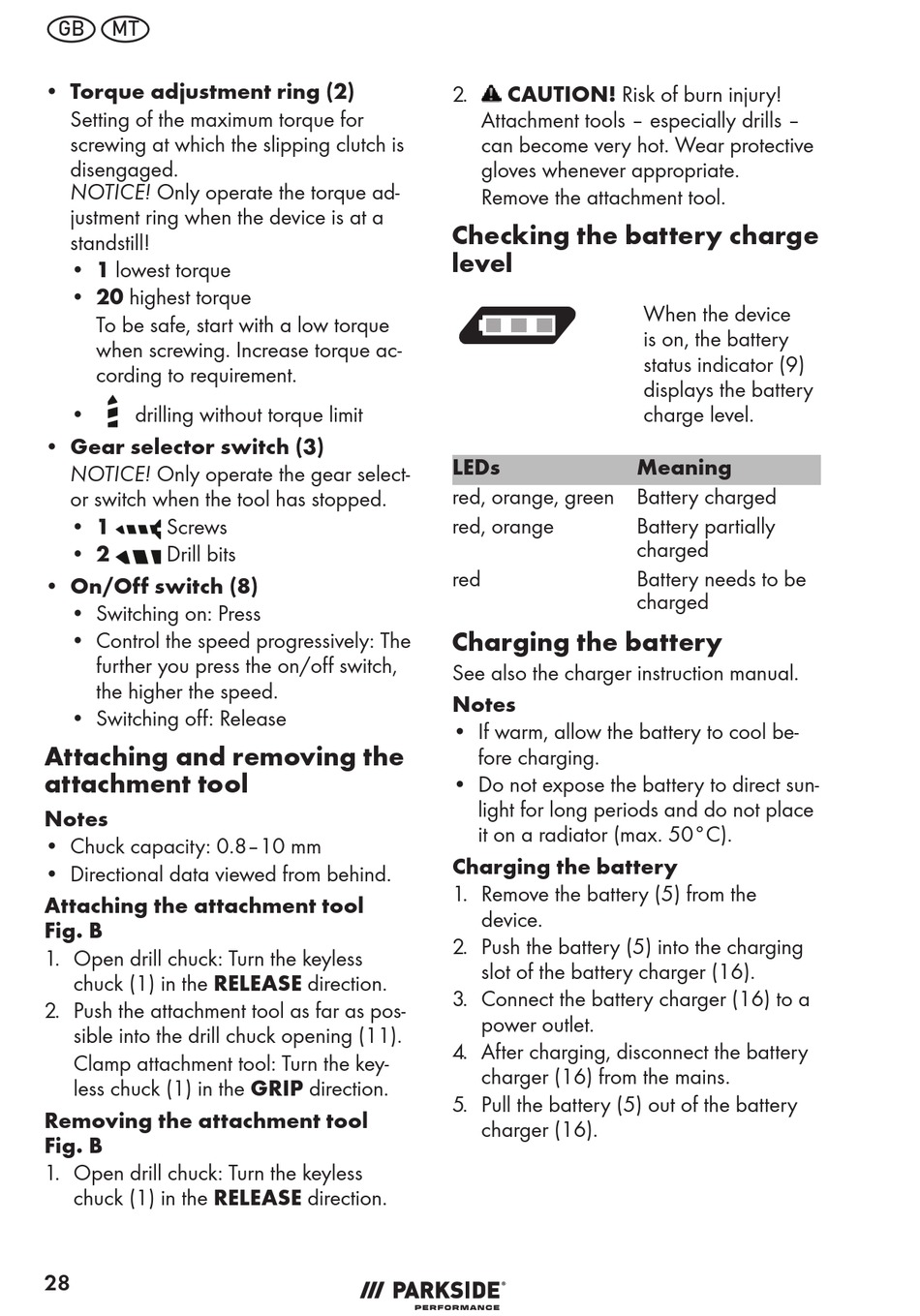

• Torque adjustment ring (2)
Setting of the maximum torque for
screwing at which the slipping clutch is
disengaged.
NOTICE! Only operate the torque ad-
justment ring when the device is at a
standstill!
• 1 lowest torque
• 20 highest torque
To be safe, start with a low torque
when screwing. Increase torque ac-
cording to requirement.
•
drilling without torque limit
• Gear selector switch (3)
NOTICE! Only operate the gear select-
or switch when the tool has stopped.
• 1
Screws
• 2
Drill bits
• On/Off switch (8)
• Switching on: Press
• Control the speed progressively: The
further you press the on/off switch,
the higher the speed.
• Switching off: Release
Attaching and removing the
attachment tool
Notes
• Chuck capacity: 0.8–10 mm
• Directional data viewed from behind.
Attaching the attachment tool
Fig. B
1. Open drill chuck: Turn the keyless
chuck (1) in the RELEASE direction.
2. Push the attachment tool as far as pos-
sible into the drill chuck opening (11).
Clamp attachment tool: Turn the key-
less chuck (1) in the GRIP direction.
Removing the attachment tool
Fig. B
1. Open drill chuck: Turn the keyless
chuck (1) in the RELEASE direction.
28
CAUTION! Risk of burn injury!
2.
Attachment tools – especially drills –
can become very hot. Wear protective
gloves whenever appropriate.
Remove the attachment tool.
Checking the battery charge
level
LEDs
red, orange, green Battery charged
red, orange
red
Charging the battery
See also the charger instruction manual.
Notes
• If warm, allow the battery to cool be-
fore charging.
• Do not expose the battery to direct sun-
light for long periods and do not place
it on a radiator (max. 50°C).
Charging the battery
1. Remove the battery (5) from the
device.
2. Push the battery (5) into the charging
slot of the battery charger (16).
3. Connect the battery charger (16) to a
power outlet.
4. After charging, disconnect the battery
charger (16) from the mains.
5. Pull the battery (5) out of the battery
charger (16).
When the device
is on, the battery
status indicator (9)
displays the battery
charge level.
Meaning
Battery partially
charged
Battery needs to be
charged
