WELDING METHODS

1.1 TIG

1.1 CLEANING THE WORKPIECE BEFORE WELDING

TIG welding is very sensitive to surface contamination. Therefore, it is necessary to clean

workpieces of welding grease, paint, and impurities before welding.

1.2 DC TIG WELDING

1. Connect the shielding gas supply hose to the connection 23 on the back of the

welding machine, use the supplied clamps,

2. In the control field, use button 7 to select "DC" and use the button 11 to select "HF

TIG" or "LIFT-TIG".

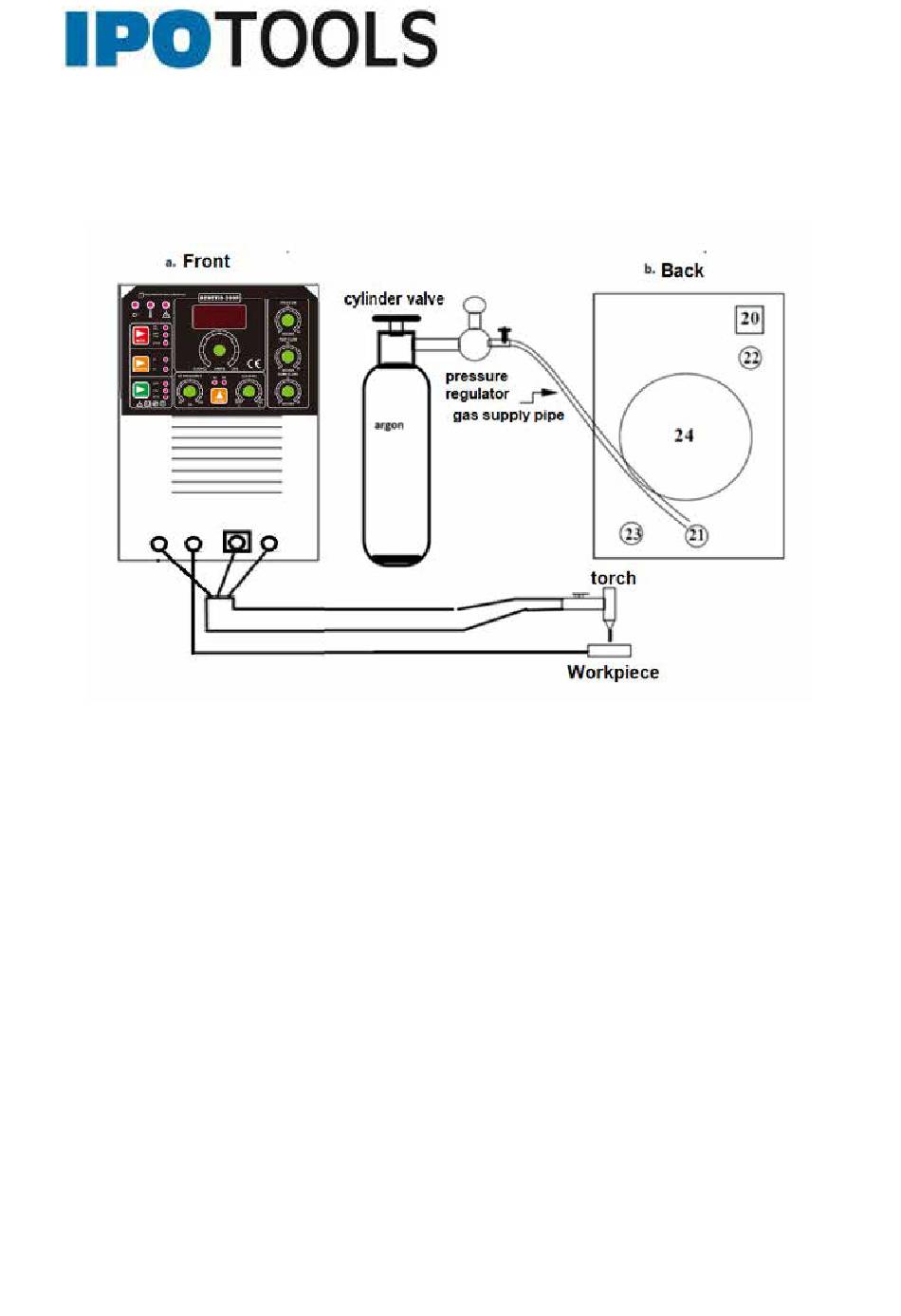

3. Connect the TIG torch to terminals 15, 17, and 18 on the front of the welding

machine, torch assembly according to the picture below,
