CONTROL PANEL

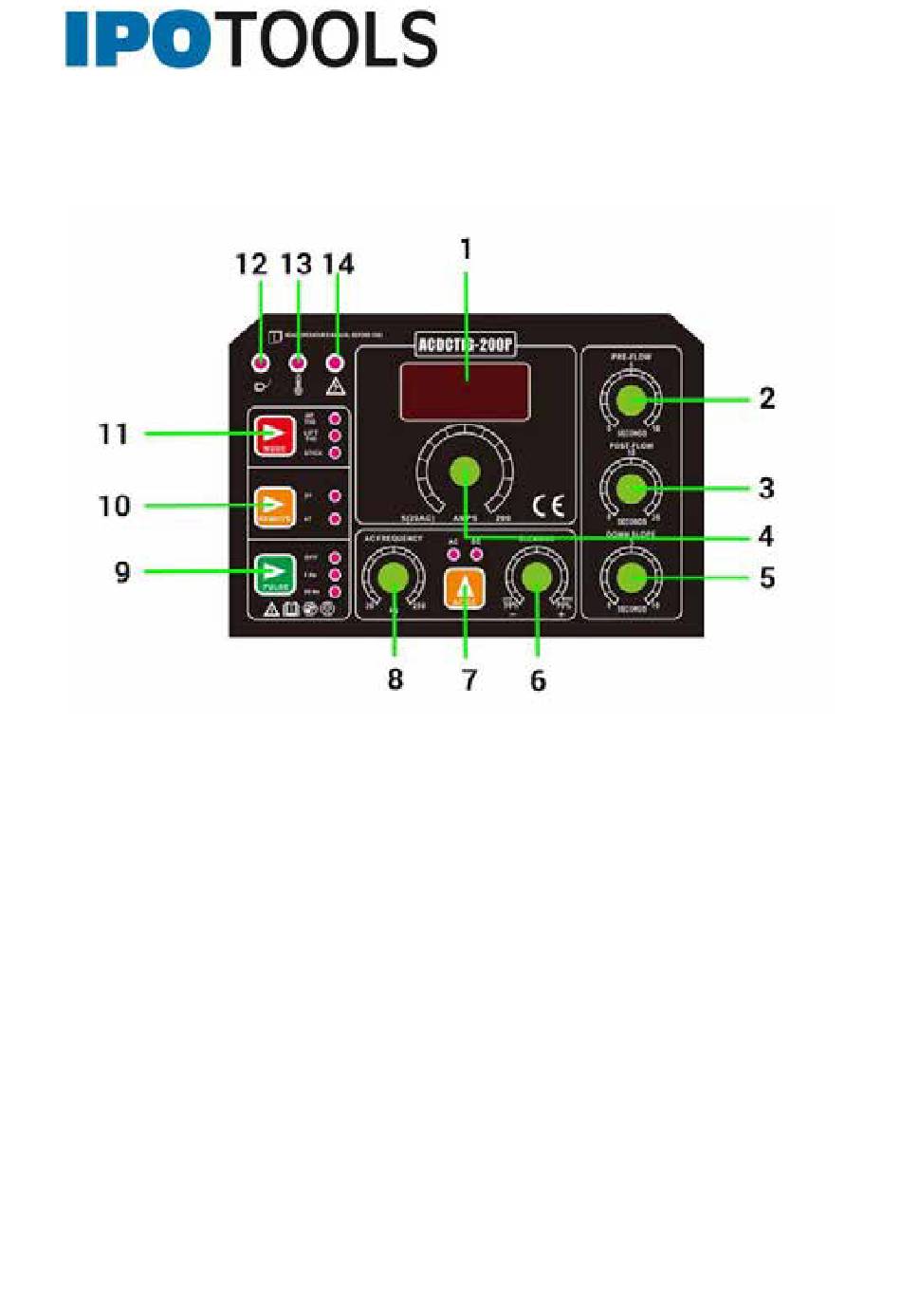

Description of the control panel and the front and back of the appliance:
1. Digital display: Amps
2. Setting the pre-flow time
3. Set post-flow time
4. Setting knob: Amps
5. Down slope setting
6. Setting the cleaning effect (AC Balance)
7. Switch: AC or DC
8. Set the AC frequency
9. Pulse setting: off / 1Hz / 50Hz
10. Switch between 2T and 4T
11. Switch: HF ignition / LIFT ignition / STICK ignition
12. Signal light: On
13. Warning light: Overheating
14. Warning light: Overvoltage
