Brush motor circuit breaker
www.cleanfix.com
Attention, before changing the fuse, disconnect the battery via the charging
plug of the machine (risk of short circuit)!

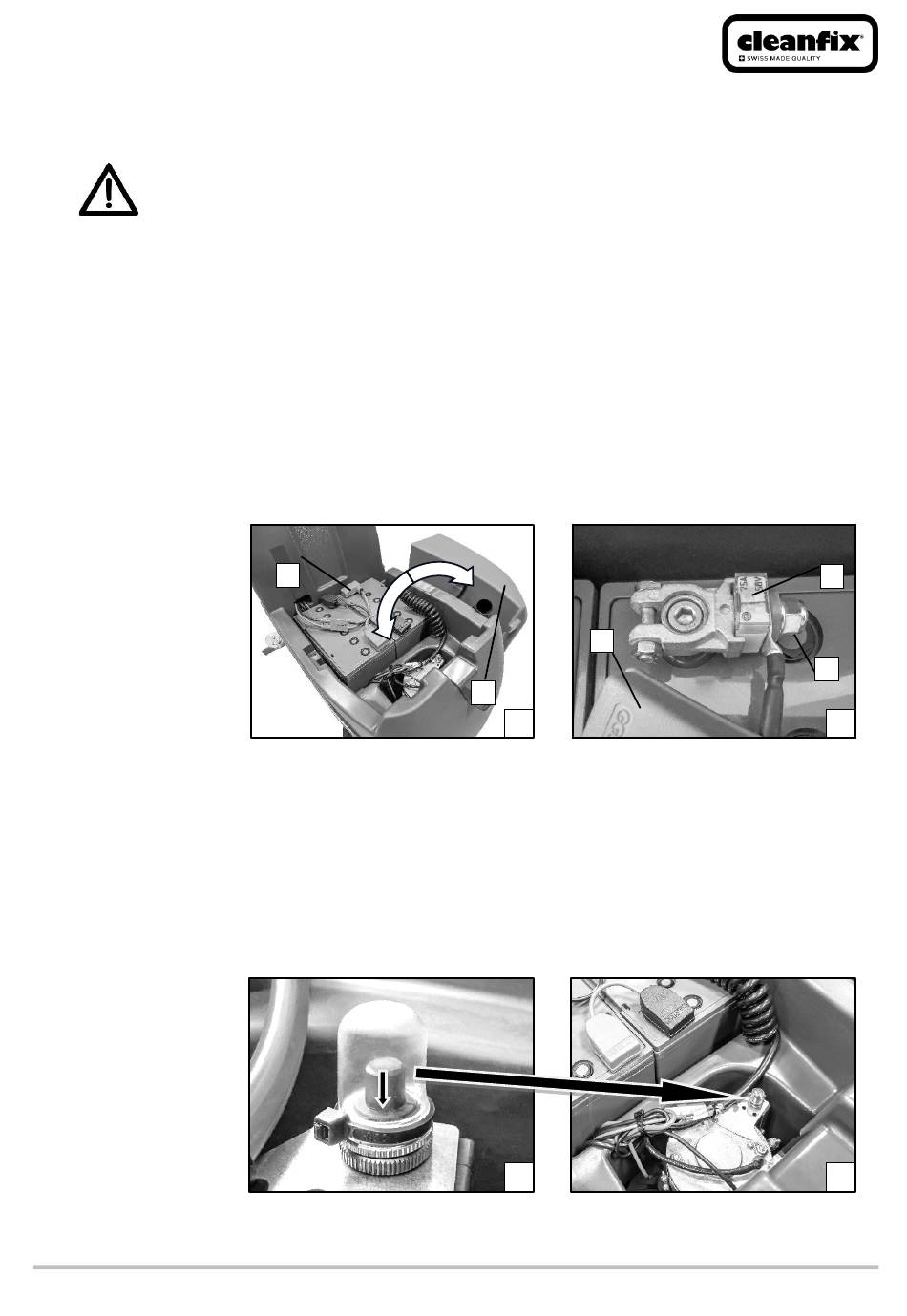

The circuit of the machine is protected by a main fuse (C, Fig. 27).
The fuse responds immediately in the event of a prolonged overload or short circuit. If
the fuse responds more frequently or responds immediately after replacement, there
is a technical defect.
Contact your service center immediately!
To replace the fuse (C, Fig. 27), lift off the dirty water tank (D, Fig. 26). Lift the red
cover cap (A) on the positive pole of the battery, unscrew the nut (B) from the fuse
switch, remove the defective fuse, insert the new fuse and fasten the nut again.
(Fig. 27) Replace positive terminal cover and replace dirty water tank.
Check the machine functions.
Use only fuses with the prescribed value (75A)!
A
The brush motor is equipped with additional overload protection (E, Fig. 26), which
triggers as soon as the brush is subjected to excessive pressure or resistance.
The lock can be deactivated again by pressing the protective switch on the brush
motor under the dirty water tank. (Fig. 28 + 29)
A
D
26
28
40
C
B
27
29
435.042
