Commissioning
Warning
www.cleanfix.com
Never use a defective device!

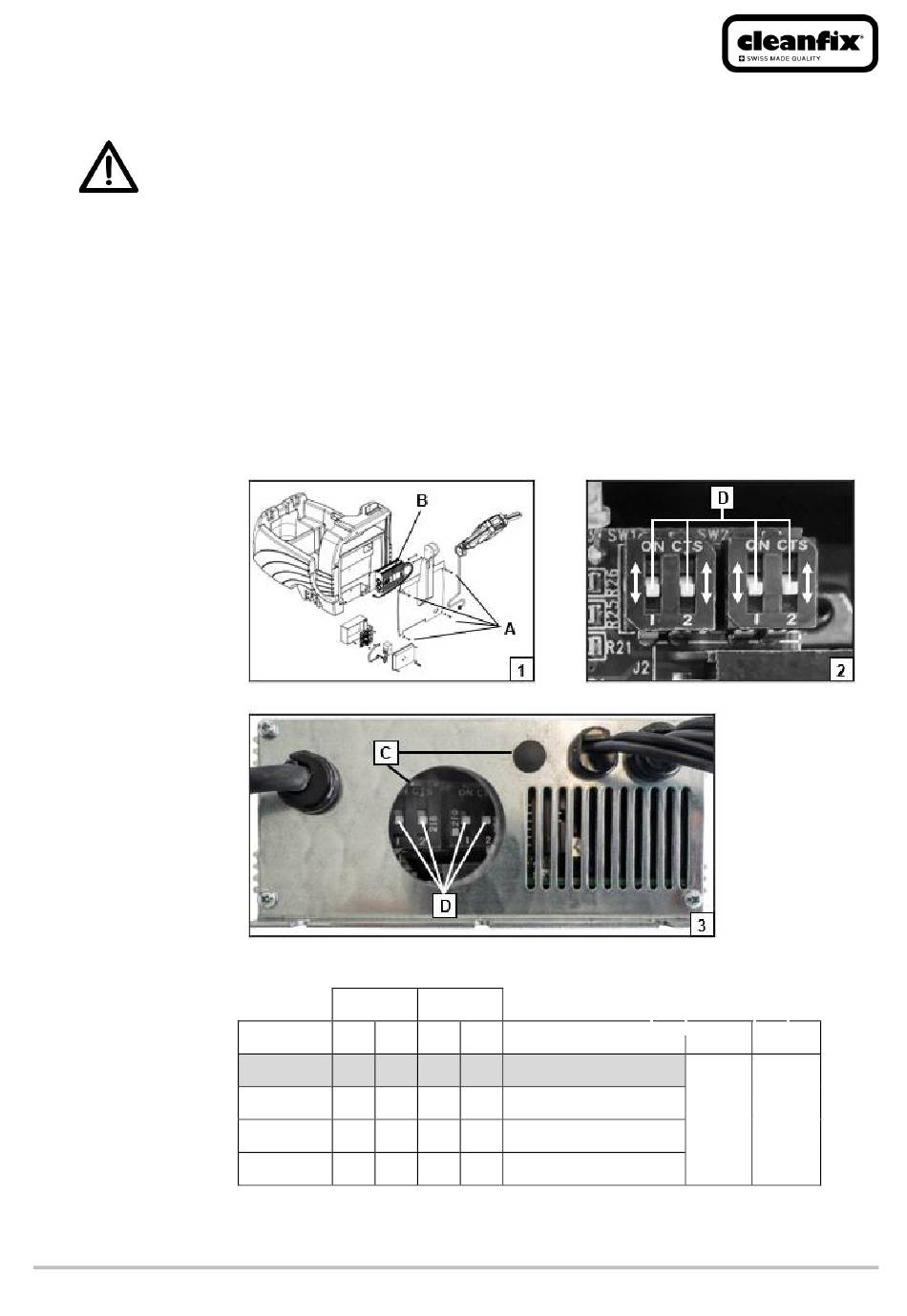

• The machine is factory set for IUIa EXIDE GEL batteries. If you use AGM or wet
batteries, it is mandatory to adjust the charging curve in the charger.
To do this, proceed as follows:
• Use the 4 screws (A) to remove the plate with the steering handle on the rear
side (Fig. 1). The charger is located behind it (B, Fig. 1+3).
• In the charger it has a hole (C), which is covered with a black cover cap.
Remove the cover cap and adjust the Dip switch (D) according to the battery
type in the list below with a small screwdriver and reassemble all parts.
left
P/N
DIP1 DIP2 DIP1 DIP2 Charge curve / Batterietyp
827-046-000 OFF OFF OFF OFF
827-046-001 OFF
ON
827-046-002 ON
OFF OFF OFF
827-046-003 ON
ON
right
IUIa EXIDE GEL
OFF OFF
IUoU AGM
IUla Nass
OFF OFF
IUIUo AGM DISCOVER
31
Fuse
Voltage
13A
24V
435.042
