3.3 Dimensioned drawings
According to the design, the measures may vary
Note
slightly.
3.3.1 Design with liquid trap
ca. 180
ca. 127
ca. 127

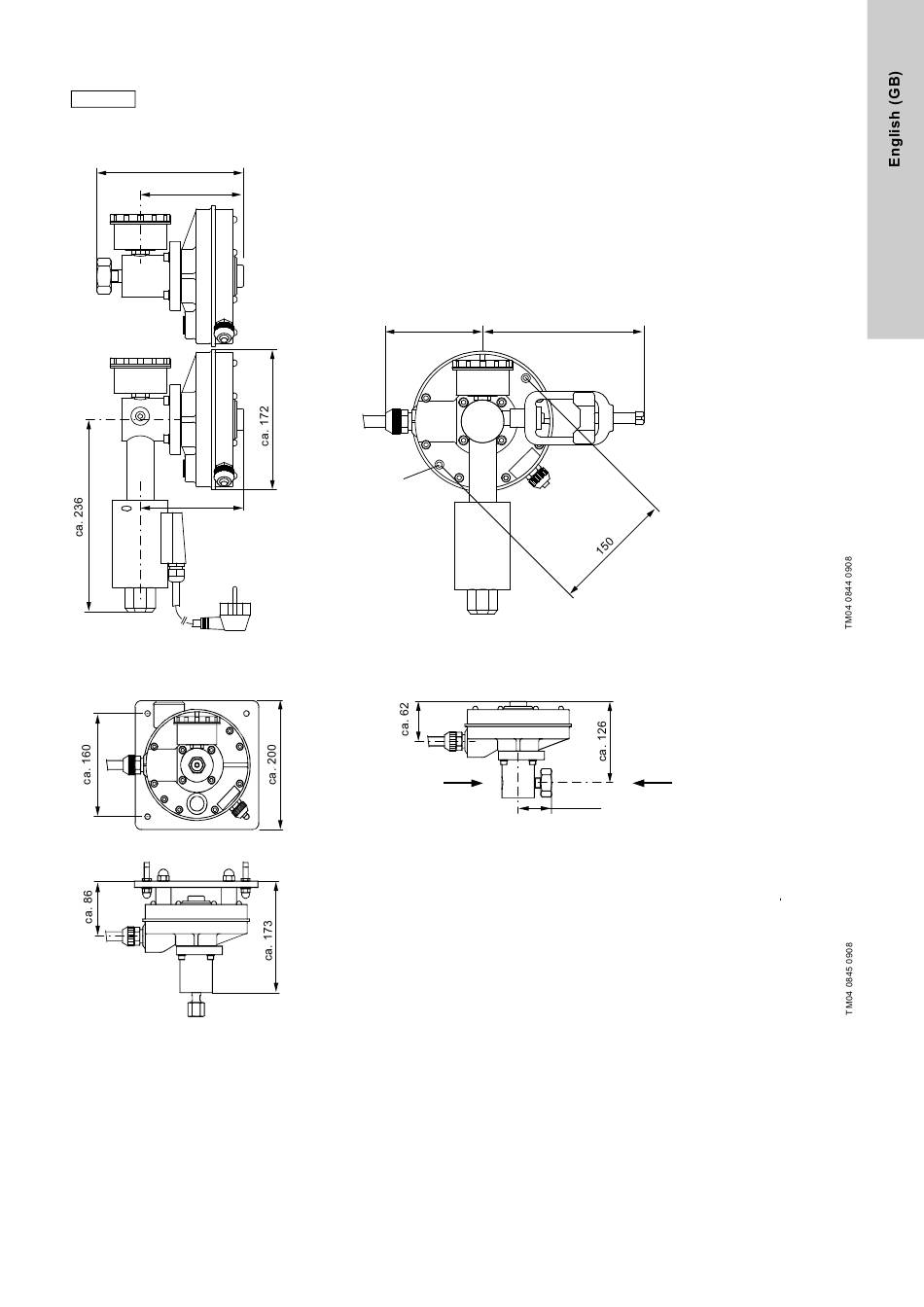

Fig. 13 Dimensional drawing vacuum regulator
3.3.2 Design with mounting plate
Fig. 14 Dimensional drawing vacuum regulator on mounting plate
ca. 119
M6
pressure connection on the right
(gas valve facing left)
ca. 198
pressure connection on the left
ca. 54
(gas valve facing right)
