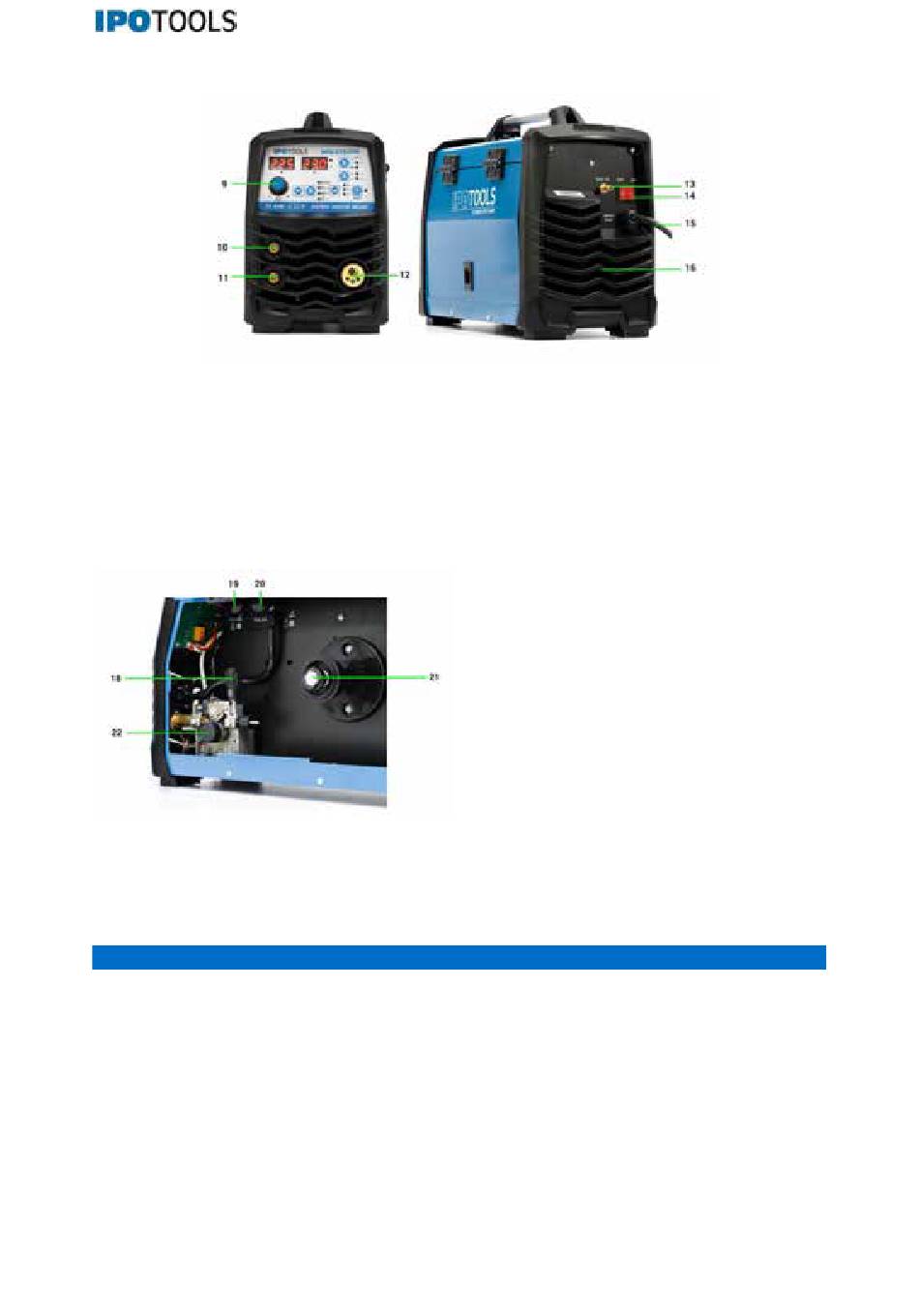

10. Connection "-"
11. Connection "+"
12. EURO-central connector for MIG burners
13. Gas inlet
14. On / off switch
15. Connection cable
16. Fan
* Be careful not to overtighten the tensioner lever when mounting the wire!
- Open the door on the side of the device, move the star knob towards you and lift the lid of the clamping
system.
- Make sure that, depending on the welding wire diameter, the appropriate wire feed roller (e.g. 0.8mm,
1.0mm, etc.) is in the wire feed system (the wire feed roller side with the correct mm specification must
point towards the wire feed).
- Unscrew the screw of the wire locating pin, place the corresponding welding wire on the wire locating
pin and retighten the screw (The welding wire must be positioned so that it enters the wire feeder from
its lower part.)
18. Star grip (tension lever)*
19. "-" Pol
20. "+" Pol
21. Wire take-up bolts
22. Wire feed
WELDING WIRE INSTALATION
