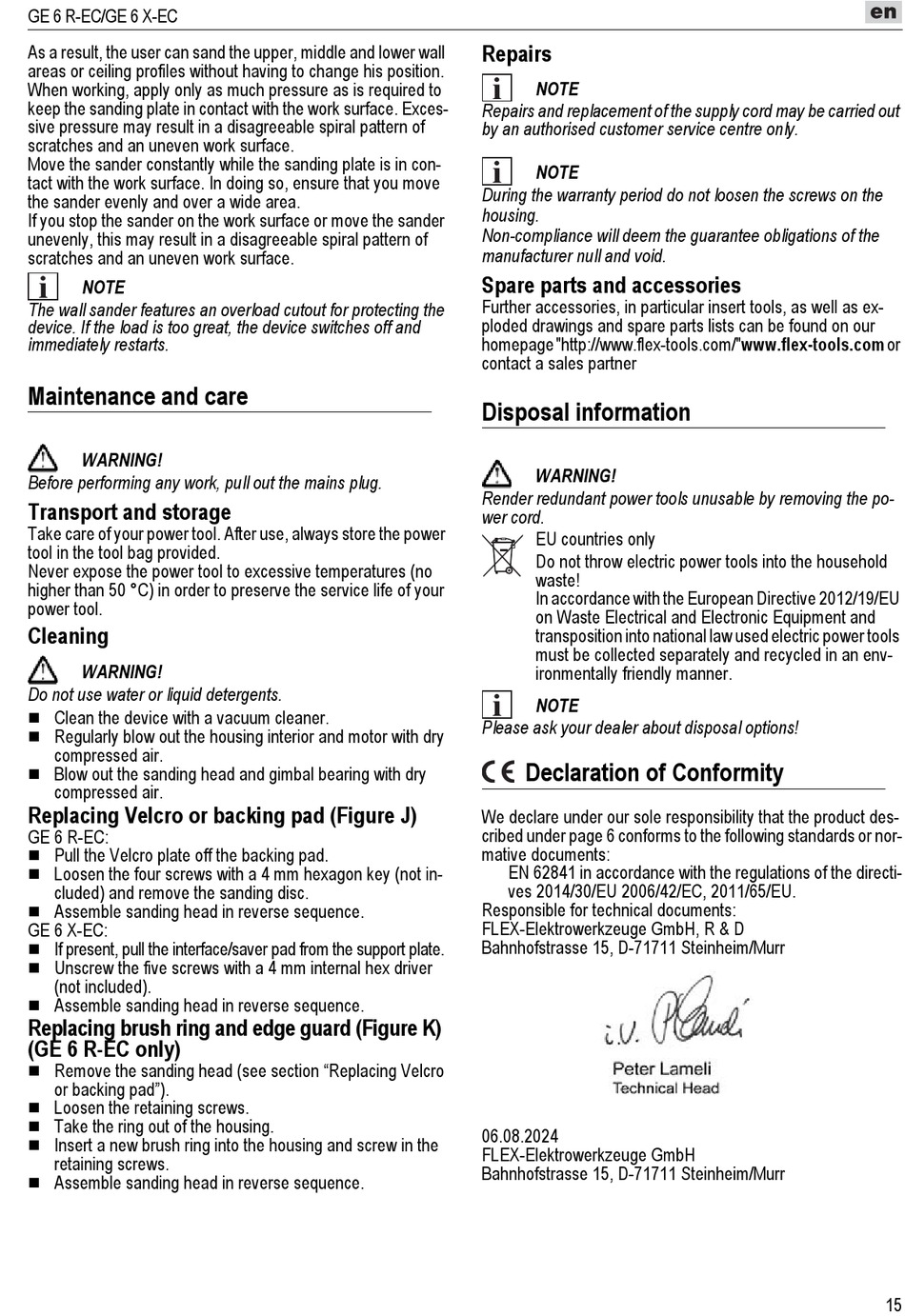

GE 6 R-EC/GE 6 X-EC
As a result, the user can sand the upper, middle and lower wall
areas or ceiling profiles without having to change his position.
When working, apply only as much pressure as is required to
keep the sanding plate in contact with the work surface. Exces-
sive pressure may result in a disagreeable spiral pattern of
scratches and an uneven work surface.
Move the sander constantly while the sanding plate is in con-
tact with the work surface. In doing so, ensure that you move
the sander evenly and over a wide area.
If you stop the sander on the work surface or move the sander
unevenly, this may result in a disagreeable spiral pattern of
scratches and an uneven work surface.
NOTE
The wall sander features an overload cutout for protecting the
device. If the load is too great, the device switches off and
immediately restarts.
Maintenance and care
WARNING!
Before performing any work, pull out the mains plug.
Transport and storage
Take care of your power tool. After use, always store the power
tool in the tool bag provided.
Never expose the power tool to excessive temperatures (no
higher than 50 °C) in order to preserve the service life of your
power tool.
Cleaning
WARNING!
Do not use water or liquid detergents.
Clean the device with a vacuum cleaner.

Regularly blow out the housing interior and motor with dry

compressed air.
Blow out the sanding head and gimbal bearing with dry

compressed air.
Replacing Velcro or backing pad (Figure J)
GE 6 R-EC:
Pull the Velcro plate off the backing pad.

Loosen the four screws with a 4 mm hexagon key (not in-

cluded) and remove the sanding disc.
Assemble sanding head in reverse sequence.

GE 6 X-EC:
If present, pull the interface/saver pad from the support plate.

Unscrew the five screws with a 4 mm internal hex driver

(not included).
Assemble sanding head in reverse sequence.

Replacing brush ring and edge guard (Figure K)
(GE 6 R-EC only)
Remove the sanding head (see section "Replacing Velcro

or backing pad").
Loosen the retaining screws.

Take the ring out of the housing.

Insert a new brush ring into the housing and screw in the

retaining screws.
Assemble sanding head in reverse sequence.

Repairs
NOTE
Repairs and replacement of the supply cord may be carried out
by an authorised customer service centre only.
NOTE
During the warranty period do not loosen the screws on the
housing.
Non-compliance will deem the guarantee obligations of the
manufacturer null and void.
Spare parts and accessories
Further accessories, in particular insert tools, as well as ex-
ploded drawings and spare parts lists can be found on our
homepage "http://www.flex-tools.com/"www.flex-tools.com or
contact a sales partner
Disposal information
WARNING!
Render redundant power tools unusable by removing the po-
wer cord.
EU countries only
Do not throw electric power tools into the household
waste!
In accordance with the European Directive 2012/19/EU
on Waste Electrical and Electronic Equipment and
transposition into national law used electric power tools
must be collected separately and recycled in an env-
ironmentally friendly manner.
NOTE
Please ask your dealer about disposal options!
Declaration of Conformity
We declare under our sole responsibility that the product des-
cribed under page 6 conforms to the following standards or nor-
mative documents:
EN 62841 in accordance with the regulations of the directi-
ves 2014/30/EU 2006/42/EC, 2011/65/EU.
Responsible for technical documents:
FLEX-Elektrowerkzeuge GmbH, R & D
Bahnhofstrasse 15, D-71711 Steinheim/Murr
06.08.2024
FLEX-Elektrowerkzeuge GmbH
Bahnhofstrasse 15, D-71711 Steinheim/Murr
