Full optional control unit wiring connection diagram
Code 4WCE4C03045A
The controller unit called "FULL OPTIONAL" integrates the STANDARD unit with the following additional commands:
- Partial opening (timed)
- Control in cabin
- Control for vibrator
In this case, the side cover (3) will have not only the 2 usual cable glands (pg 16) for motor and supply, but also 3 slots
for inserting 3 additional cable glands (pg 7) for the aforementioned commands.

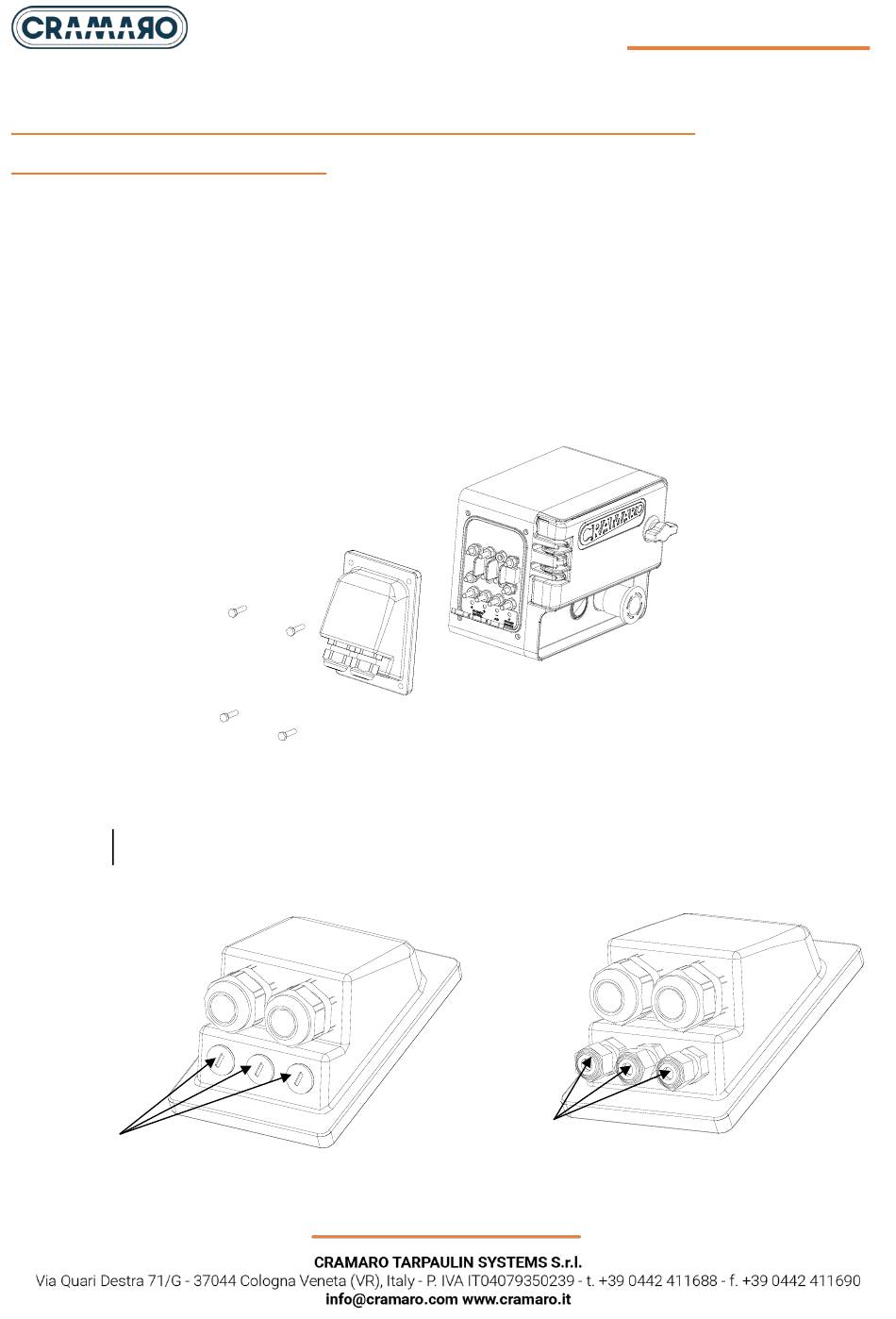

1. Open the side cover (3)
Fig. 17
2. Remove the cap indicated in figure 18 and replace it with the cable gland (pg 7) provided.
WARNING: remove only the cap(s) used for the auxiliary connection(s) to be executed.
Fig. 18
Caps Cable glands
45
CONTROL UNIT
