Assemby steps
Control unit with standard fixing plate

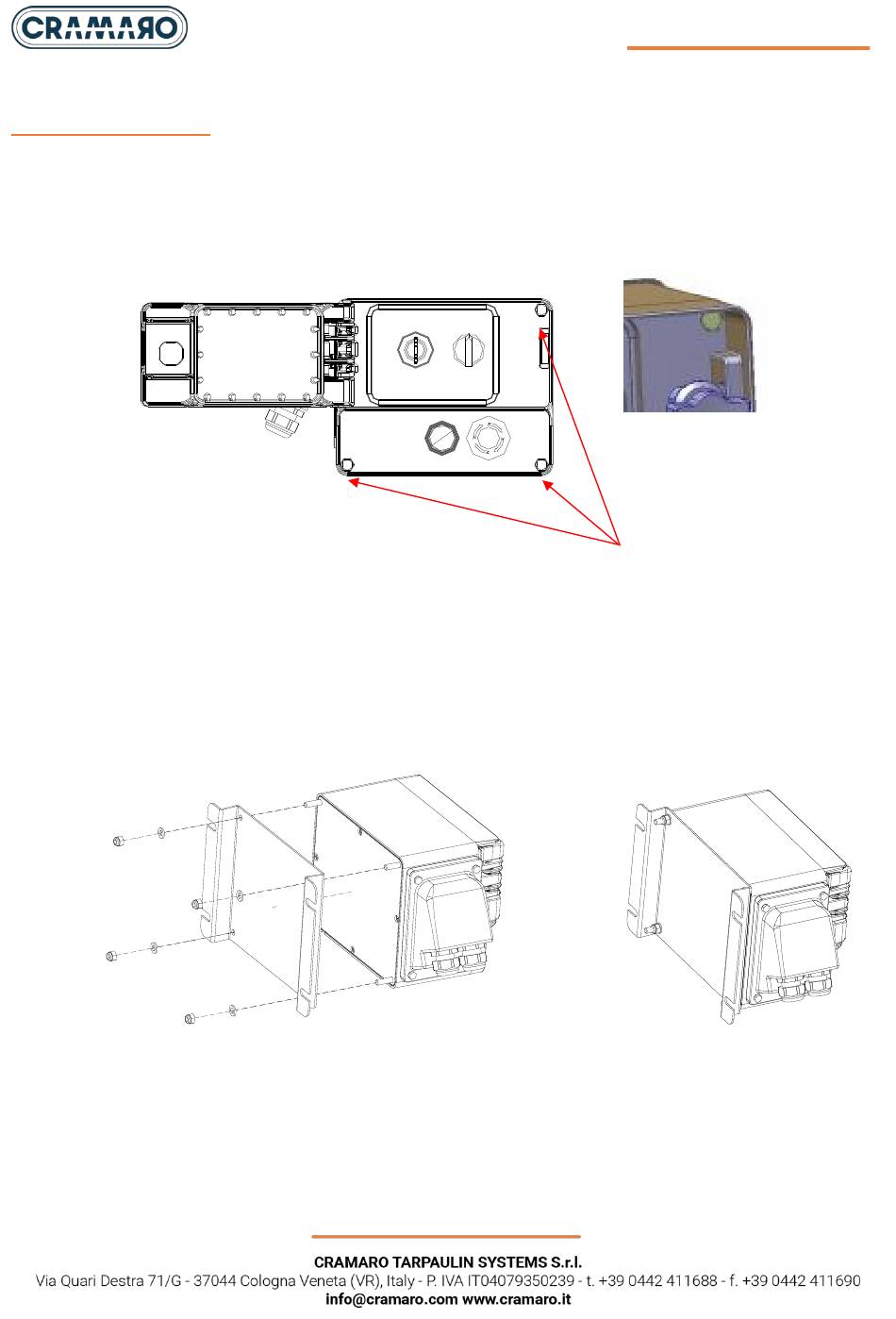

1. After removing completely the upper screw as previously indicated, insert the 3 TE M6x110 screws provided
into the relevant slots in the front part of the control unit (fig.7)
Fig.7
2. Insert the four screws that come out of the control unit into the holes of the support plate and lock with the self-
locking nuts provided.(fig.8)
The tightening torque for this operation must be: MAX 4 Nm.
Fig.8
0 I UNCOVER COVER
Slots for TE M6x110 SCREWS
