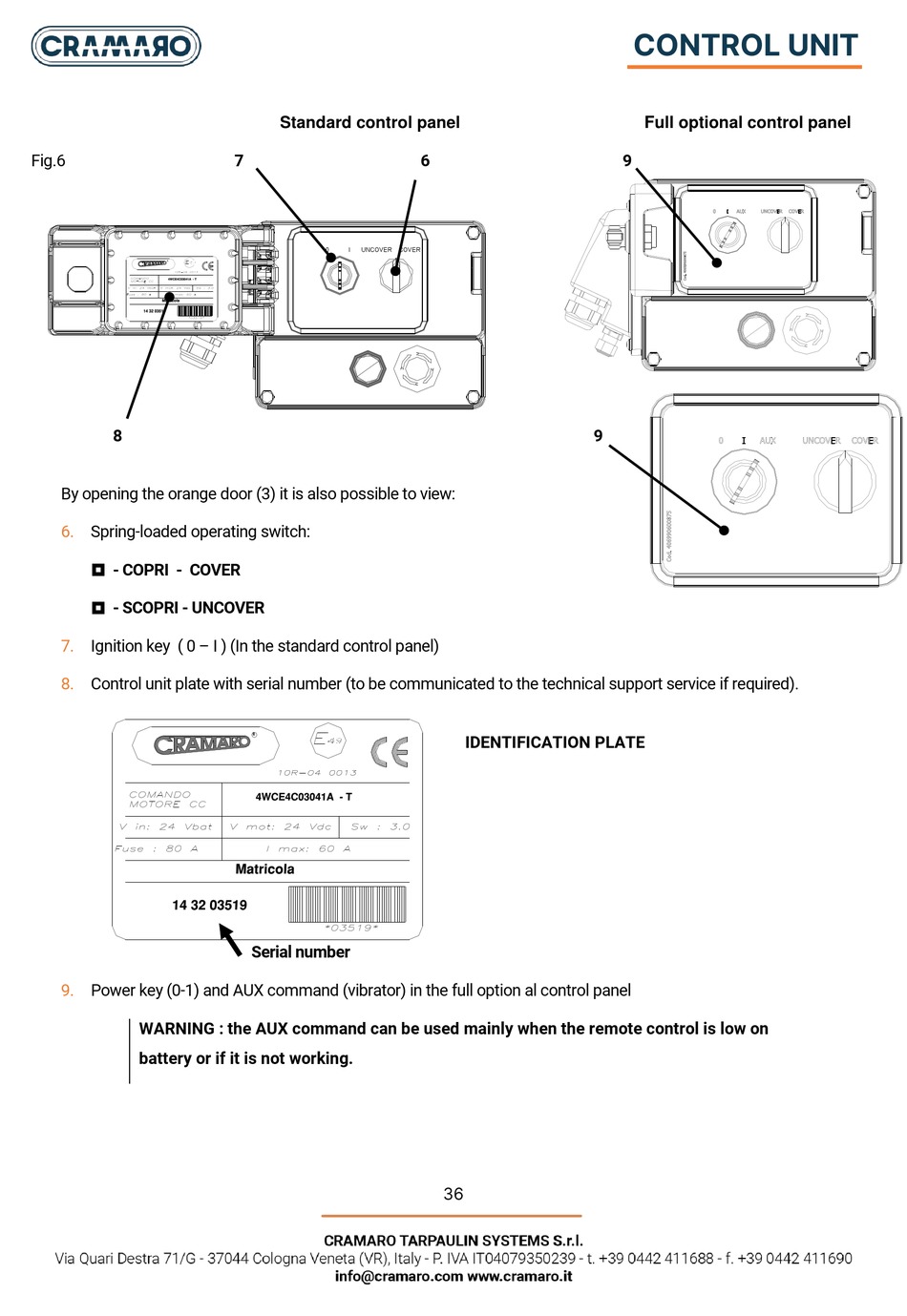

Fig.6
8
By opening the orange door (3) it is also possible to view:
6. Spring-loaded operating switch:
 - COPRI - COVER
 - SCOPRI - UNCOVER
7. Ignition key ( 0 – I ) (In the standard control panel)
8. Control unit plate with serial number (to be communicated to the technical support service if required).
9. Power key (0-1) and AUX command (vibrator) in the full option al control panel
WARNING : the AUX command can be used mainly when the remote control is low on
battery or if it is not working.
Standard control panel
7
0 I UNCOVER COVER
Serial number
6
IDENTIFICATION PLATE
36
CONTROL UNIT
Full optional control panel
9
9
