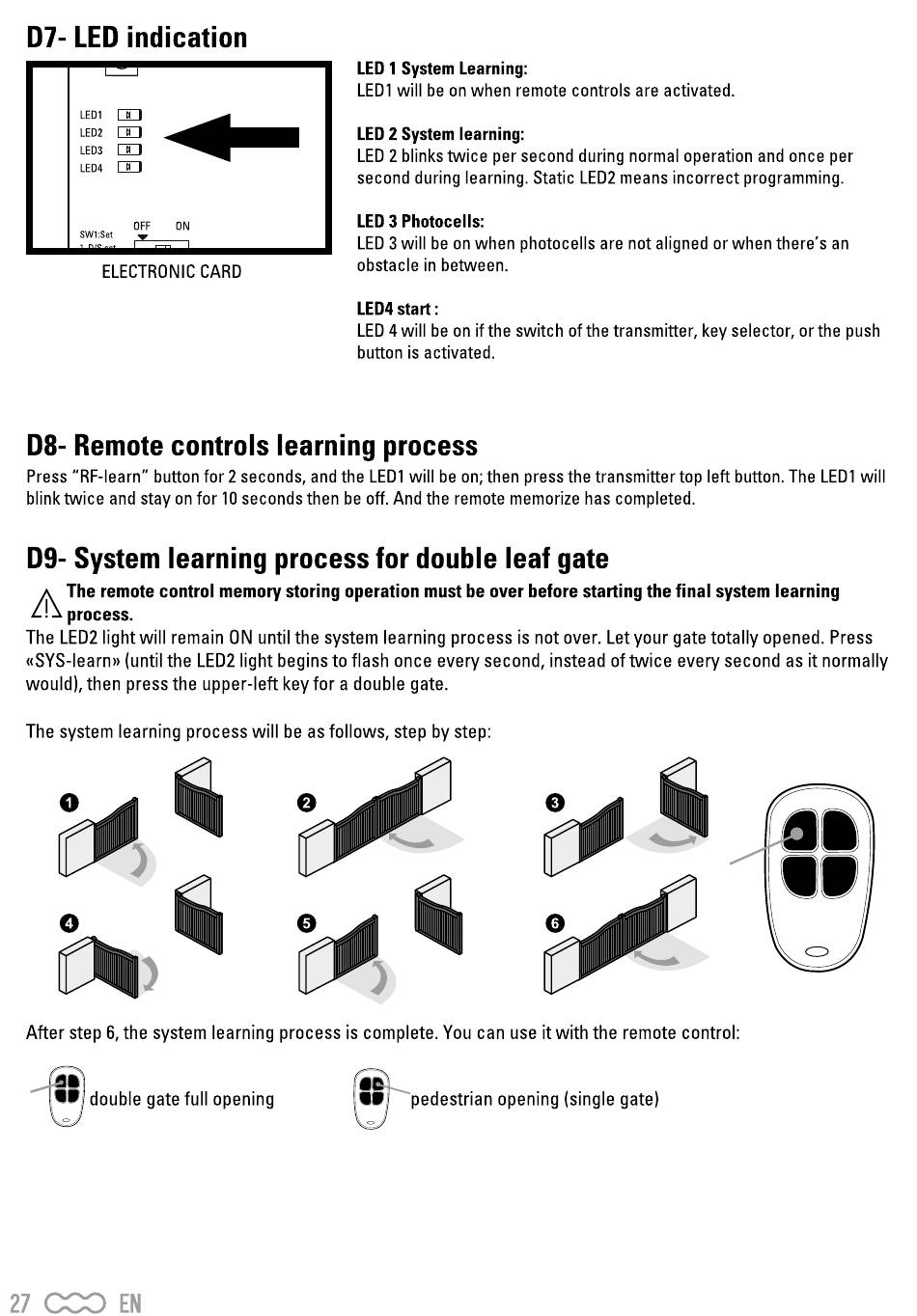

D7- LED indication
LEDI
LED2
LED3
LED4
OFF ON
SWISet
ELECTRONIC CARD
D8- Remote controls learning process
Press "RF-learn" button for 2 seconds, and the LEDI will be on; then press the transmitter top left button. The LEDI will
blink twice and stay on for 10 seconds then be off. And the remote memorize has completed.
D9- System learning process for double leaf gate
A The remote control memory storing operation must be over before starting the final system learning
process.
The LED2light will remain ON until the system learning process is not over. Let your gate totally opened. Press
«SYS-learn» (until the LED2light begins to flash once every second, instead of twice every second as it normally
would), then press the upper-left key for a double gate.
The system learning process will be as follows, step by step:
o
o
After step 6, the system learning process is complete. You can use it with the remote control:
double gate full opening
27 CCO EN
LED 1 System Learning:
LEDI will be on when remote
LED2 System learning:
LED2 blinks twice per second during normal operation and once per
second during learning. Static LED2means incorrect programming.
LED 3 Photocells:
LED 3 will be on when photocells are not aligned or when there's an
obstacle in between.
LED4 start :
LED 4 will be on if the switch of the transmitter, key selector, or the push
button is activated.
pedestrian opening (single gate)
controls are activated.
