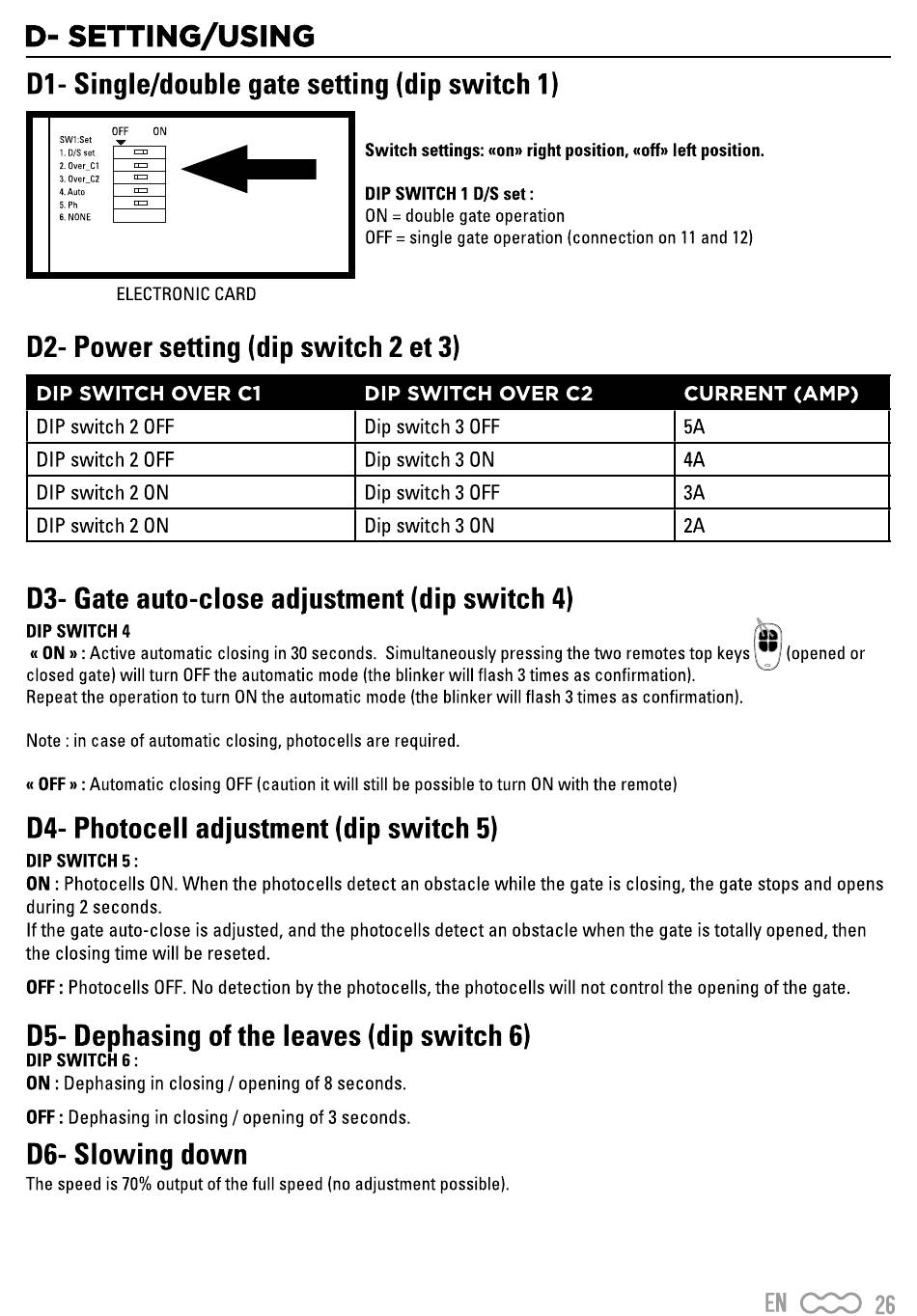

D- SETTING/USING
Dl- Single/double gate setting (dip switch 1)
ON
swl:sgt
2. Over_C1
3. over_c2
4 Auto
E. NONE
ELECTRONIC
D2- Power setting (dip switch 2 et 3)
DIP SWITCH OVER
DIP switch 2 OFF
DIP switch 2 OFF
DIP switch 2 ON
DIP switch 2 ON
D3- Gate auto-close adjustment (dip switch 4)
DIP SWITCH 4
« ON » : Active automatic closing in 30 seconds. Simultaneously pressing the two remotes top keys
closed gate) will turn OFFthe automatic mode(the blinkerwill flash 3 times as confirmation).
Repeat the operation to turn ON the automatic mode (the blinker will flash 3 times as confirmation).
Note : in case of automatic closing, photocells are required.
« OFF» : Automatic closing OFF(caution it will still be possibleto turn ONwith the remote)
D4- Photocell adjustment (dip switch 5)
DIP SWITCH 5 :
ON : Photocells ON.When the photocells detect an obstacle while the gate is closing, the gate stops and opens
during 2 seconds.
If the gate auto-close is adjusted, and the photocells detect an obstacle when the gate is totally opened, then
the closing time will be reseted.
OFF: Photocells OFF.No detection by the photocells, the photocells will not control the opening of the gate.
D5- Dephasing of the leaves (dip switch 6)
DIP SWITCH 6 :
ON : Dephasing in closing / opening of 8 seconds.
OFF: Dephasing in closing / opening of 3 seconds.
D6- Slowing down
The speed is 70% output of the full speed (no adjustment possible).
Switch settings: «on»right position, «off» left position.
DIP SWITCH 1 WS set:
ON = double gate operation
OFF= single gate operation (connection on 11 and 12)
CARD
Cl DIP
Dip switch 3 OFF
Dip switch 3 ON
Dip switch 3 OFF
Dip switch 3 ON
SWITCH OVER C2 CURRENT (AMP)
2A
(opened or
EN CCO 26
