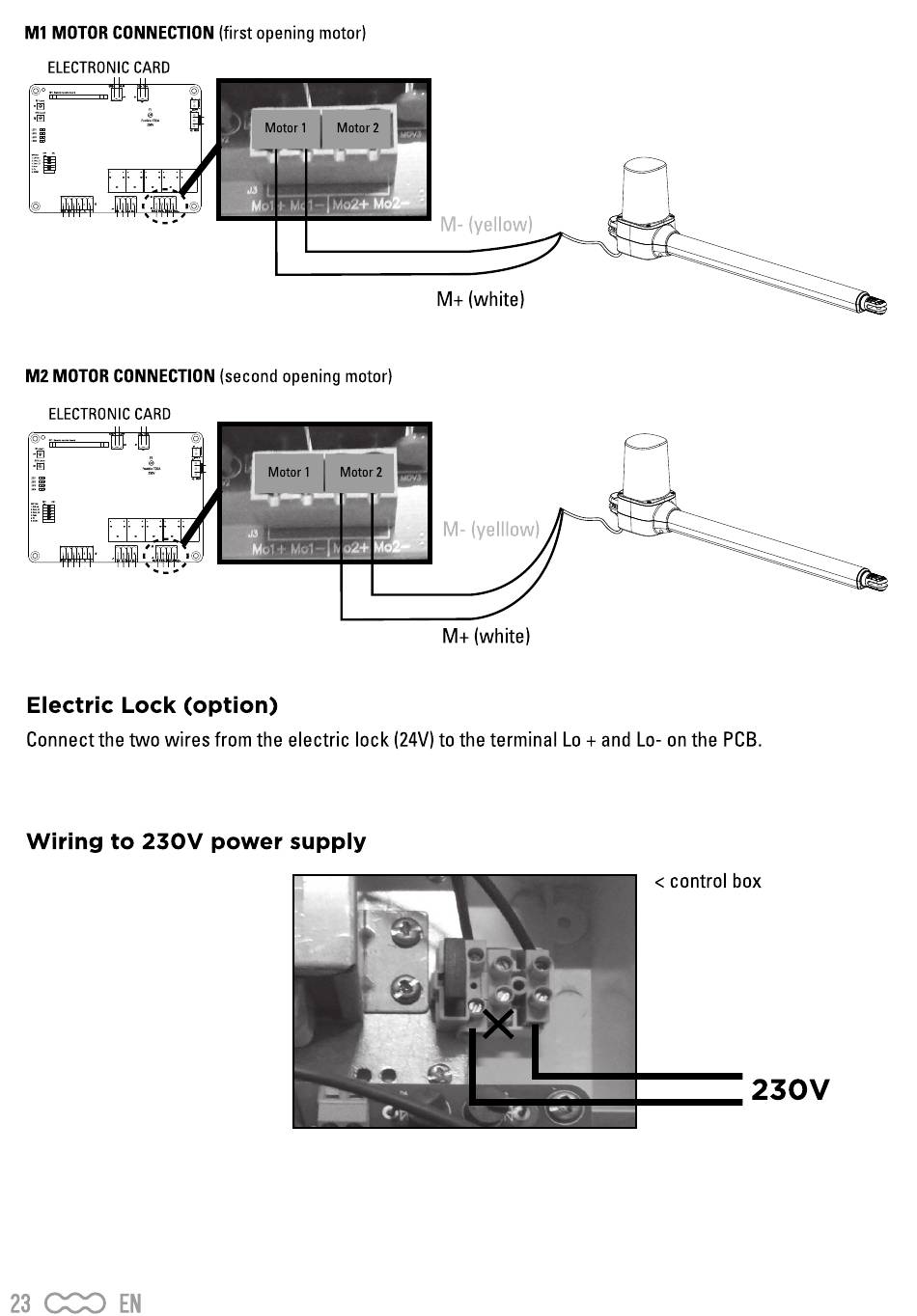

MI MOTOR CONNECTION (first opening motor)
ELECTRONIC CARD
M2 MOTORCONNECTION (secondopening motor)
ELECTRONIC CARD
Electric Lock (option)
Connect the two wires from the electric lock (24V) to the terminal Lo + and Lo- on the PCB.
Wiring to 230V
23 CCO EN
Motor I Motor 2
Motor 1 Motor 2
power supply
M- (yellow)
M+ (white)
M- (yelllow)
M+ (white)
< control box
230V
