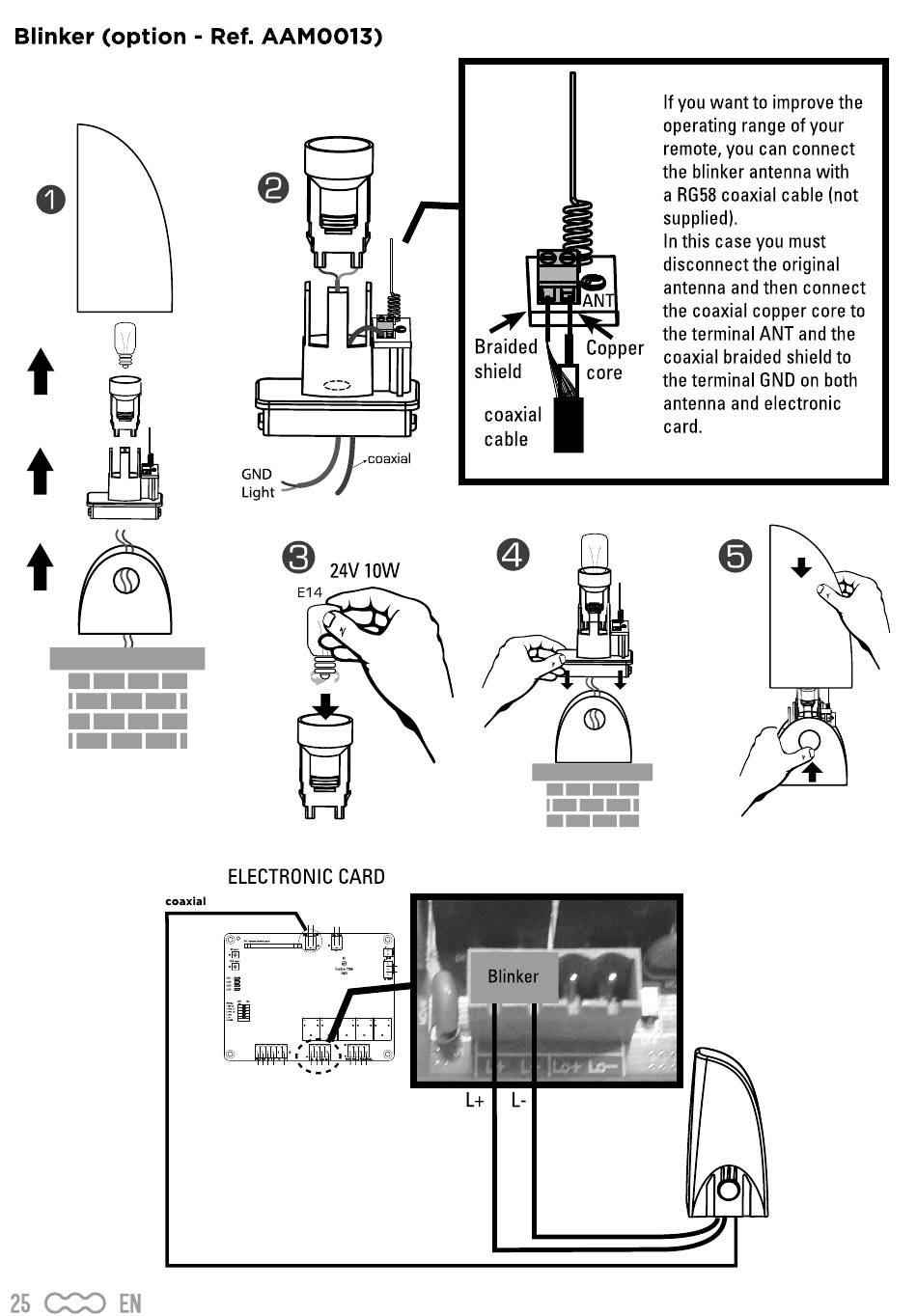

Blinker (option
O
coaxial
25 CCO EN
- Ref. AAM0013)
coaxla
GND
Light
24v low
E14
ELECTRONIC CARD
.clil u]
AN
Braided Copper
shield
core
coaxial
cable
O
Blinker
If you want to improve the
operating range of your
remote, you can connect
the blinker antenna with
a RG58 coaxial cable (not
supplied).
In this case you must
disconnect the original
antenna and then connect
the coaxial copper core to
the terminal ANT and the
coaxial braided shield to
the terminal GND on both
antenna and electronic
card.
