Mounting the Switch

Rack Mounting

16 10 00 Lin k
17
18
19
20
21 10 /1 00 Lin k
22
23
24

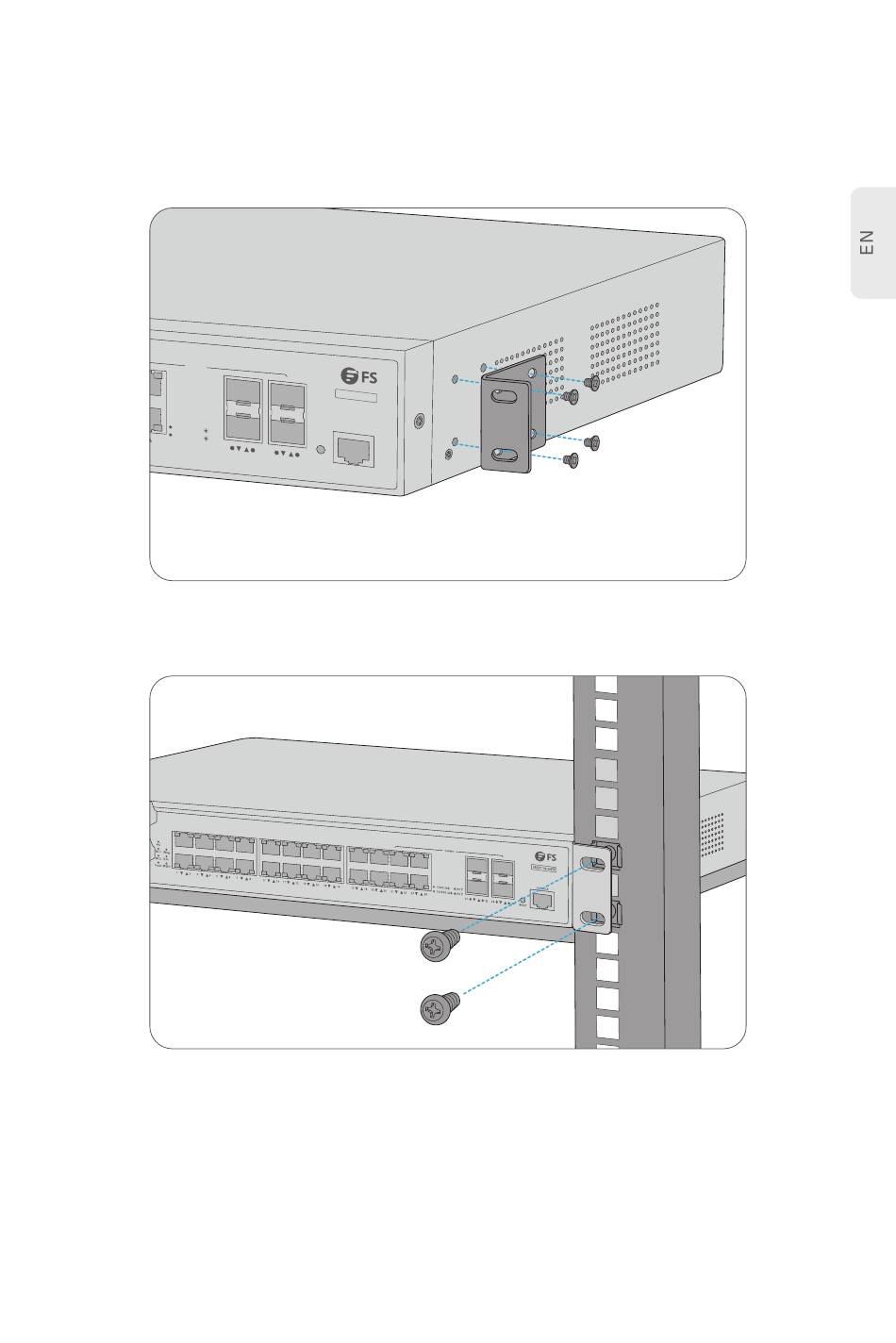

1. Secure the mounting brackets to the two sides of the switch with supplied screws.
2. Attach the switch to the rack using M6 screws and cage nuts (self-prepared).
