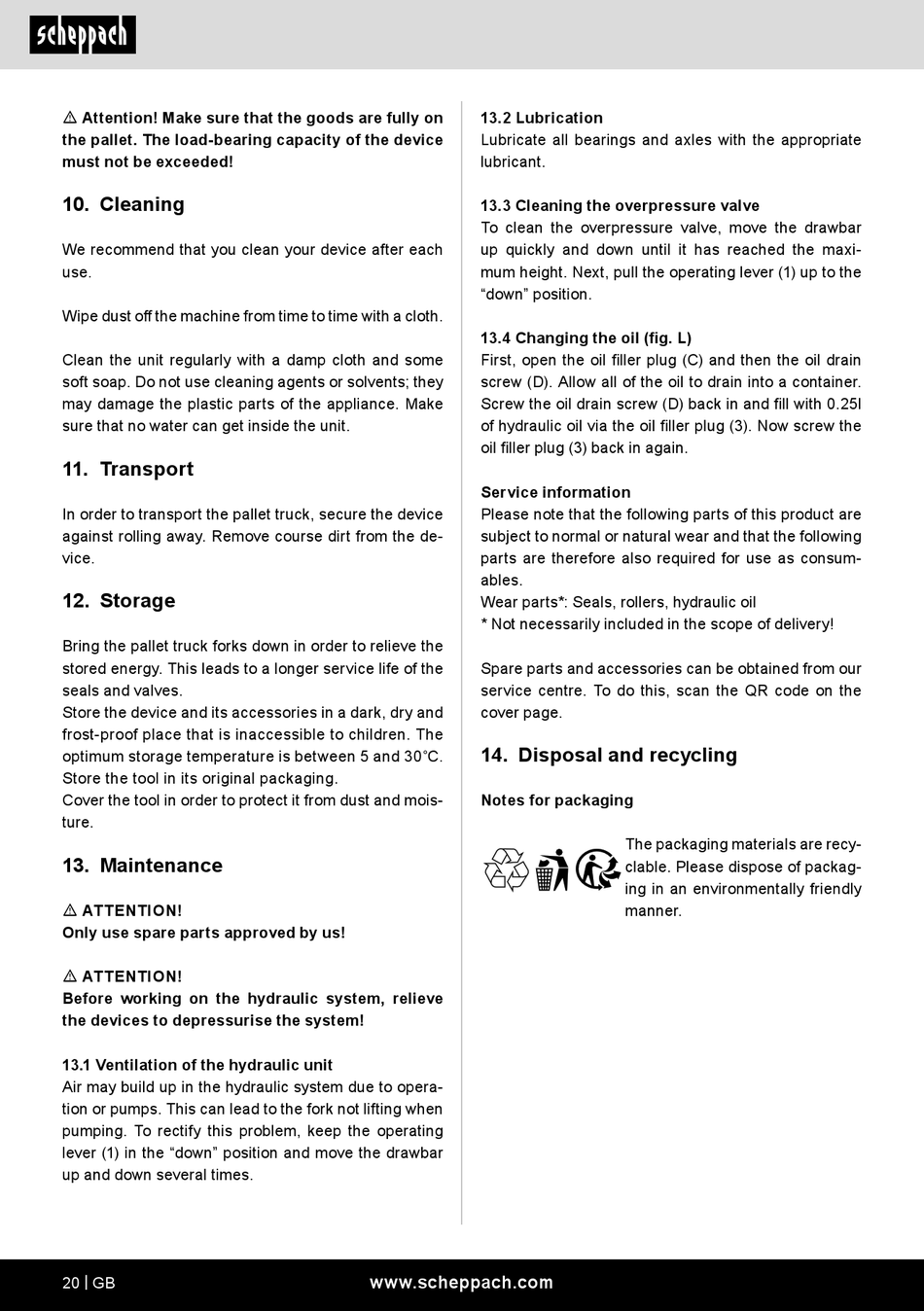

Scheppach HW2500 Original Bedienungsanleitung Seite 20

m Attention! Make sure that the goods are fully on
the pallet. The load-bearing capacity of the device
must not be exceeded!
10. Cleaning
We recommend that you clean your device after each
use.
Wipe dust off the machine from time to time with a cloth.
Clean the unit regularly with a damp cloth and some
soft soap. Do not use cleaning agents or solvents; they
may damage the plastic parts of the appliance. Make
sure that no water can get inside the unit.
11. Transport
In order to transport the pallet truck, secure the device
against rolling away. Remove course dirt from the de-
vice.
12. Storage
Bring the pallet truck forks down in order to relieve the
stored energy. This leads to a longer service life of the
seals and valves.
Store the device and its accessories in a dark, dry and
frost-proof place that is inaccessible to children. The
optimum storage temperature is between 5 and 30˚C.
Store the tool in its original packaging.
Cover the tool in order to protect it from dust and mois-
ture.
13. Maintenance
m ATTENTION!
Only use spare parts approved by us!
m ATTENTION!
Before working on the hydraulic system, relieve
the devices to depressurise the system!
13.1 Ventilation of the hydraulic unit
Air may build up in the hydraulic system due to opera-
tion or pumps. This can lead to the fork not lifting when
pumping. To rectify this problem, keep the operating
lever (1) in the "down" position and move the drawbar
up and down several times.
20 | GB
13.2 Lubrication
Lubricate all bearings and axles with the appropriate
lubricant.
13.3 Cleaning the overpressure valve
To clean the overpressure valve, move the drawbar
up quickly and down until it has reached the maxi-
mum height. Next, pull the operating lever (1) up to the
"down" position.
13.4 Changing the oil (fig. L)
First, open the oil filler plug (C) and then the oil drain
screw (D). Allow all of the oil to drain into a container.
Screw the oil drain screw (D) back in and fill with 0.25l
of hydraulic oil via the oil filler plug (3). Now screw the
oil filler plug (3) back in again.
Service information
Please note that the following parts of this product are
subject to normal or natural wear and that the following
parts are therefore also required for use as consum-
ables.
Wear parts*: Seals, rollers, hydraulic oil
* Not necessarily included in the scope of delivery!
Spare parts and accessories can be obtained from our
service centre. To do this, scan the QR code on the
cover page.
14. Disposal and recycling
Notes for packaging
www.scheppach.com
The packaging materials are recy-
clable. Please dispose of packag-
ing in an environmentally friendly
manner.
