Smart Home
Menu to configure interface parameters to advanced devices that can be integrated into the system.
Domina PRO home automation monitor address configuration: home automation monitor web server address. Press the "Default Address" button to reset the address to the default
parameters 192.168.1.10. After each change, press the "Save" button to confirm.
Domina SMART root node address configuration: address of the device configured as root node in the DOMINA SMART system. Press the "Default Address" button to reset the address to the
default parameters 192.168.1.12. The address of the root node can be found via the AVE Cloud APP. This is done by checking the addresses of the devices in the field.
Anti-intrusion alarm control unit address configuration: address of the anti-intrusion alarm control unit (AF927 range) installed on the system. Press the "Default Address" button to reset
the address to the default parameters 192.168.1.11. After each change, press the "Save" button to confirm.
KNX PRO address configuration: address of the KNX web server to be accessed in order to view the web pages generated by it. The address displayed is purely indicative:
the identification of the address assigned to the KNX web server is unrelated to AVE products. Press the "Default Address" button to reset the address to the default parameters 192.168.1.13.
ATTENTION: The AVE VI2F-PIT7WF touch screen is a viewer of a web page generated by a KNX web server. AVE accepts no liability for KNX products installed in the system that are not
manufactured by AVE.
Information: device information display page (operating system version, network information, etc...).
8) INTERFACING WITH AVEBUS HOME AUTOMATION AND ANTI-INTRUSION SYSTEM
The touch screens can be interfaced with AVEBUS home automation systems and AF927 range anti-intrusion control units via data network and Wi-Fi connection.
The touch screens are pre-set to communicate with the home automation system and the intruder alarm system (if activated).
The default parameters of the two systems are:
a. HOME AUTOMATION SYSTEM: http://192.168.1.10
b. ANTI-INTRUSION SYSTEM: http://192.168.1.11
It is always possible to restore the system's default parameters from the interface configuration page.
Interfacing allows:
HOME AUTOMATION SYSTEM (
):
1
• manage all home automation system features (lights, dimmers, roller shutters, temperature control, etc.).
• receive alarms from the home automation system, silence them, delete them.
ANTI-INTRUSION SYSTEM (
):
1
• manage all the features of the anti-intrusion system (activation, deactivation, partialisation, etc.).
• receive alarms from the anti-intrusion system; at the same time as an alarm tone is emitted, the LED bar begins to flash red.
Note(
): the touch screen is only a system display. The home automation monitor (web server) or the anti-intrusion alarm control unit manages all system functions and security. The absence of the touch
1
screen does not affect the operation of the home automation and anti-intrusion detection systems, which will continue to manage their respective systems.
9) IP CAMERA ASSOCIATION
The system can display IP cameras (max. 64) if they are associated with the device. By accessing the "Surveillance" menu and then pressing the "View IP cameras" button, it is possible to:
Add a new IP camera:
Camera name: name associated with the camera;
RSTP address of the camera:
Add: button to confirm the operation;
Import the profile from the microSD:
Change the parameters of an already inserted IP camera: go to the parameter to be changed, make the change and press the "Save" button.
Camera list: the list of cameras associated with the device is displayed. Press a camera icon to open the page displaying the images transmitted by that camera. To close the page, press the red button.
Press the button depicting two arrows to move between the various cameras
10) PAIRING THE AVE VIDEO V44 APP
The device can be paired with a mobile phone to answer incoming calls from an iOS or Android operating system. Download the AVE VIDEO V44 APP from the APP STORE or GOOGLE PLAY and register
the new user. To pair the mobile phone, simply enter the settings menu and then the "Cloud Intercom Settings" menu. Press "Add new user" and point your device's camera at the QR code.
11) ANSWERING A CALL

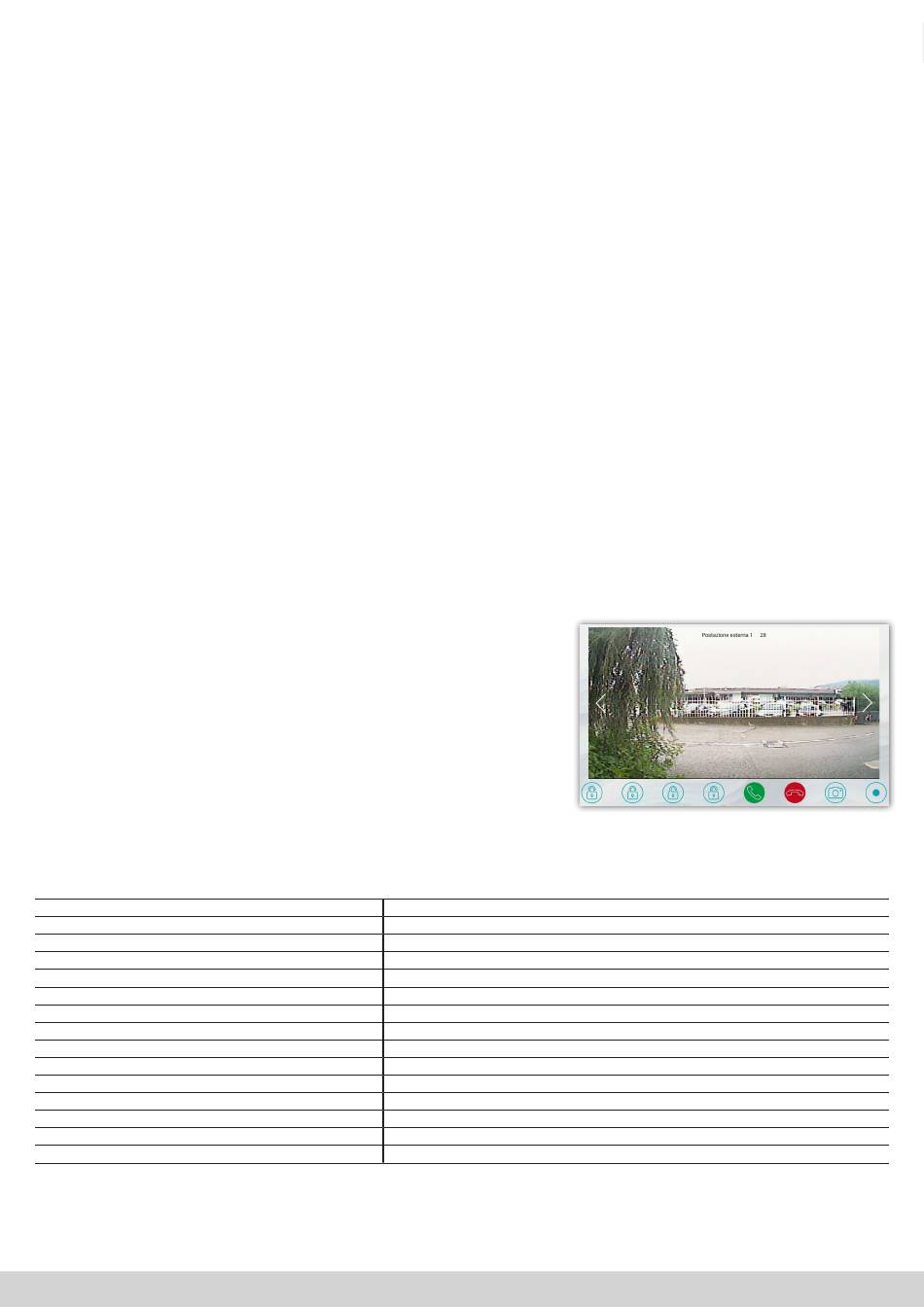

When a call arrives from an outdoor station, the internal monitor will start to ring
and the following screen will appear:
From which it is possible to:
- Answer the incoming call by pressing button 5.
- Unlock the electric locks during the conversation:
Unlock 1 (power relay): press button 1
Unlock 2 (clean contact relay): press button 2
Unlock 3 (auxiliary relay with clean contact): press button 3
Unlock 4 (auxiliary relay with clean contact): press button 4
Five seconds after releasing an electric lock, the device automatically returns to the home page.
Note1: buttons 3 and 4 become visible only if activated in the appropriate menu described subsequently.
Note2: the management of unlock #4 is active in devices with MCU ver. 1.07 and SW ver. 1.7.1 or later. Devices with
versions earlier than those listed above can
manage a maximum of 3 gates.
- Close/reject a call by pressing button 6.
- Change the volume level of the call by pressing in the centre of the screen and then using the volume bar.
- During the call, pressing button takes a photo from the outdoor station camera.
- During a call, pressing button records a video; for this you need to install an SD card in the device.
12) RESTORE DEFAULT PARAMETERS
To reset the device to its factory parameters, go to the settings/Advanced parameters menu, enter the password (default 222222) and press OK. Then press the Factory Reset button and confirm.
Attention: resetting the factory parameters deletes all the product configuration.
13) TECHNICAL CHARACTERISTICS
Operating voltage
Maximum operating voltage
Absorption during operation
Absorption during stand-by
Dimensions (L x H x D)
LCD size
Resolution
Environmental class as per EN 62820-1-1
Operating temperature
Maximum altitude
Maximum number of devices that may be installed in each apartment
Maximum number of devices that can be installed
Installation
Protection rating
SD card
24Vcc
32Vcc
300 mA max @ 30 VDC
150 mA max @ 30 VDC
179 x 179 x 25 mm
7 inches 16/9
1024 x 600 pixels
CLASS III
From -10 °C to +55 °C
2000 m a.s.l.
4 (if more than one device is installed, the local power supply VI2F-ALI600MA must be provided for each of them)
128
On 3-module boxes, using the bracket provided
IP20 (IP40 when installed)
2 – 32 GB (not supplied)
6
