Adjusting the compressed air
Note: The device is designed for an operating pres-
sure of up to 6.3 bar and a compressor with an air
volume of at least the value specified in the technical
data. When setting the air pressure, please bear in
mind that the pressure drops by approx. 0.6 bar for a
hose length of 10 m and an inner diameter of 9 mm.
• Use only filtered, lubricated and regulated com-
pressed air.

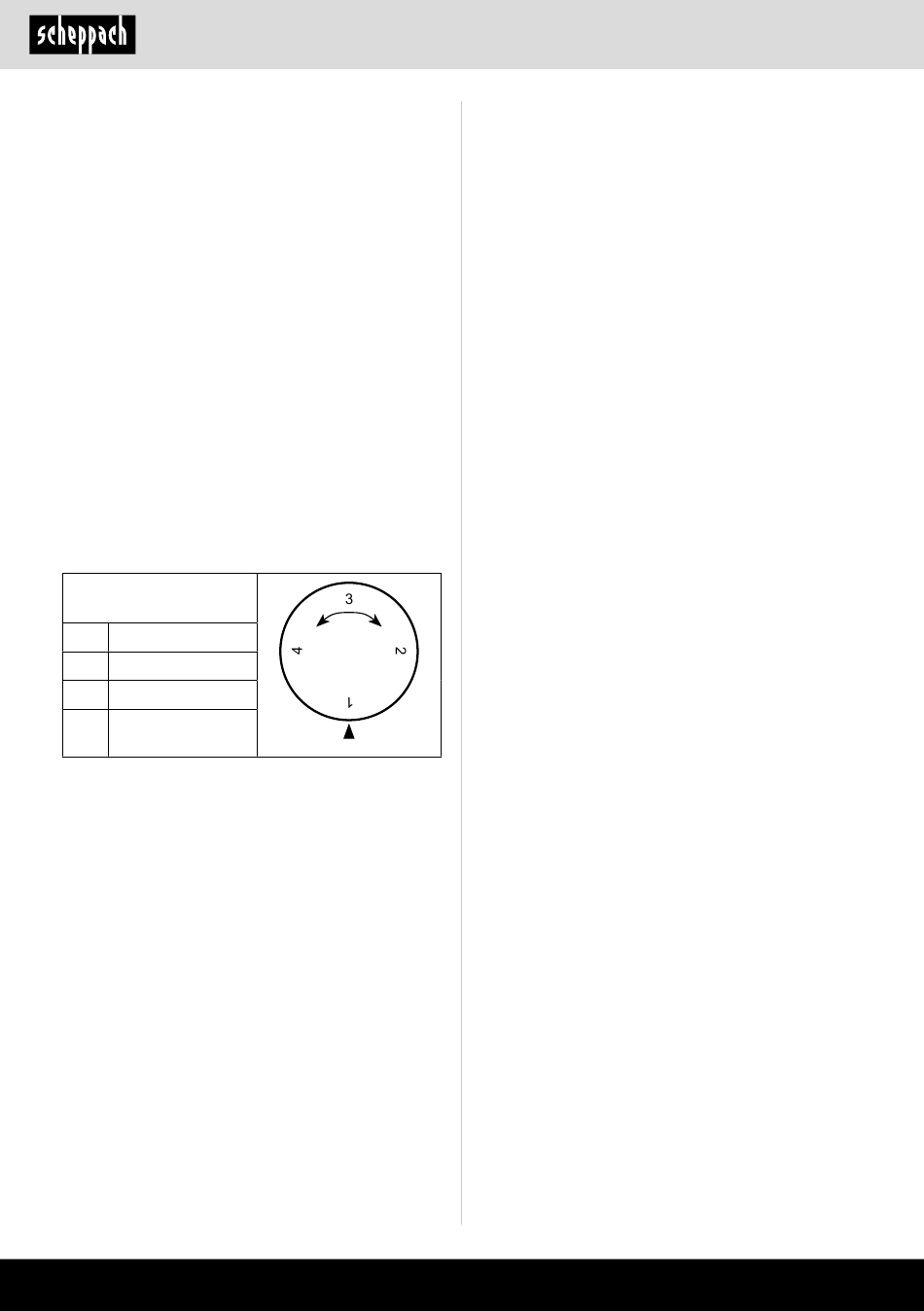

Adjusting the torque
• Select the appropriate torque range on the torque
control knob (3) by pushing it towards the housing
and turning it until it engages in the desired position.
• Make sure that the working pressure of the com-
pressor is between 5 and 6.3 bar.
Note: The optimum pressure is 6.3 bar. If the pressure
is only 5 bar or if the air flow is insufficient, the maxi-
mum torque cannot be achieved.
Position
1
(weak, min.)
2
(normal)
3
(strong)
4
(extra strong,
max.)
Start-up
• Press the trigger (4) to operate the device.
• Release the trigger (4) to switch off the device.
Changing the direction of rotation
• ATTENTION! The device must come to a complete
standstill before you change the direction of rota-
tion.
• ATTENTION! A machine turning in the opposite di-
rection to the expected direction can be dangerous.
Pay attention to what you are doing and always be
careful. Note: The impact screwdriver is designed
for right-hand/left-hand rotation. You can change
the direction of rotation of the impact screwdriver
with the direction selector pin (6).
• Pull the direction selector pin forward in the direc-
tion of the marking "F" ("Forward / Fasten") to set
clockwise mode. Now you can tighten screws, for
example.
26 | GB
• Push the direction selector pin backwards in the direc-
Hold the device correctly
• Hold the device with both hands to ensure safe op-
After commissioning
When the work is done, the device must be discon-
nected from the compressed air connection (2).
• Switch the compressor off.
• To remove any residual compressed air, briefly pull
• Now pull the safety catch of the connection coupling
• Now detach the hose from the plug nipple (9).
9.
PUSH
• Clean the tool only with a dry cloth.
• Never use liquids such as petrol, solvents or water
• No liquids must be allowed to enter the interior of
10. Storage
Store the device and its accessories in a dark, dry and
frost-free place that is inaccessible to children. The
optimum storage temperature is between 5 and 30 ˚C.
Keep the tool in its original packaging. Cover the tool
to protect it from dust or moisture. Store the operating
manual with the tool.
11. Maintenance
ATTENTION! Maintenance may only be carried out
by instructed persons. A long service life and trou-
ble-free operation of this quality product is guaranteed
by observing the maintenance instructions given here.
• Disconnect the device from the compressed air
• Check the condition of your consumables and ac-
