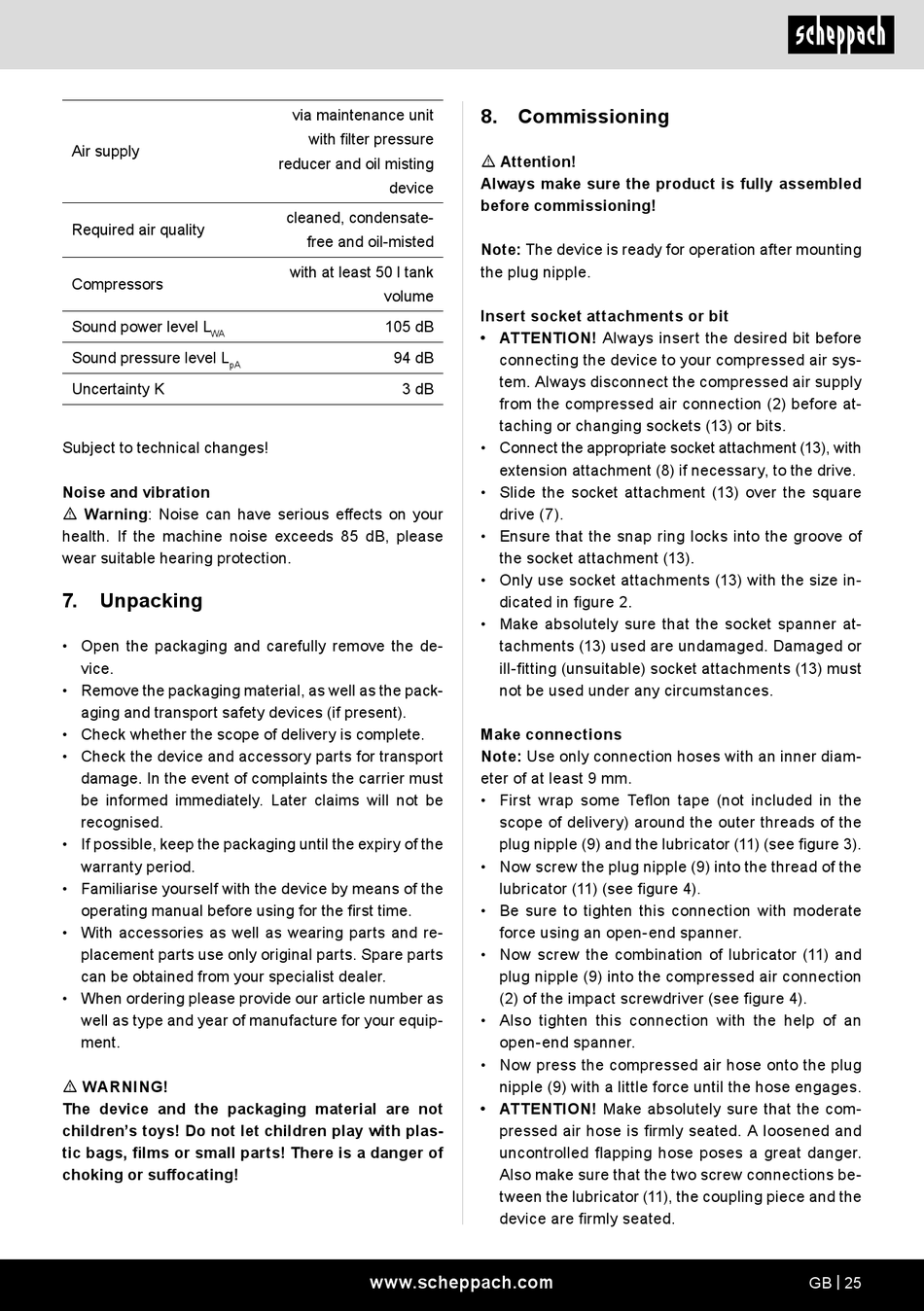

Air supply
Required air quality
Compressors
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
Subject to technical changes!
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
7. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the device by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
via maintenance unit
with filter pressure
reducer and oil misting
device
cleaned, condensate-
free and oil-misted
with at least 50 l tank
volume
105 dB
94 dB
3 dB
www.scheppach.com
8. Commissioning
m Attention!
Always make sure the product is fully assembled
before commissioning!
Note: The device is ready for operation after mounting
the plug nipple.
Insert socket attachments or bit
• ATTENTION! Always insert the desired bit before
connecting the device to your compressed air sys-
tem. Always disconnect the compressed air supply
from the compressed air connection (2) before at-
taching or changing sockets (13) or bits.
• Connect the appropriate socket attachment (13), with
extension attachment (8) if necessary, to the drive.
• Slide the socket attachment (13) over the square
drive (7).
• Ensure that the snap ring locks into the groove of
the socket attachment (13).
• Only use socket attachments (13) with the size in-
dicated in figure 2.
• Make absolutely sure that the socket spanner at-
tachments (13) used are undamaged. Damaged or
ill-fitting (unsuitable) socket attachments (13) must
not be used under any circumstances.
Make connections
Note: Use only connection hoses with an inner diam-
eter of at least 9 mm.
• First wrap some Teflon tape (not included in the
scope of delivery) around the outer threads of the
plug nipple (9) and the lubricator (11) (see figure 3).
• Now screw the plug nipple (9) into the thread of the
lubricator (11) (see figure 4).
• Be sure to tighten this connection with moderate
force using an open-end spanner.
• Now screw the combination of lubricator (11) and
plug nipple (9) into the compressed air connection
(2) of the impact screwdriver (see figure 4).
• Also tighten this connection with the help of an
open-end spanner.
• Now press the compressed air hose onto the plug
nipple (9) with a little force until the hose engages.
• ATTENTION! Make absolutely sure that the com-
pressed air hose is firmly seated. A loosened and
uncontrolled flapping hose poses a great danger.
Also make sure that the two screw connections be-
tween the lubricator (11), the coupling piece and the
device are firmly seated.
