Create WIND ROUND Bedienungsanleitung Seite 8

• Insert stop pin into top of extended downrod and raise hanging ball.
• Be sure that the stop pin aligns with the slots on the inside of the hanging ball, tighten
the fixing screw securely.
Tip: To prepare for threading electrical wires through the downrod, apply a small piece of
electrical tape to the ends of the electrical wires. This will keep the wires together when
threading them through the downrod.
• Loosen the fixing screws and nut at the top of the motor housing. Remove the pin and
bolt from the downrod (if you have not already done so). Slide the downrod through the
canopy.
• Tread electrical wires through the downrod and pull extra wire slack from the upper end
of the downrod.
• Place the downrod into the motor housing yoke and reinsert the pin and bolt that were
previously removed. Tighten the fixing screws and nut securely.
• Lower the canopy to the motor housing.

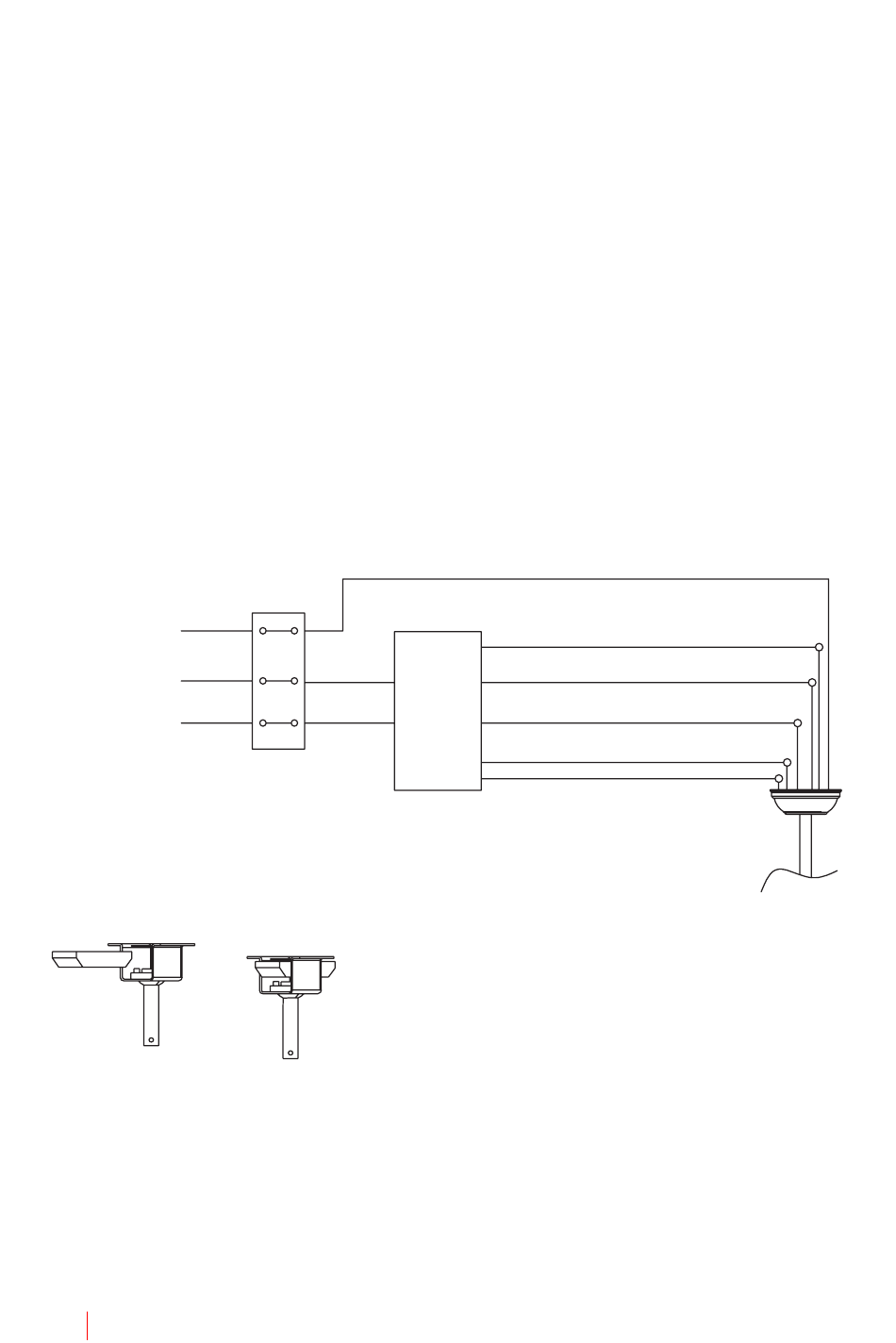

RE MO TE CONTROL CO NNECTIO N
Make the connection between the receiver wires and the fan motor wires following the color
indications. Make sure the connection is firm.
Ground wire
L
N
RE MO TE CONTROL RECE IVE R PL ACE ME NT
8 E NGL I SH
Ground wire (green / yellow)
L input
(black)
Remote
control
receiver
Input N
(white)
Neutral N (white)
L clear (blue)
DC motor L (gray)
DC motor L (pink)
DC motor L (red)
