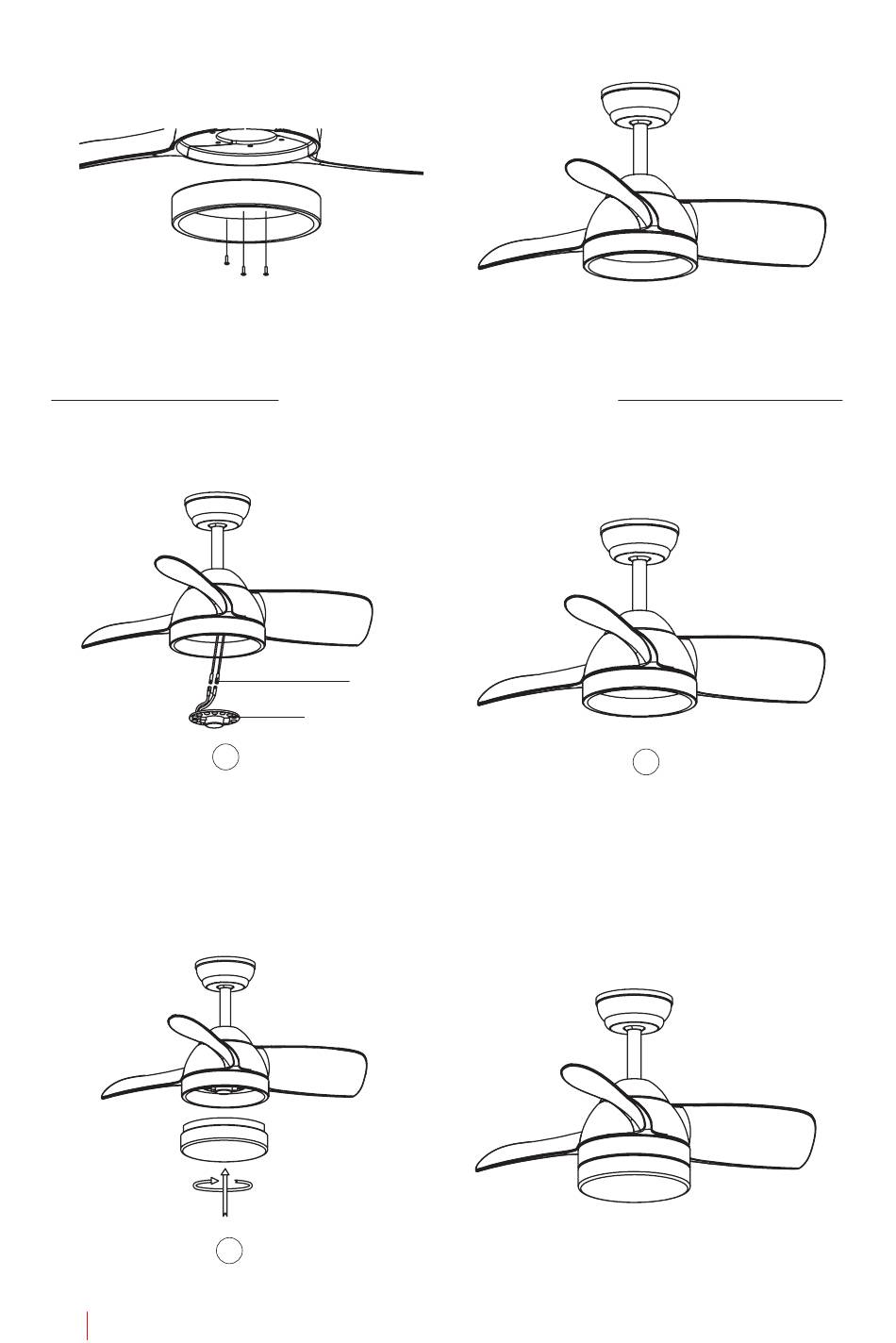

CO NNECTI ONS PANE L AS SE M B LY
Hook the connection plate to the bottom of the fan by inserting the screw heads into the
designated holes. Screw in the screws and then secure.
DECO R ATI V E COVE R AS SE M B LY
Connect the single-pin plugs on the backplane with those on the LED panel. The LED panel
is magnetized so it will be attached to the patch panel simply by snapping them together.
Tip: While installing or removing the LED board, keep the insulation pads intact carefully.
Turning the set screws too hard or too quickly will damage the insulation pads.
Screw the lampshade back onto the connection plate.
10
E NGL I SH
CEILING FAN WITH LED LIGHT
Pin
LED panel
1
3
2
